AZZA Pyramid Mini 806 - Mini-ITX tower - windowed side panel (tempered glass) - no power supply (SFX12V) - USB/Audio | CSAZ-806
Product Features
- Show-stopping design
Dare to be different; the PYRAMID 806 MINI completely transforms the conventional workspace into a spectacular one. With its quality design and premium finish, the chassis grants users the ability to create performance-based builds that are unique in every way. - Small but compatible
Inspired by the smaller ITX form factor, the PYRAMID 806 MINI allows for powerful components to be easily installed without worrying about clearance or airflow. - Multi-level easy access

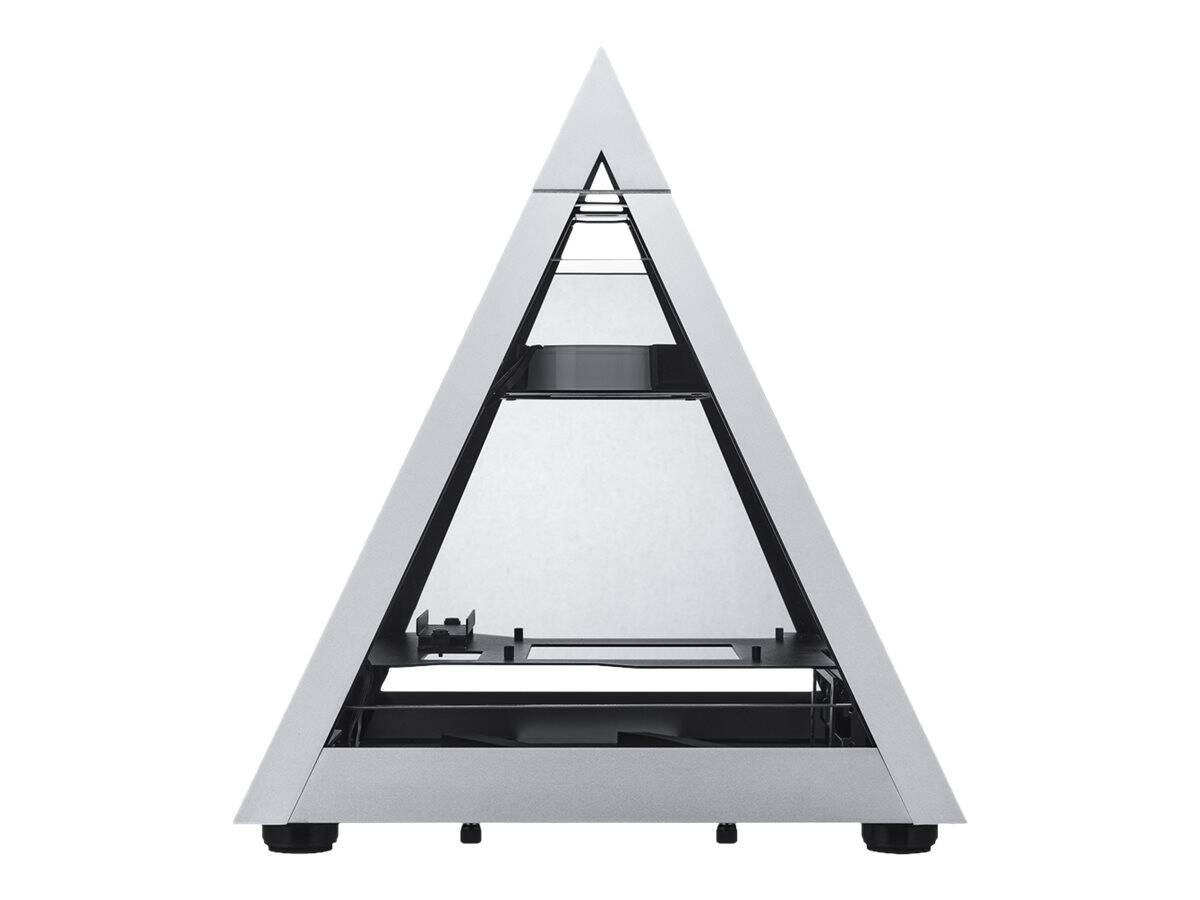

Thinking outside the box: The PYRAMID 806 MINI features a multi-level design for easy access to all your components. The bottom level is designated to the graphics card and power supply, the second level for the ITX motherboard and SSD storage, and the third level for the cooling unit. Not only does this design offer stylistic and organizational enhancements, but it also makes installing and upgrading components easier than ever. - Aluminum and glass design

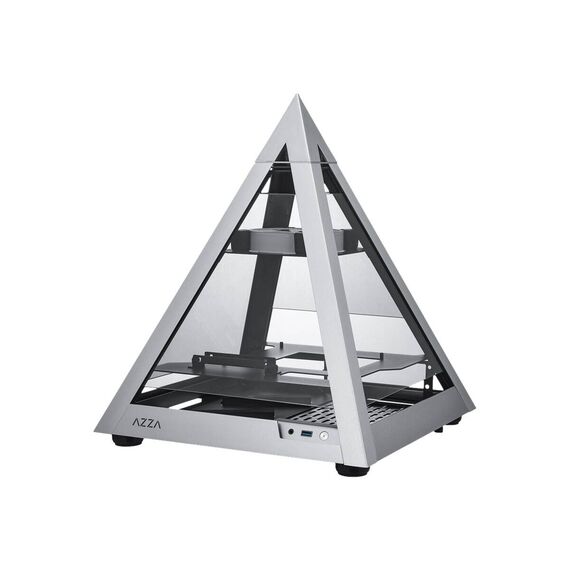

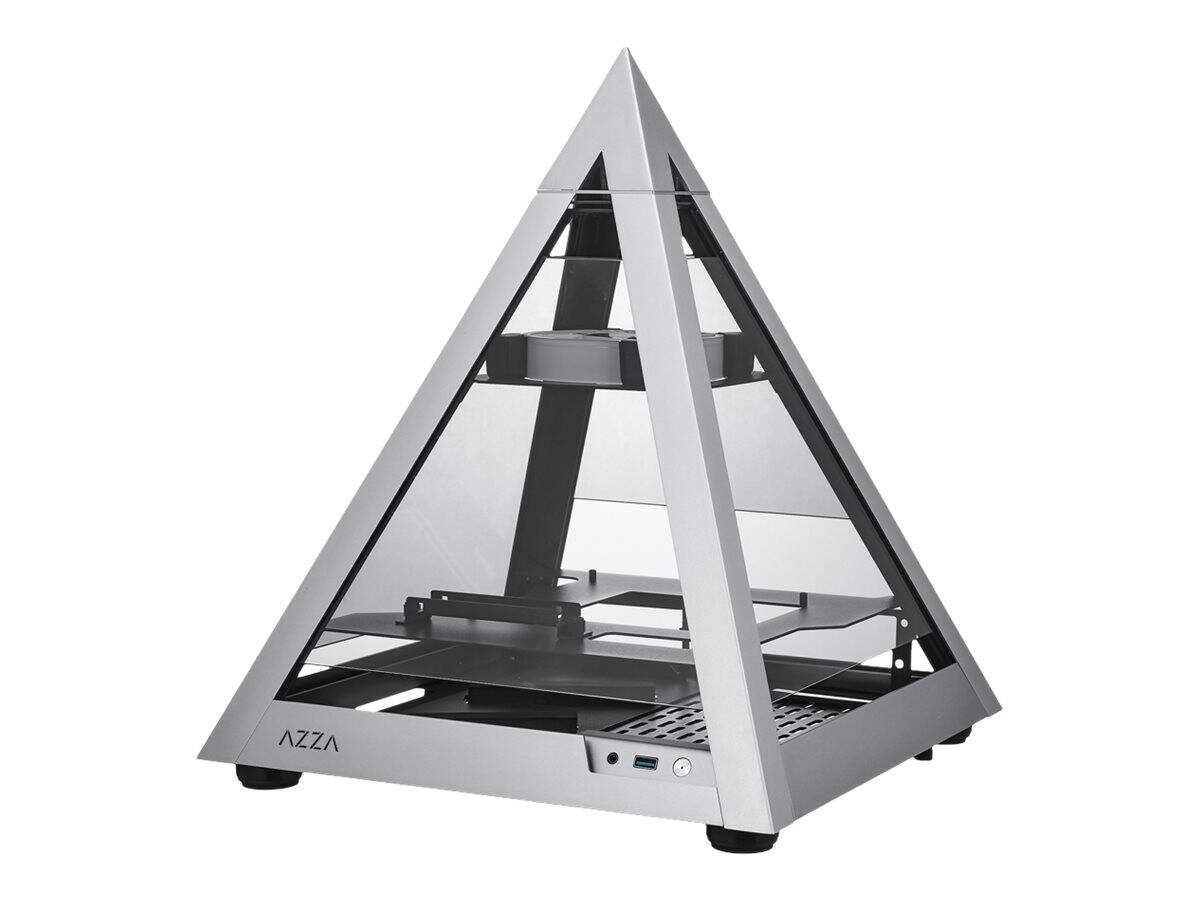

The PYRAMID MINI 806's smooth aluminum exterior and huge glass panels provide a stylistic and elegant design that makes it a great conversational piece.
The 4-sided glass panels provide a complete view for your build at any angle. - Refined front panel control

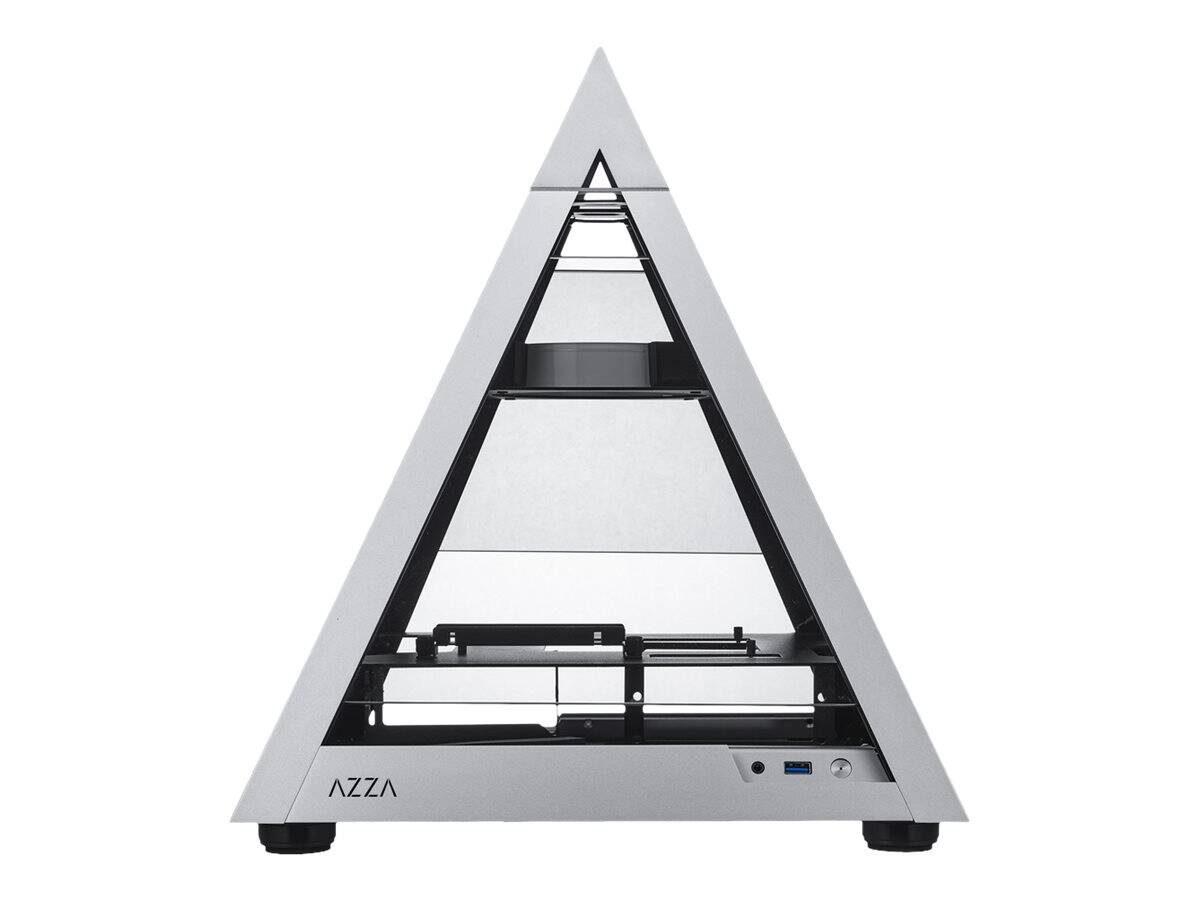

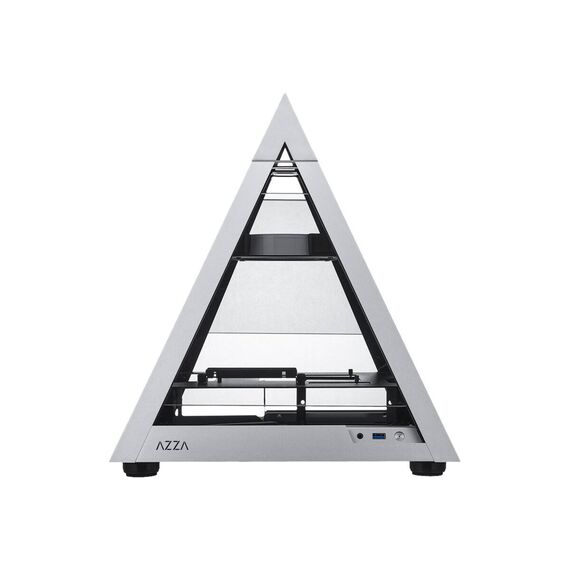

The front panel control is tucked neatly at the bottom corner and has a power/reset button, USB 3.0, and audio jack for effortless connectivity and minimal cable routing. - Ease of access

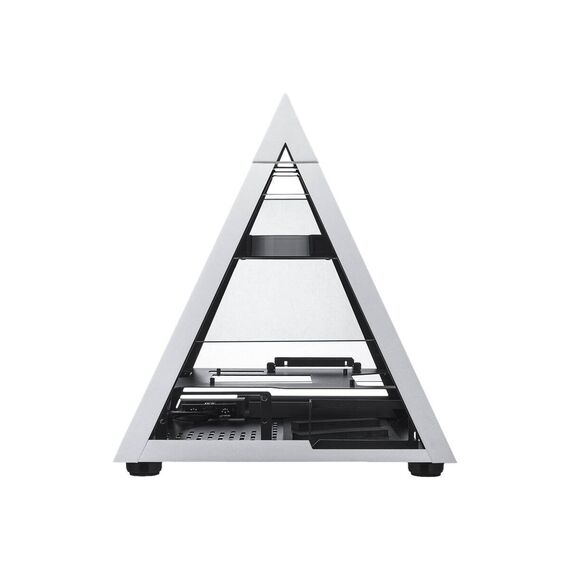

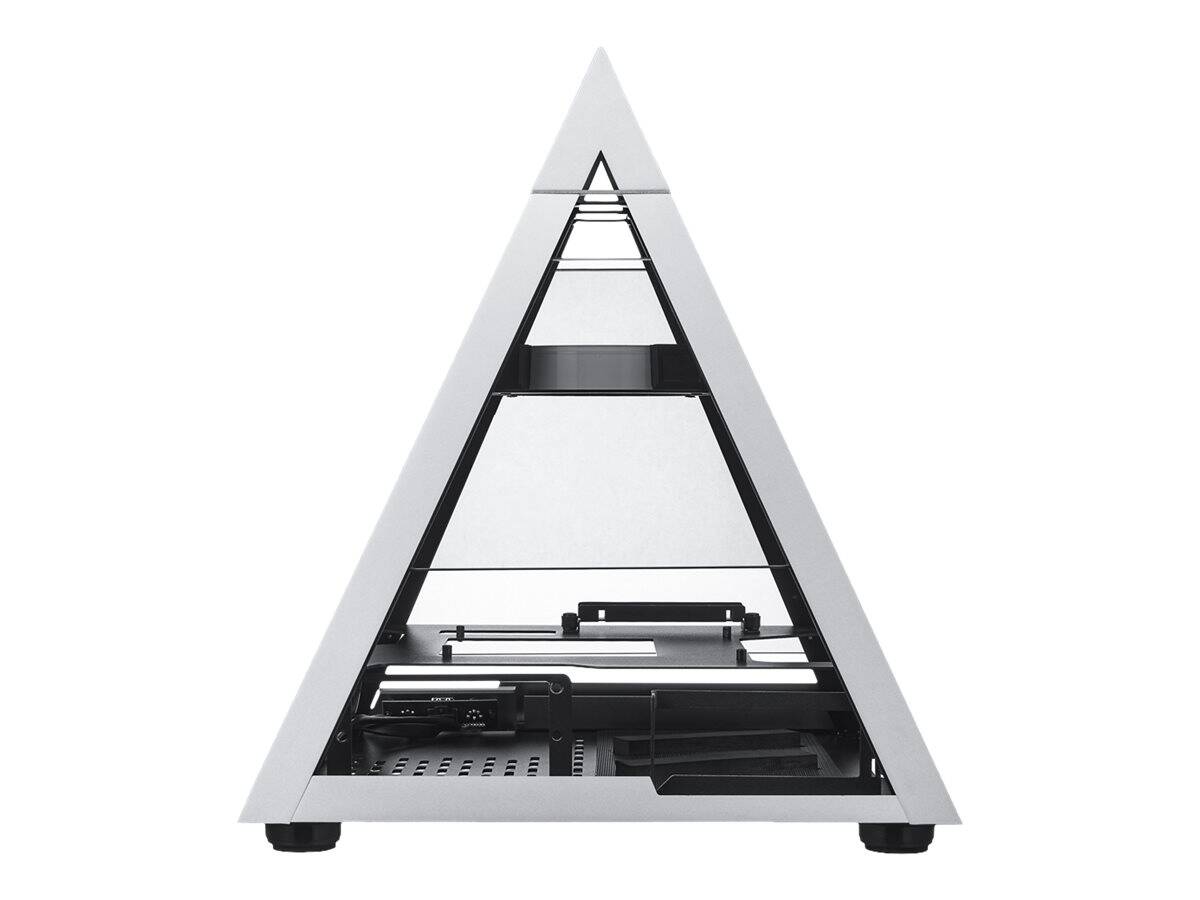

The rear side provides easy access to the motherboard, graphics card, and power supply. Connecting peripherals is simple and painless. - Optimal airflow
For greater heat dissipation, special cut-outs from the glass panels deliver unrestricted airflow and ventilation from every side of the chassis.
Special Fetures
- Show-stopping design
- Small but compatible
- Multi-level easy access
- Aluminum and glass design
- Refined front panel control
- Ease of access
- Optimal airflow
Product Specification
Form Factor | Mini-ITX tower |
Windowed Side Panel | Yes |
Windowed Side Panel Material | Tempered glass |
Max Mainboard Size | Mini ITX |
Supported Motherboards | Mini-ITX |
Internal Bays Qty | 2 |
Product Material | Aluminium, SPCC |
Cooling System | Top: 120 mm fan x 1 / Hurricane II Digital RGB Fan |
CPU Cooler Max Height | 85 mm |
Video Card Max Length | 280 mm |
System Cabinet Features | Supports 120 mm radiator in top, 4 tempered glass side panels |
Expansion / Connectivity | |
Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" |
Expansion Slots | 2 |
Interfaces | 1 x USB 3.0 ¦ 1 x audio - mini-jack |
Miscellaneous | |
Included Accessories | PCIe extension cable (20 cm) |
Power | |
Power Device | No power supply |
Specification Compliance | SFX12V |
Dimensions & Weight | |
Width | 36.8 cm |
Depth | 36.8 cm |
Height | 43.5 cm |
Weight | 6.3 kg |
