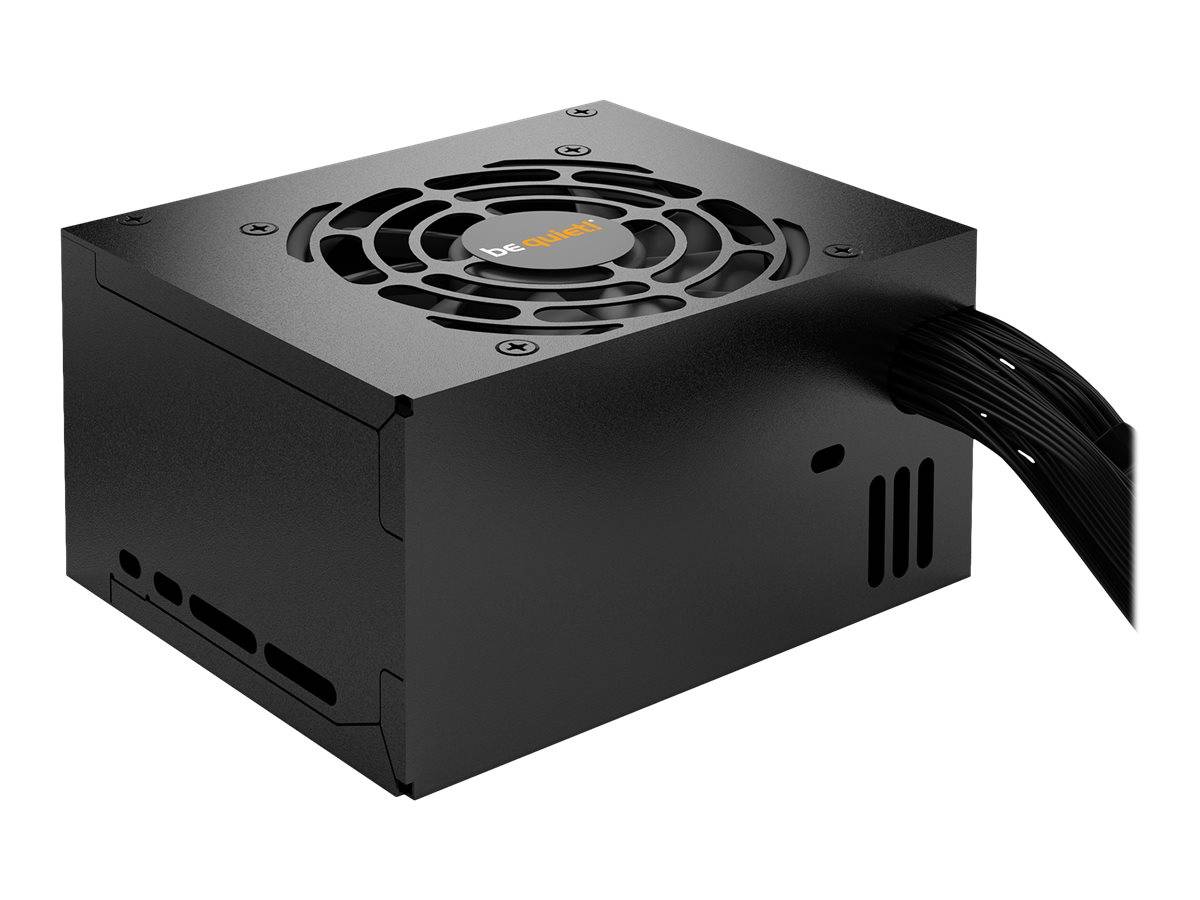

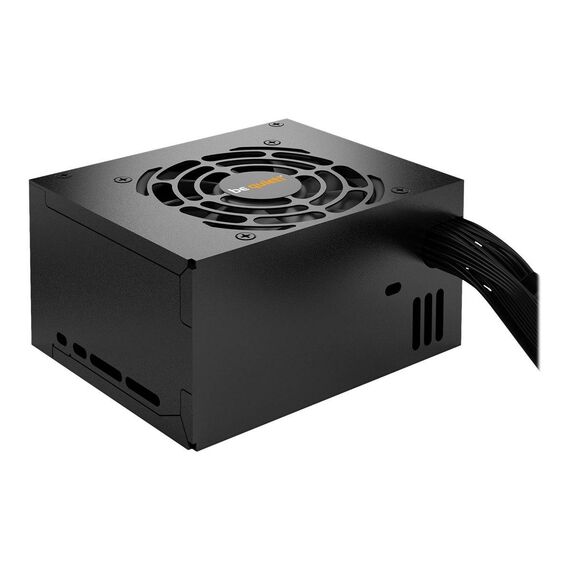

be quiet! SFX Power 3 / Power supply (internal) / SFX12V 3.42/ EPS12V 2.92 / 80 PLUS Bronze / AC 100-240 V / 300 Watt / active PFC / Europe | BN320
Please sign in so that we can notify you about a reply
Product Features
- Strong 12V rail
A PCIe connector provides power for a demanding graphics card. Safety protections defend against overcurrents, over- and undervoltages, short circuits and overloads, thus keeping your valuable components safe. - 300 Watts continuous power output
The SFX Power 3 can deliver 300W of continuous power. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load. - Quiet and efficient operation
The high-quality temperature-controlled 80mm fan allows quiet operations of max. 29.4dB(A). The 80 PLUS Bronze certification with an efficiency rating of up to 89.2% is convincing evidence of this PSU's power saving operation.
Special Features
- Strong 12V rail with 300W of continuous power
- 6+2 pin PCIe connector for GPU support
- High-quality temperature-controlled 80mm fan for quiet operation of max. 29.4dB(A)
- Sleeved or flat black cables up to 60cm
- 80 PLUS Bronze efficiency (up to 89.2%)
- Meets the latest safety and efficiency requirements
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | SFX12V 3.42/ EPS12V 2.92 |
| PSU Form Factor | SFX |
| Localisation | Europe |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 4 PIN internal power ¦ 3 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 300 Watt |
| Output Current | +3.3V - 16 A ¦ +5V - 16 A ¦ +12V1 - 25 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 89.2% |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | Miscellaneous |
| Cooling System | 80 mm fan |
| Features | Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail |
| Compliant Standards | EAC, TUV Rheinland, ErP 2014 Ready |
| Environmental Standards | Environmental Standards |
| ENERGY STAR | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Sound Emission | 29.4 dBA |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12.5 cm |
| Depth | 10 cm |
| Height | 6.35 cm |
Features - be quiet! - BN320
More Details
Product Code
04:371547
EAN Code
4260052188262
Manufacturer
be quiet!
