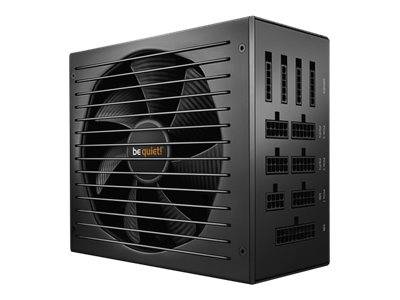

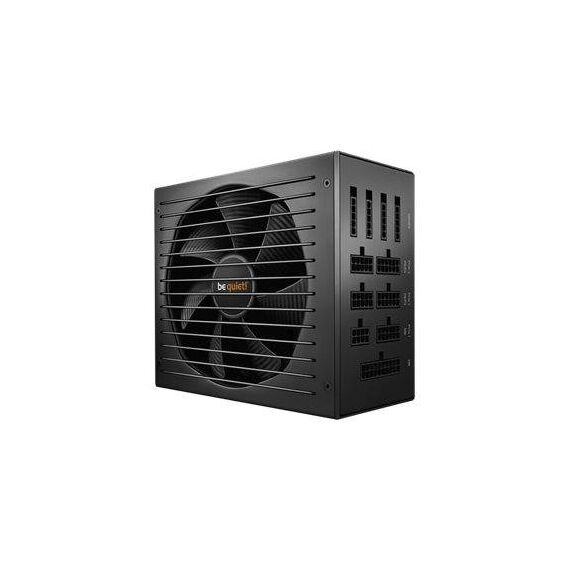

be quiet! Straight Power 11 1000W / Power supply / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Gold / AC 100-240 V / 1000 Watt / active PFC / black | BN285

Brand: be quiet!

be quiet! Straight Power 11 1000W Power supply | BN285

Write a review

CODE (SKU):

BN285

€298.01

(€354.63 inc. VAT)

Availability: 27 item(s)

Standard delivery within 3 to 8 business days.

+ −

Ask a question

Find similar

Delivery

Payment options

Product Code07:102007 EAN Code4260052185803 Manufacturerbe quiet!

Description
Features
Reviews

be quiet! Straight Power 11 1000W / Power supply / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Gold / AC 100-240 V / 1000 Watt / active PFC / black | BN285

Description

be quiet! Straight Power 11 1000W raises the bar for systems that demand virtually inaudible operation without power quality compromises.

be quiet! Straight Power 11 1000W / Power supply/ 80 PLUS Gold / 1000Watt | BN285

Special Features

Virtually inaudible SilentWings 3 135mm fan
Funnel-shaped fan opening of the PSU case for high airflow intake
Wire-free inside the PSU on the DC side for enhanced cooling and longevity
Full cable management for maximum build flexibility
80PLUS Gold efficiency (up to 93%)
Powerful multi-GPU support with six PCI-Express connectors
Japanese 105°C-rated capacitors ensure stability and reliability
ErP and Energy Star 6.1 ready

Product Specification

Device Type	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance	ATX12V 2.4/ EPS12V 2.92
PSU Form Factor	ATX
Colour	Black
Input Voltage	AC 100-240 V
Frequency Required	50 - 60 Hz
Power Output Connectors Details	1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 11 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector ¦ 1 x power 8 pin +12V
Output Voltage	+3.3, +5, ±12 V
Power Capacity	1000 Watt
Output Current	+3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 22 A ¦ +12V2 - 22 A ¦ +12V3 - 30 A ¦ +12V4 - 30 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A
Efficiency	93%
Power Factor (PF)	0.99
Modular Cable Management	Yes
80 PLUS Certification	80 PLUS Gold
Included Accessories	Screws, cable ties
Cables Included	Power cable - external - 1.5 m
MTBF	100,000 hours
Cooling System	135mm fan
Features	Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported, 4 x 12V rail, thermal protection, DC-DC technology, fluid dynamic bearing cooling fan, Synchronous Rectifier (SR) technology
Compliant Standards	BSMI, CB, FCC, cTUVus, ERP, EAC, RCM, TUV Rheinland, CU
ENERGY STAR	Yes
Service & Support	Limited warranty - 5 years
Max Operating Temperature	40 °C
Sound Emission	11.15 dBA
Width	15 cm
Depth	17 cm
Height	8.6 cm
Weight	1.85 kg
Shipping Width	24.8 cm
Shipping Depth	32.8 cm
Shipping Height	10.2 cm
Shipping Weight	3.57 kg
