BenQ LU960ST / DLP projector / laser / 3D / 5500 ANSI lumens / WUXGA (1920 x 1200) / 16:10 / 1080p / short-throw fixed lens / LAN | 9H.JN577.25E
Product Features
- Revolutionary laser technology
Extending its full line of revolutionary laser projectors, the world's No.1 DLP brand BenQ presents LU960ST, especially designed for short throw fixed lens installation and reserves installation flexibility to merge into limited space. - DLP technology for long-lasting vibrant color
BenQ laser projectors run on Academy Award-winning DLP technology to deliver long-lasting and reliable color for the life of the projector. The DLP chip is rated for 200,000 hours and will display stunning whites and accurate colors without the risk of yellowing over time. - Superior dustproofing for severe conditions with IP5X certification
BenQ laser projectors are designed with sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser package, and other optical components. This lock-and-key design hermetically seals the engine from dust to prolong projector lifespan. - High brightness and vivid clarity in bright ambient environments
LU960ST's 5500AL high brightness produces wondrous displays in bright, compact exhibition spaces with superb image quality. - WUXGA resolution for enhanced detail and expanded content
With an impressive WUXGA (1920 x 1200) native resolution that far exceeds Full HD 1080p, the BenQ LU960ST laser projector offers greater details and stunning image clarity when projecting high resolution images. - Cinematic grade 92% Rec.709 color coverage for optimal color performance
LU960ST's powerful laser projection utilizes a dual color wheel system to produce unparalleled color performance that achieves a 92% Rec.709 color coverage. By increasing color ratios and the purity of RGBY color, LU960ST dramatically enhances color saturation to ensure superior presentation quality. - Zoom and lens shift for mounting flexibility
The LU960ST features both a 1.1x zoom function and vertical/horizontal lens shift to enable you to mount the projector in a protected area, while still enabling you to have a fully aligned image on your screen. You can move the image up and down up to 62% of the screen height - and adjust the horizontal position by 24% for an off-axis mounting location. The zoom lens can enlarge or reduce the image to enable you to move your mounting position as much as a foot on a fourteen-foot-wide screen. - 360° and portrait projection accommodate different spaces
Laser technology guarantees reliable projection from any angle. Dynamic installation options such as 360° rotation and portrait applications, allows projection onto ceiling, walls, floors or angled signage.
Special Features
- Supports wide corner fit adjustment and precise square lens shift route with 0.77-0.84 TR short throw and 1.1x zoom
- SRGB Mode for 96% Rec 709 color accuracy
- Fast mode: Latency<17ms (@WUXGA/60Hz) response enables realistic simulation and gaming
- White balance calibration for seamless blending
- Dustproof sealed laser engine with 30,000 hours of life at full power
Product Specification
Device Type | DLP projector - 1080p |
3D Capable | Yes (3D glasses sold separately) |
Built-in Devices | Speaker |
Networking | Ethernet |
Projector | Projector |
Microdisplay | DarkChip 3 |
Brightness | 5500 ANSI lumens |
Contrast Ratio | 3000000:1 |
Image Size | 76.2 cm - 762 cm |
Throw Ratio | 0.77 - 0.84:1 |
Resolution | WUXGA - WUXGA (1920 x 1200) |
Native Aspect Ratio | 16:10 |
Colour Support | 1.07 billion colours |
Max Sync Rate (V x H) | 120 Hz x 135 kHz |
Bulb type | Laser |
Bulb life cycle | Up to 20000 hour(s) - normal mode ¦ Up to 38000 hour(s) - economic mode ¦ Up to 70000 hour(s) - dimming mode |
Controls & Adjustments | Keystone correction |
OSD Languages | Danish, Hindi, Hungarian, Czech, Croatian, Indonesian, Thai, Chinese (traditional), Chinese (simplified), English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Greek, Turkish, Arabic, Bulgarian, Romanian, Japanese, Korean |
Features | 360° projection, dust-sealed engine, 24/7 operation, 4K compatible, portrait projection, 92% Rec.709 coverage, Fast Mode, Dynamic Dimming, Custom Light Mode, digital shrink, corner fit, shift blanking, white balance calibration |
Lens | Lens |
Type | Short-throw fixed lens |
Zoom Factor | 1.1x |
Keystone Correction Direction | Horizontal, vertical |
Vertical Keystone Correction | -30 / +30 |
Horizontal Keystone Correction | -30 / +30 |
Lens Shift Direction | Horizontal, vertical |
Vertical Lens Shift | 62% / 62% |
Horizontal Lens Shift | 24% / 24% |
Video Input | Video Input |
TV System | NTSC, SECAM, PAL |
Video Interfaces | VGA, HDMI, DisplayPort, HDBaseT |
Video Modes | 480p, 720p, 1080i, 1080p, 480i, 576i, 576p |
LAN and Wireless Image Transferring Protocols | Wired LAN |
Speakers | Speakers |
Type | Integrated |
Sound Output Mode | Mono |
Output Power / Channel | 10 Watt |
Speakers | 1 x mixed channel |
Expansion / Connectivity | Expansion / Connectivity |

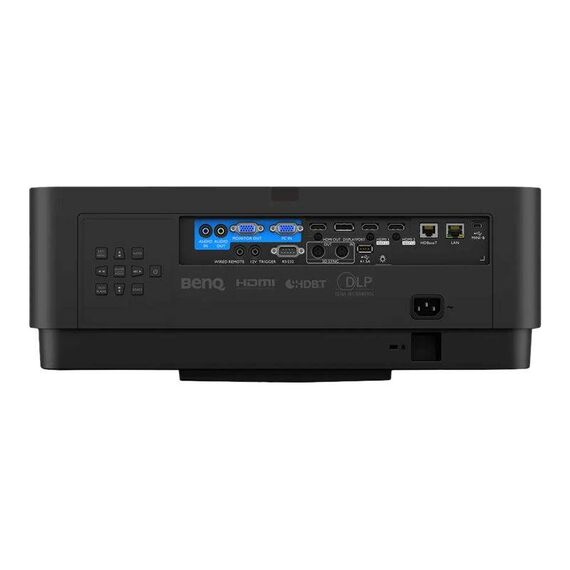

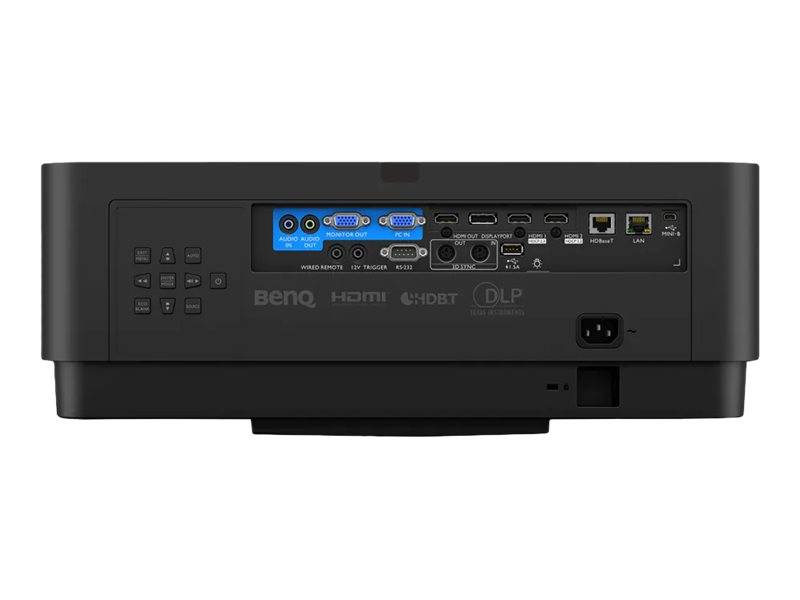

Interfaces | 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x USB - mini-USB Type B (management) ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x remote control input - mini-phone 3.5 mm ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x network - RJ-45 ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) (management) ¦ 1 x USB (power only) - 4 pin USB Type A (power only) ¦ 1 x HDMI output - 19 pin HDMI Type A ¦ 1 x DisplayPort - 20 pin DisplayPort ¦ 1 x HDBaseT - RJ-45 ¦ 1 x 12V programmable trigger - mini-phone 3.5 mm ¦ 1 x 3D Sync in ¦ 1 x 3D Sync out |
Miscellaneous | Miscellaneous |
Included Accessories | 2 x AA batteries, wireless remote control |
Security Features | Security lock slot (cable lock sold separately), security bar |
Security Slot Type | Kensington security slot |
Compliant Standards | HDCP 2.2 |
Power | Power |
Power Source | AC |
Voltage Required | AC 100-240 V |
Power Consumption Operational | 450 Watt |
Power Consumption Stand by | 0.5 Watt |
Dimensions & Weight | Dimensions & Weight |
Width | 47.96 cm |
Depth | 40.2 cm |
Height | 18.28 cm |
Weight | 12 kg |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Sound Emission | 37 dBA |
Sound Emission (Economic Mode) | 35 dBA |
