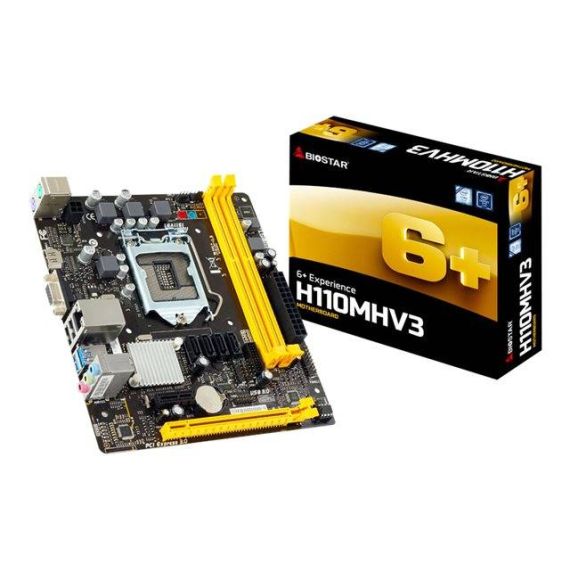

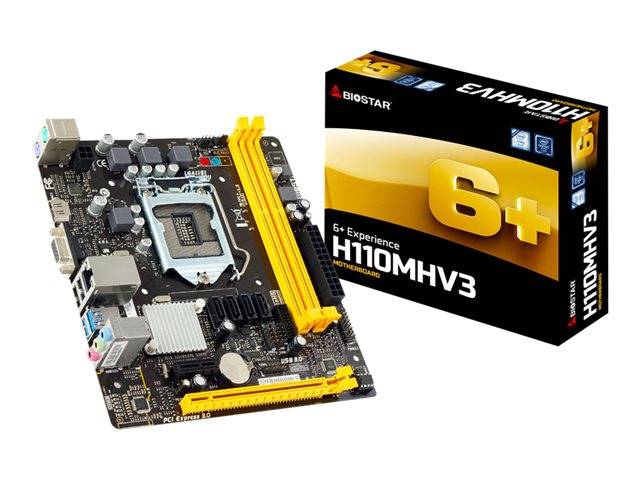

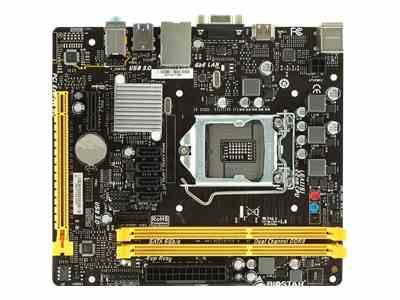

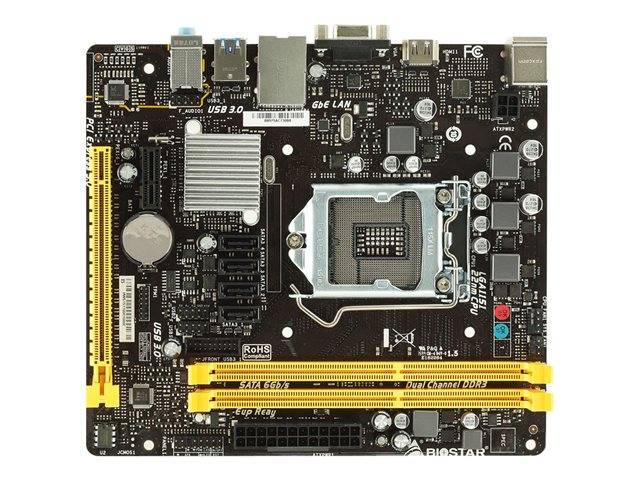

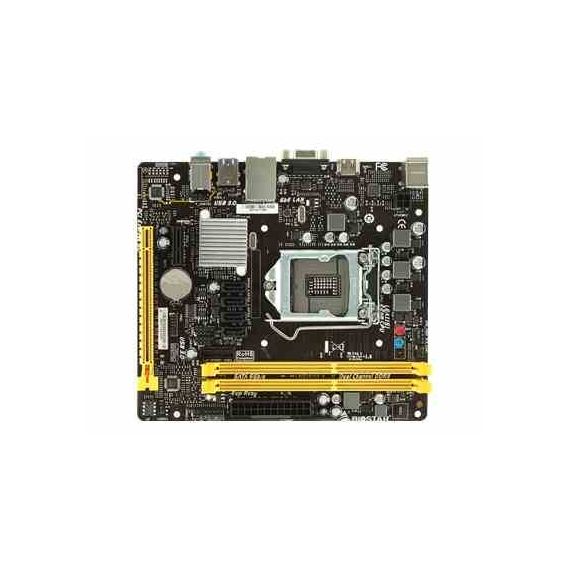

Biostar H110MHV3 / 7.X / motherboard / micro ATX / LGA1151 Socket / H110 / USB 3.0 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | H110MHV3
Biostar H110MHV3 / 7.X / motherboard / micro ATX / LGA1151 Socket / H110 / USB 3.0 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | H110MHV3
Description SmartSpeedLAN is a free software application which monitors and manages your PC's network behavior. With user-friendly GUI, it allows you to select and prioritize different types of network traffic, including gaming, media streaming, communications or web surfing. You can also set any specific applications, choosing to prioritize or block accordingly. SmartSpeedLAN can feature automatic management options that use adaptive networking intelligence to ensure that you are getting the best online experience possible. Special Features
Product features
|
Product Specification
Product Type | Motherboard - micro ATX |
Chipset Type | Intel H110 Express |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | Pentium, Core i5, Core i3, Core i7 (Maximum TDP 91 Watt) |
Max Size | 16 GB |
Technology | DDR3L |
Bus Clock | 1600 MHz, 1333 MHz, 1866 MHz (O.C.) |
Features | Dual channel memory architecture |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC887 |
Compliant Standards | High Definition Audio |
Network Controller | Realtek RTL8111H |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 2 x DIMM 240-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 2.0 x1 |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices |

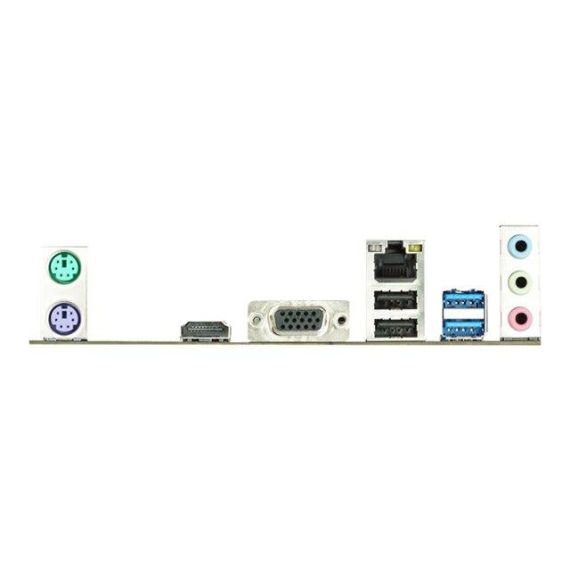

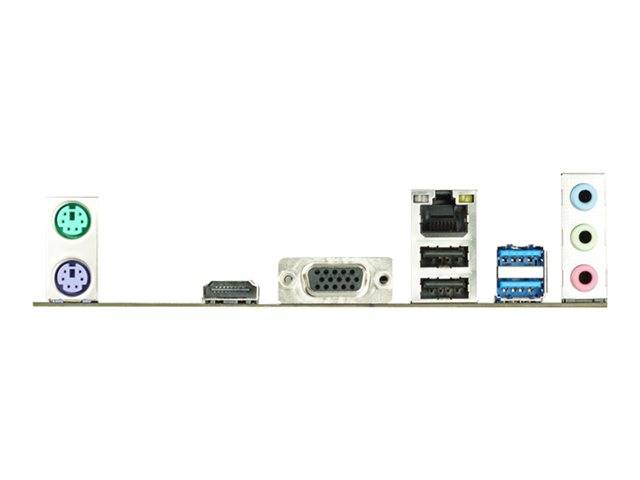

Interfaces | 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 2 x USB 3.0 ¦ 2 x USB 3.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x VGA ¦ 1 x HDMI |
Internal Interfaces | 2 x USB 3.0 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
BIOS Features | BIOSTAR [FLASHER], BIO-Remote 2, BIOS online Update |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage |
Hardware Features | All-Solid Capacitor motherboard Design, HDCP compliant, ESD Protection, BIOSTAR Charger Booster, overcurrent protection, overvoltage protection, overheat protection, USB Polyswitch, Moistureproof PCB, Low RdsOn P-Pak MOS |
Included Accessories | I/O back plate |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities, BullGuard, BIO-Remote2, Smart Speed LAN |
Width | 19 cm |
Depth | 17 cm |
