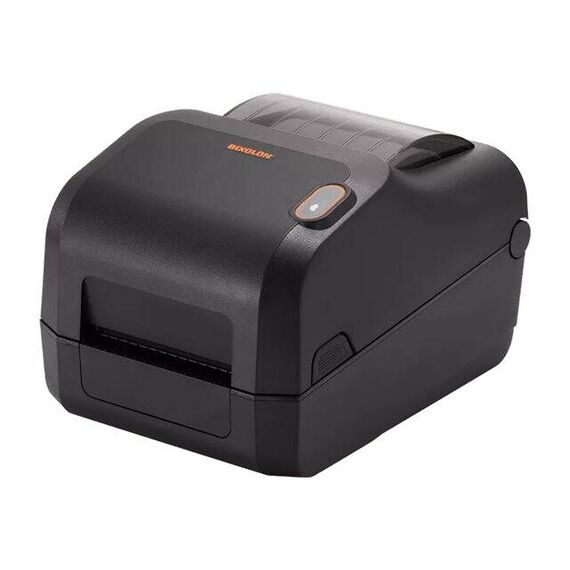

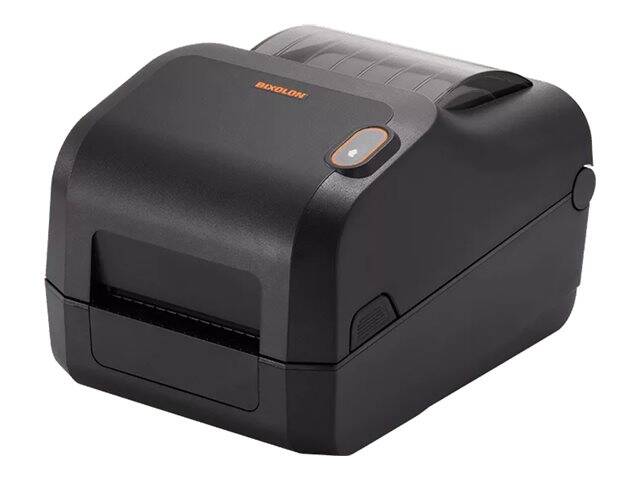

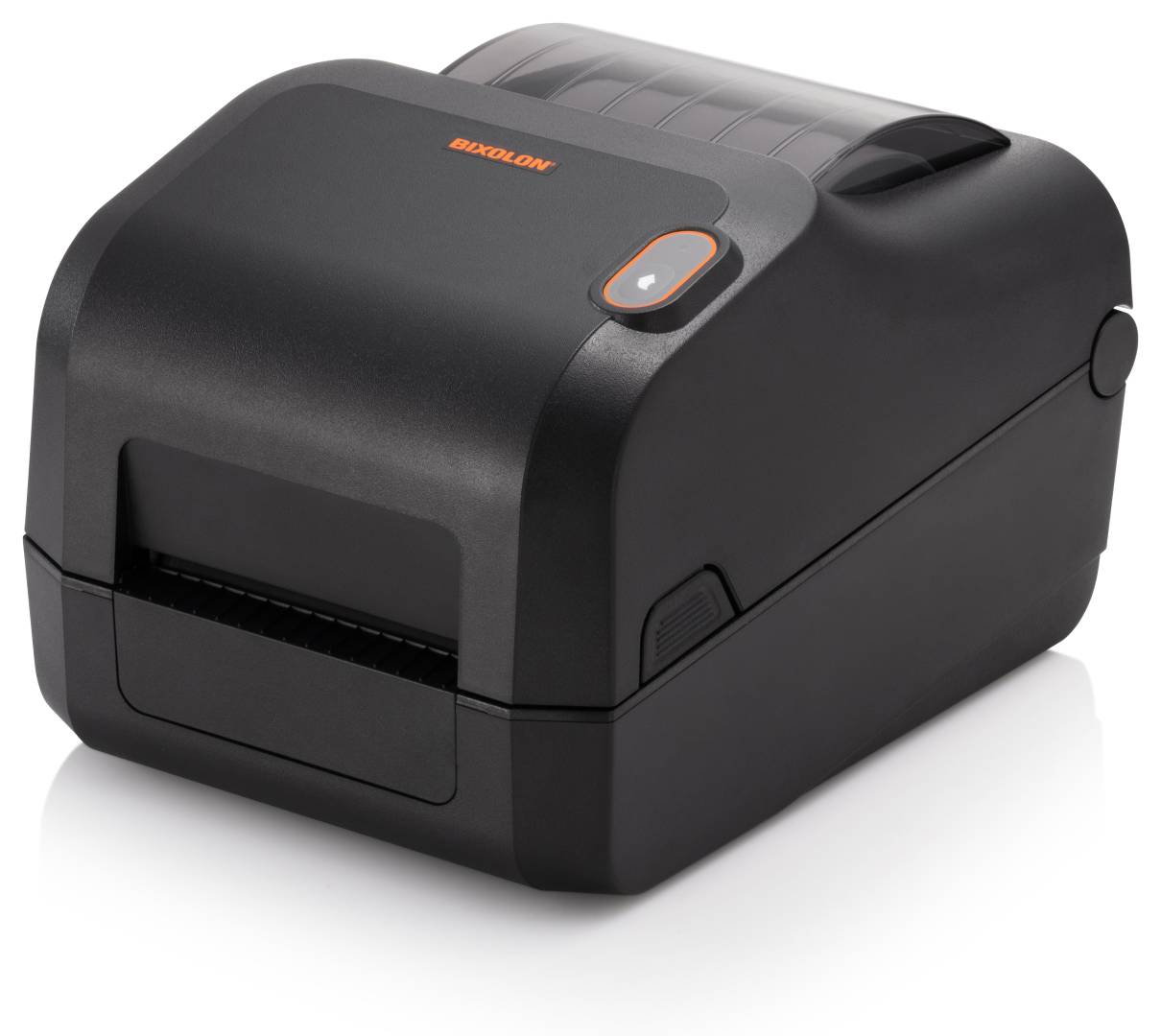

BIXOLON XD3-40t - Label printer - direct thermal / thermal transfer - Roll (11.8 cm) - 203 dpi - up to 127 mm/sec - USB, LAN, serial | XD3-40TEK/BEG
Please sign in so that we can notify you about a reply
Special Fetures
- 4-inch (118mm) durable direct thermal or thermal transfer label and barcode printer
- Compact clamshell design
- Data processing and print speed up to 5 ips (127mm/sec) to produce high quality 203dpi text, graphics and barcodes
- Toolless maintenance of the roller and print head
- Fully compatible with market-leading programming languages for easy migration
Product Specification
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Printer | |
| Print Speed | Up to 127 mm/sec - monochrome - 203 dpi |
| Connectivity Technology | Wired |
| Interface | USB, LAN, serial |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | SLCS, BPL-Z, BPL-E |
| Features | Transmissive media sensor, reflective media sensor, ribbon end sensor, open head sensor |
| Fonts Included | Bitmapped SLCS ¦ Scalable SLCS ¦ Bitmapped BPL-Z ¦ Scalable BPL-Z ¦ Bitmapped BPL-E |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, TLC39, GS1 DataBar-14, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI, UPC/EAN supplementals |
| RAM | |
| RAM Installed (Max) | 64 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | |
| Flash Memory | 128 MB |
| Media Handling | |
| Media Type | Labels, continuous labels, fanfold labels, black mark labels, notch, gap |
| Max Media Size | Roll (11.8 cm) |
| Min Media Size (Custom) | 15 mm |
| Max Media Size (Custom) | 118 mm |
| Media Sizes | Roll (11.8 cm), Roll (1.5 cm) |
| Max Printing Width | 104 mm |
| Max Printing Length | 1 m |
| Media Thickness Range | 0.06 mm - 0.2 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 38.1 mm |
| Media Feeders | 1 x manual - Roll (11.8 cm) |
| Expansion / Connectivity | |
| Connections | 1 x USB ¦ 1 x LAN - RJ-45 ¦ 1 x serial |
| Miscellaneous | |
| Cables Included | USB cable |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, Bartender UltraLite, OPOS Drivers, CUPS Driver (Linux, MAC OS), Virtual COM software, Bixolon LabelArtist-II |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Dimensions & Weight | |
| Width | 21 cm |
| Depth | 28.4 cm |
| Height | 18.6 cm |
| Weight | 2.6 kg |
Features - Bixolon - XD3-40TEK/BEG
More Details
Product Code
CJ81427
EAN Code
8809521198003
Manufacturer
Bixolon
