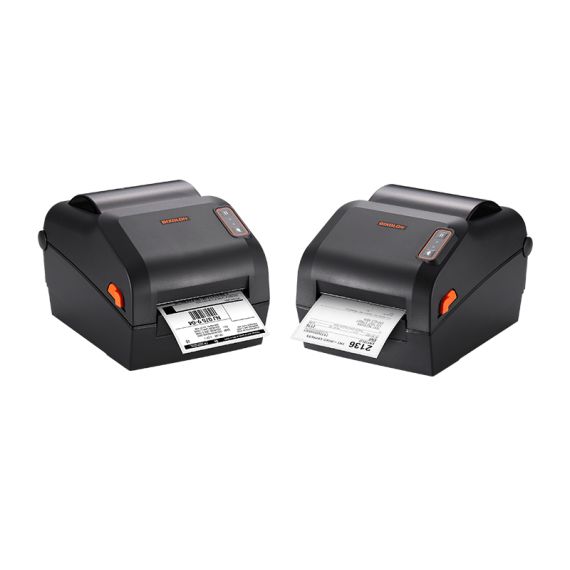

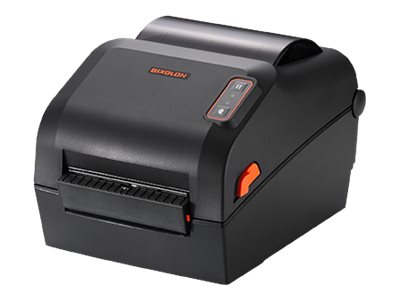

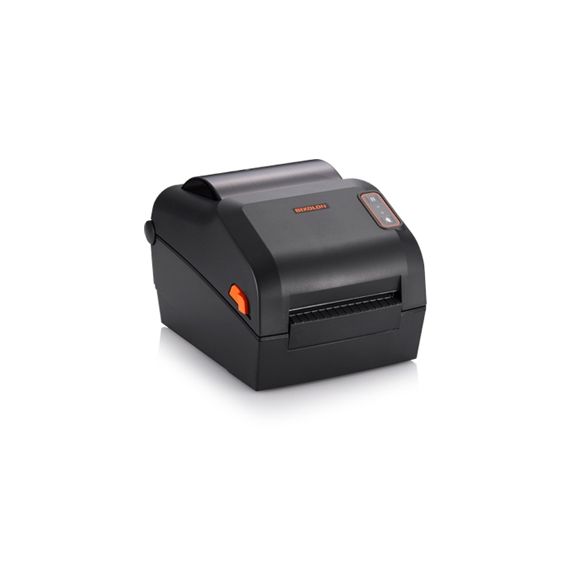

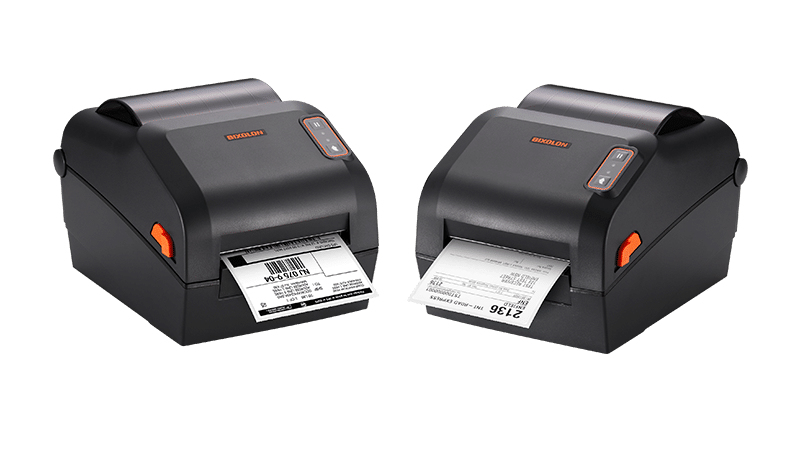

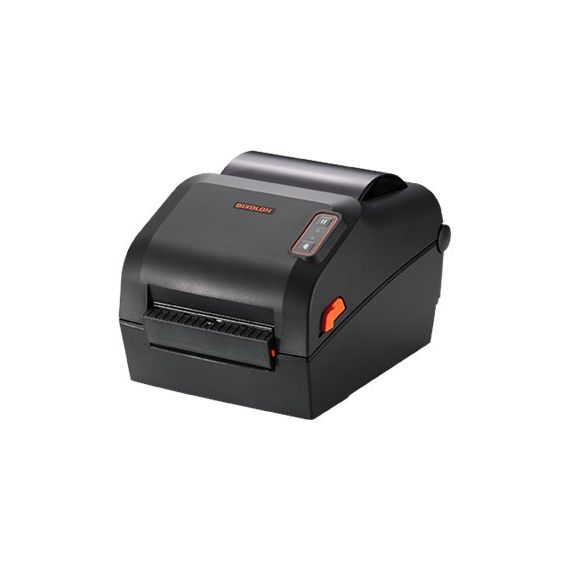

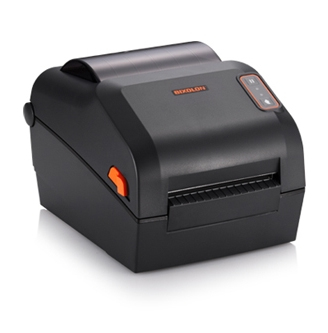

BIXOLON XD5-40d - Label printer - direct thermal - Roll (11.8 cm) - 203 dpi - up to 178 mm/sec - USB, USB host, LAN, serial, Bluetooth 4.2 LE | XD5-40DEBK/BEG
Please sign in so that we can notify you about a reply
Product Features
- Efficient barcode printing
The BIXOLON XD5-40d excels in printing a wide array of barcode formats including Aztec code, QR code, and UPC-E, ensuring compatibility with various industry standards and applications. - Versatile connectivity
Equipped with a USB host interface, this printer offers seamless integration into existing systems, providing a straightforward setup process for all users. - High-quality output
With a maximum resolution of 203 DPI and a printing speed of 178 mm/s, the XD5-40d delivers clear, fast monochrome printing for all labeling needs. - Durable design
Designed to operate within a wide range of temperatures and certified by ENERGY STAR for energy efficiency, the XD5-40d is built for reliability and eco-friendly operation. - Flexible media handling
Supports a variety of media sizes up to Roll (11.8 cm) and thicknesses from 0.06 mm to 0.2 mm, accommodating diverse printing requirements.
Special Fetures
- Supports a comprehensive range of barcode formats
- USB host interface for easy integration
- 203 DPI resolution for clear label printing
- ENERGY STAR certified for efficient operation
- Flexible media handling supports rolls up to 11.8 cm wide
Product Specification
| Printer Type | Label printer - direct thermal - monochrome |
| Printer | |
| Print Speed | Up to 178 mm/sec - monochrome - 203 dpi |
| Connectivity Technology | Wireless |
| Interface | USB, USB host, LAN, serial, Bluetooth 4.2 LE |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | SLCS, BPL-Z, BPL-E |
| Features | Transmissive media sensor, reflective media sensor, open head sensor |
| Fonts Included | 10 x bitmapped SLCS <br /> 1 x scalable SLCS <br /> 16 x bitmapped BPL-Z <br /> 1 x scalable BPL-Z <br /> 5 x bitmapped BPL-E |
| Barcodes | Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Plessey, Postnet, GS1 DataBar-14, Standard 2 of 5, UPC/EAN supplementals, UPC-A, UPC-E, IMB, Aztec code, CODABLOCK, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC39 |
| RAM | |
| RAM Installed (Max) | 64 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | |
| Flash Memory | 128 MB |

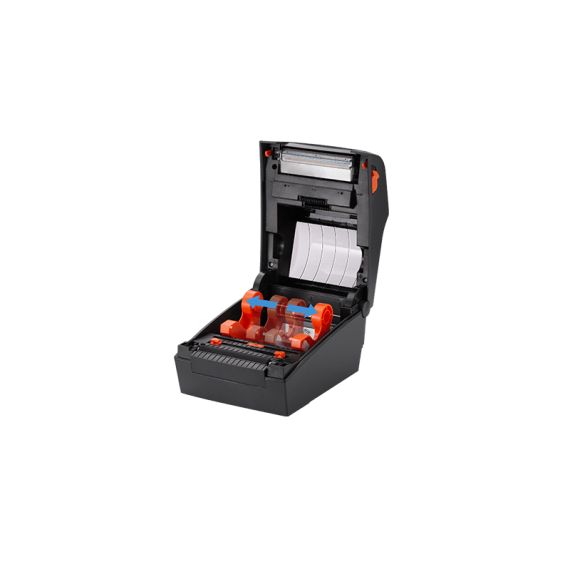

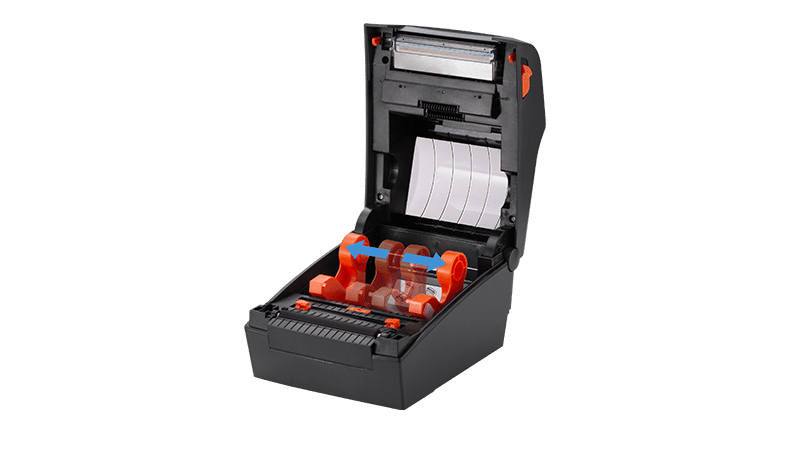

| Media Handling | |
| Media Type | Labels, black mark labels, notch, continuous labels, fanfold labels, gap |
| Max Media Size | Roll (11.8 cm) |
| Min Media Size (Custom) | 15 mm |
| Max Media Size (Custom) | 118 mm |
| Media Sizes | Roll (1.5 cm), Roll (11.8 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 1 m |
| Media Thickness Range | 0.06 mm - 0.2 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 38.1 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.8 cm) |
| Expansion / Connectivity | |
| Connections | 1 x USB host <br /> 1 x USB - 4 pin USB Type B <br /> 1 x LAN - RJ-45 <br /> Serial |
| Miscellaneous | |
| Cables Included | USB cable |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, OPOS/JavaPOS Drivers, Virtual COM software, Bartender UltraLite, Bixolon LabelArtist-II, CUPS Driver (Linux, MAC OS) |
| OS Required | Apple MacOS, Linux, Microsoft Windows, Android, Apple iOS |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 80% RH |
| Dimensions & Weight | |
| Width | 19.4 cm |
| Depth | 24.8 cm |
| Height | 16.9 cm |
| Weight | 1.89 kg |
Features - Bixolon - XD5-40DEBK/BEG
More Details
Product Code
CJ81425
EAN Code
8809521198546
Manufacturer
Bixolon
