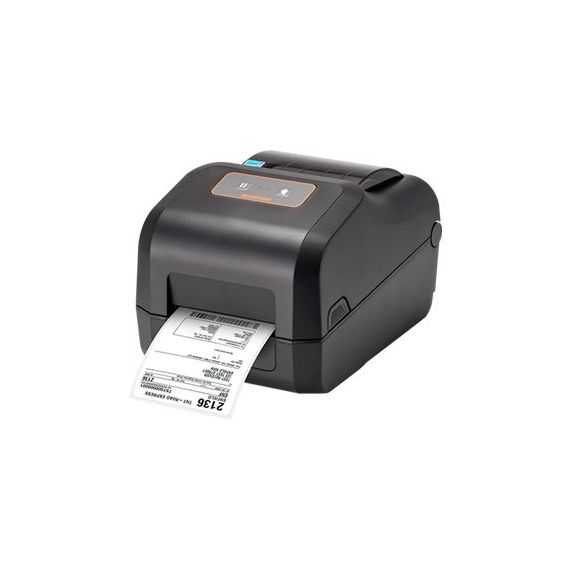

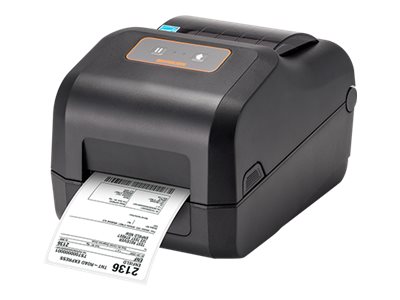

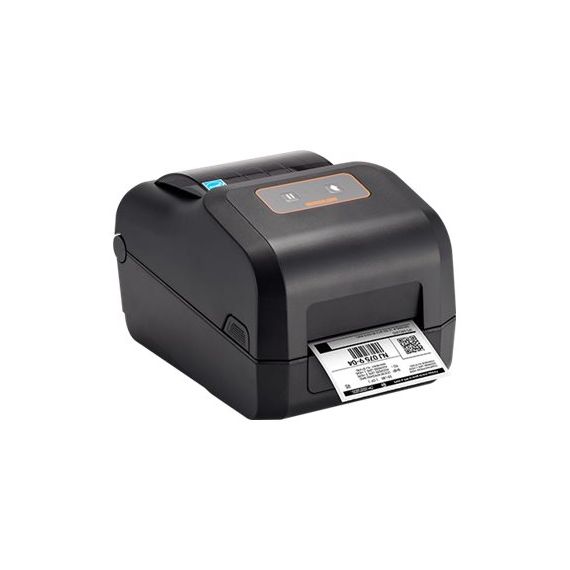

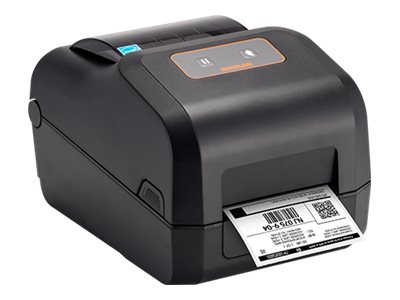

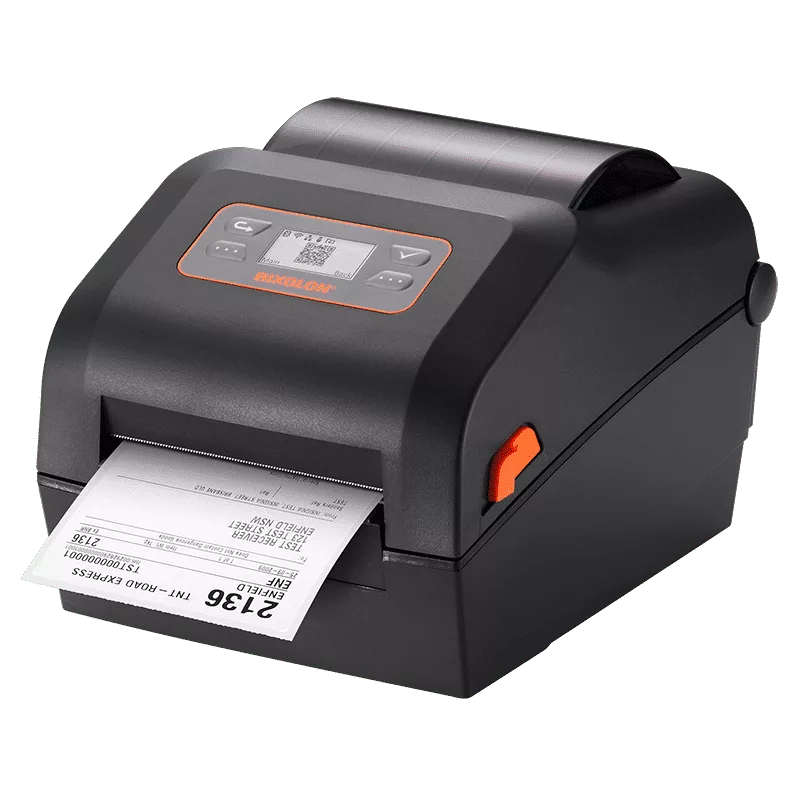

BIXOLON XD5-40t - Label printer - direct thermal / thermal transfer - Roll (11.8 cm) - 203 dpi - up to 152 mm/sec - USB 2.0, USB host - black | XD5-40TK/BEG
Please sign in so that we can notify you about a reply
Product Features
- Efficient printing speed
The BIXOLON XD5-40t offers a maximum printing speed of 152 mm/s, allowing for rapid production of labels, keeping operations efficient. - Versatile barcode compatibility
This printer supports a wide range of barcode formats, including Code 39, QR code, and Data Matrix, accommodating various labeling requirements. - Advanced memory capacity
With 128 MB of flash memory and 64 MB of SDRAM, the printer is capable of managing multiple print jobs concurrently without performance loss. - Compact design
The printer's compact and external power adapter design allows for easy placement in any workspace while maintaining a sleek appearance. - Energy-efficient operation
Compliant with ENERGY STAR standards, this printer saves on energy costs and contributes to environmental sustainability efforts.
Special Fetures
- Fast processing and print speeds of up to 6 ips

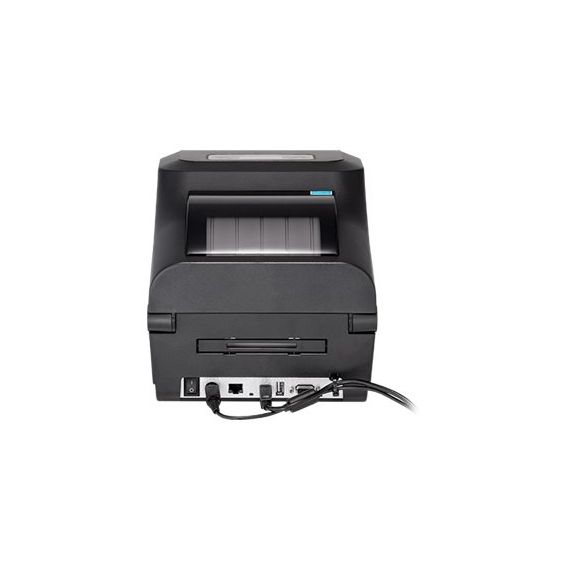

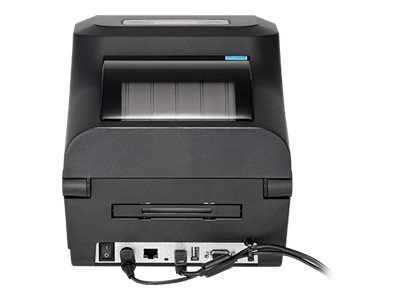

- Interface: USB 2.0, USB host, LAN, Bluetooth, serial
- Extended memory space
- A suite of SDKs for major operating systems

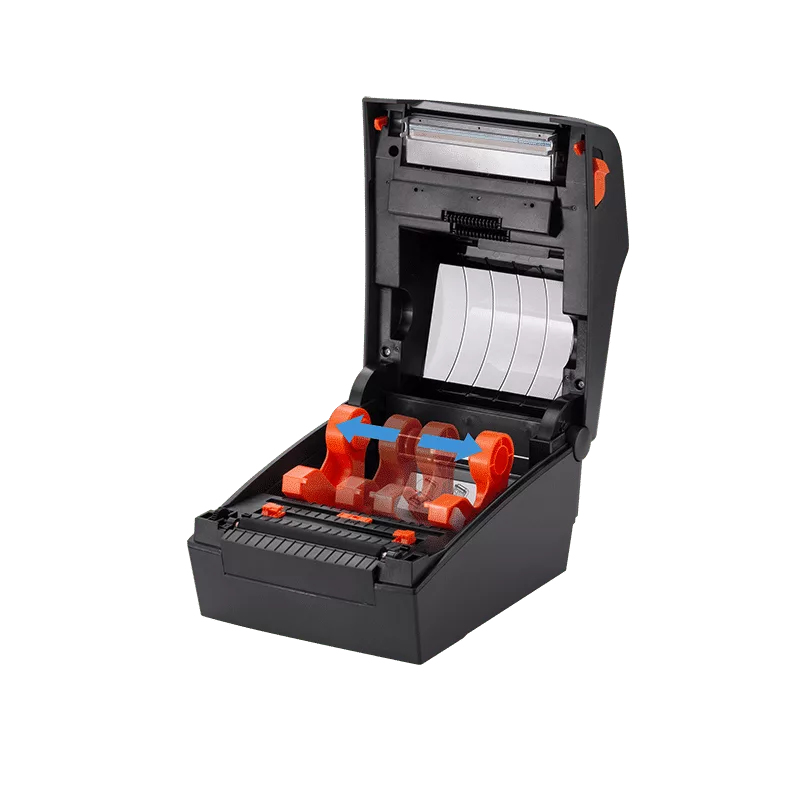

- An adjustable media guide and a holder

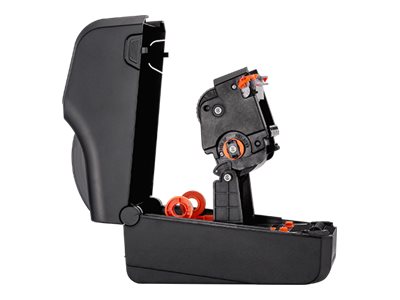

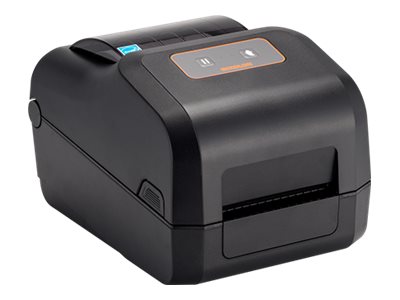

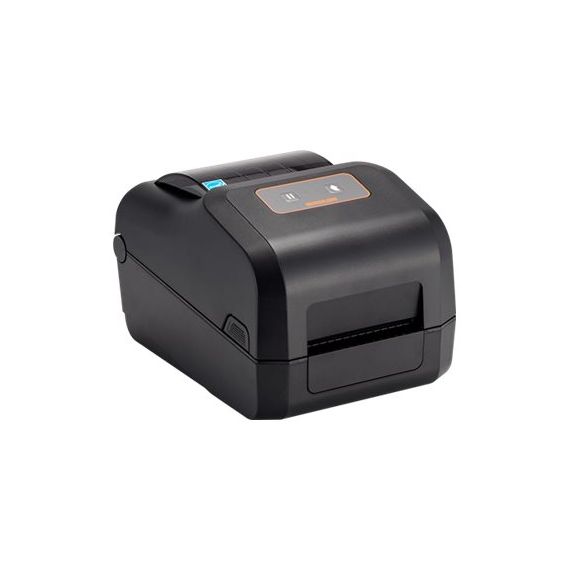

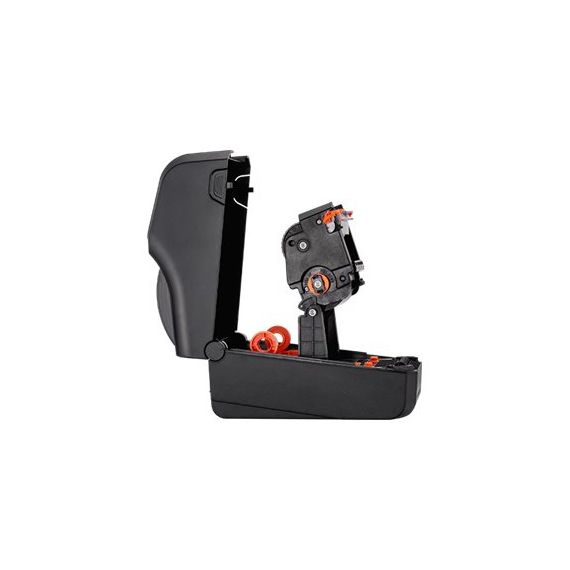

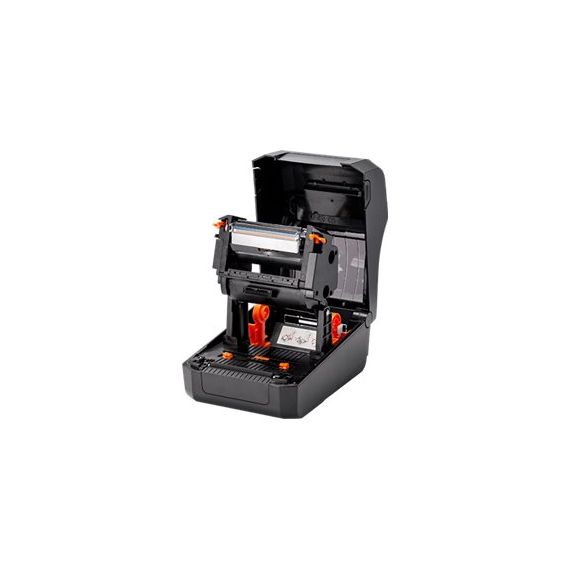

- Compact clamshell design with intuitive menu buttons

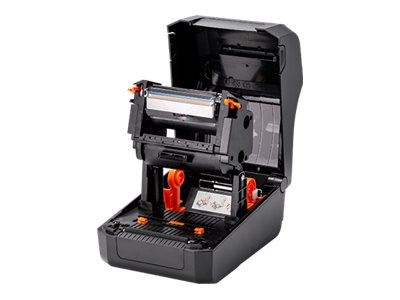

- Suitable for both half-inch and full-inch core ribbon (74m and 300m)
- Field-installable peeler and auto cutter
- Compatible with label design software; BIXOLON's Label Artist and Seagull's BarTender
- Twin Function supported: copy printer setting and data by USB
- XPM and XCM - web-based printer management software and connection app
- Enhanced ribbon handling with the ribbon left-right balance adjustment
- Fully compatible with popular programming languages
- Smart switch programming languages without setting the mode
- Simple to set up media sensor
Product Specification
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Enclosure Colour | Black |
| Printer | |
| Print Speed | Up to 152 mm/sec - monochrome - 203 dpi |
| Connectivity Technology | Wired |
| Interface | USB 2.0, USB host |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | SLCS, BPL-Z, BPL-E |
| Features | Transmissive media sensor, reflective media sensor, open head sensor |
| Fonts Included | 10 x bitmapped SLCS <br /> 1 x scalable SLCS <br /> 16 x bitmapped BPL-Z <br /> 1 x scalable BPL-Z <br /> 5 x bitmapped BPL-E |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, TLC39, GS1 DataBar-14, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI, UPC/EAN supplementals |
| RAM | |
| RAM Installed (Max) | 64 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | |
| Flash Memory | 128 MB |
| Media Handling | |
| Media Type | Labels, continuous forms, fanfold labels |
| Max Media Size | Roll (11.8 cm) |
| Min Media Size (Custom) | 15 mm |
| Max Media Size (Custom) | 118 mm |
| Media Sizes | Roll (11.8 cm), Roll (1.5 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 1 m |
| Media Thickness Range | 0.06 mm - 0.2 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.8 cm) |
| Expansion / Connectivity | |
| Connections | USB host <br /> 1 x USB 2.0 - 4 pin USB Type B |
| Miscellaneous | |
| Cables Included | USB cable |
| Power | |
| Power Device | Power adapter - external |
| Frequency Required | 50/60 Hz |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 80% |
| Dimensions & Weight | |
| Width | 21 cm |
| Depth | 28.4 cm |
| Height | 18.8 cm |
| Weight | 2.48 kg |
Features - Bixolon - XD5-40TK/BEG
More Details
Product Code
CJ81437
EAN Code
8809521198379
Manufacturer
Bixolon
