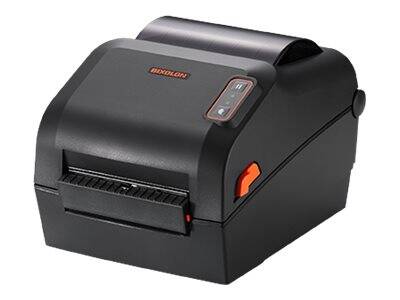

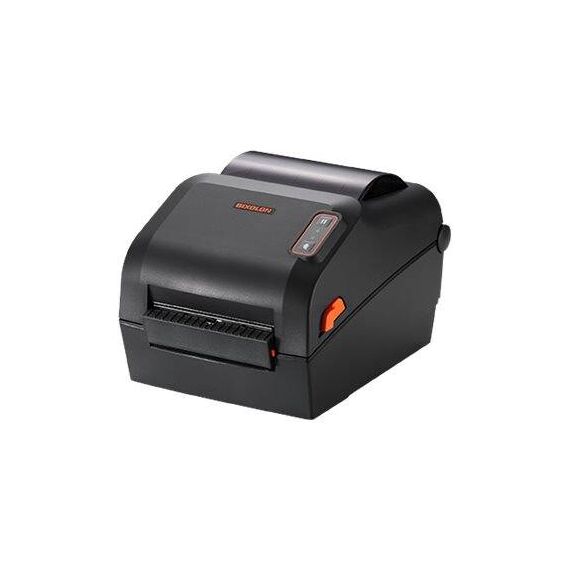

BIXOLON XD5-43d - Label printer - direct thermal - Roll (11.8 cm) - 300 dpi - up to 127 mm/sec - USB 2.0, LAN, serial, USB host - black | XD5-43DEK/BEG
Please sign in so that we can notify you about a reply
Special Fetures
- 4-inch (118mm) mid-range direct thermal label and barcode printer
- Quick data processing and print speed up to 7 ips (178mm/sec) to produce high quality text, graphics and barcodes
- Standard USB host supports Twin Function
- Dual-band WLAN functionality with support for SNMP
- Fully compatible with market-leading programming languages
- Easy paper loading with the adjustable paper guide and holder
Product Specification
| Printer Type | Label printer - direct thermal - monochrome |
| Enclosure Colour | Black |
| Printer | |
| Print Speed | Up to 127 mm/sec - monochrome - 300 dpi |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN, serial, USB host |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | SLCS, BPL-Z, BPL-E |
| Features | Transmissive media sensor, reflective media sensor, open head sensor |
| Fonts Included | 10 x bitmapped SLCS ¦ 1 x scalable SLCS ¦ 16 x bitmapped BPL-Z ¦ 1 x scalable BPL-Z ¦ 5 x bitmapped BPL-E |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, TLC39, GS1 DataBar-14, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI, UPC/EAN supplementals |
| RAM | |
| RAM Installed (Max) | 64 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | |
| Flash Memory | 128 MB |
| Media Handling | |
| Media Type | Labels, continuous forms, fanfold labels |
| Max Media Size | Roll (11.8 cm) |
| Min Media Size (Custom) | 15 mm |
| Max Media Size (Custom) | 118 mm |
| Media Sizes | Roll (11.8 cm), Roll (1.5 cm) |
| Max Printing Width | 105.7 mm |
| Max Printing Length | 1 m |
| Media Thickness Range | 0.06 mm - 0.2 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Media Feeders | 1 x manual - Roll (11.8 cm) |
| Networking | |
| Networking | Print server |
| Expansion / Connectivity | |
| Connections | USB host ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 ¦ Serial |
| Miscellaneous | |
| Cables Included | USB cable |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 80% |
| Dimensions & Weight | |
| Width | 19.4 cm |
| Depth | 24.8 cm |
| Height | 16.9 cm |
| Weight | 1.89 kg |
Features - Bixolon - XD5-43DEK/BEG
More Details
Product Code
CK27946
EAN Code
8809521199659
Manufacturer
Bixolon
