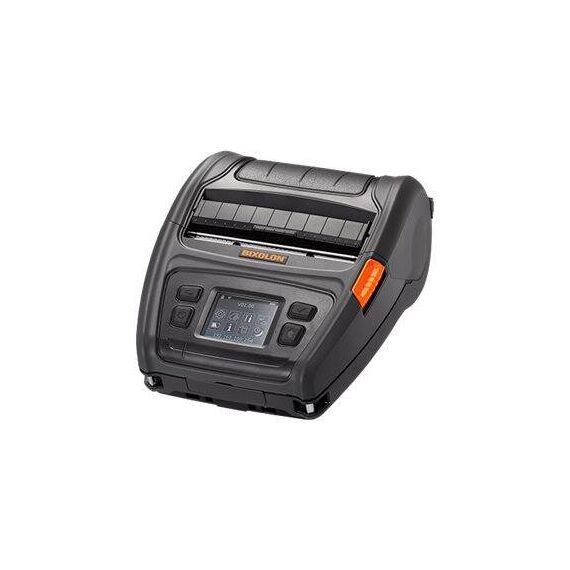

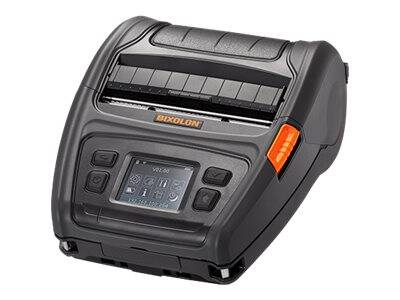

BIXOLON XM7-40 - Label printer - direct thermal - Roll (11.2 cm) - 203 dpi - up to 127 mm/sec - USB 2.0, serial, Wi-Fi(n) | XM7-40WK/BEG
Please sign in so that we can notify you about a reply
Special Fetures
- Fully compatible with SLCS, BPL-Z, BPL-C and BXL / POS: interchanged without setting the mode
- Fast Liner & Linerless label printing
- Smart Media Detection
- Anywhere Anyfont (Unicode)
- Direct printing from the SAP Smart Forms
- BIXOLON Profile Manager XPM, XCM
- Smart battery providing visibility over status and life cycle
- Simultaneously connects both Bluetooth 5.0 (MFi certified) and Dual-band WLAN (2.4GHz and 5GHz)
- Supporting all major operating systems
- Easy Bluetooth Pairing
- SoftAP: simple Wi-Fi set up to a mobile device
- Smart Connection - switching from SoftAP to Infrastructure mode
- Built with a large color display for easy set-up and battery status management
- Embedded peeler and media holder
- Up to 2.1 m / 7 ft. drop rate (XM7-20)
- IP54 water and dust proof
- Enabling USB C-type charging
Product Specification
| Printer Type | Label printer - direct thermal - monochrome |
| Printer | |
| Print Speed | Up to 127 mm/sec - monochrome - 203 dpi |
| Built-in Devices | LCD display |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, serial, Wi-Fi(n) |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | EPSON ESC/POS, SLCS, BPL-Z, BXL, BPL-C |
| Features | Linerless, Black Mark sensor, gap sensor, open cover sensor, peel off sensor |
| Display Resolution | 240 x 320 |
| Fonts Included | 10 x bitmapped SLCS ¦ 1 x scalable SLCS ¦ 16 x bitmapped BPL-Z ¦ 1 x scalable BPL-Z ¦ 7 x bitmapped BPL-C |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, TLC39, GS1 DataBar-14, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI, UPC/EAN supplementals, IMB |
| Printer Features | Paper end sensor, Smart Media Detection |
| RAM | |
| RAM Installed (Max) | 128 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | |
| Flash Memory | 256 MB |
| Media Handling | |
| Media Type | Receipt paper, linerless labels, label paper, notch |
| Max Media Size | Roll (11.2 cm) |
| Min Media Size (Custom) | 50 mm |
| Max Media Size (Custom) | 112 mm |
| Media Sizes | Roll (11.2 cm), Roll (5 cm) |
| Max Printing Width | 104 mm |
| Media Thickness Range | 0.07 mm - 0.15 mm |
| Roll Maximum Outer Diameter | 66 mm |
| Roll Core Diameter | 19 mm, 12 mm |
| Media Feeders | 1 x manual - Roll (11.2 cm) |
| Networking | |
| Networking | Print server |
| Security Protocols & Features | WEP, WPA |
| Expansion / Connectivity | |
| Connections | USB 2.0 - 24 pin USB-C ¦ Serial |
| Miscellaneous | |
| Included Accessories | Belt strap, switched mode power supply |
| Features | Water-resistant, rugged, drop-resistant, integrated rechargeable battery, dustproof, Virtual COM support USB port, built-in NFC chip |
| Compliant Standards | IP54 |
| Power | |
| Power Device | Power adapter - external |
| Frequency Required | 50/60 Hz |
| Battery | |
| Type | Lithium Ion |
| Required Qty | 1 |
| Included | 1 |
| Capacity | 6800 mAh |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, Bartender UltraLite, OPOS/JavaPOS Drivers, CUPS Driver (Linux, MAC OS), Virtual COM software, Bixolon LabelArtist-II |
| OS Required | Apple MacOS, Linux, Microsoft Windows, Android, Apple iOS |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -15 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 80% RH |
| Dimensions & Weight | |
| Width | 15.8 cm |
| Depth | 8.2 cm |
| Height | 18.6 cm |
| Weight | 1.09 kg |
Features - Bixolon - XM7-40WK/BEG
More Details
Product Code
CJ81493
EAN Code
8809521199536
Manufacturer
Bixolon
