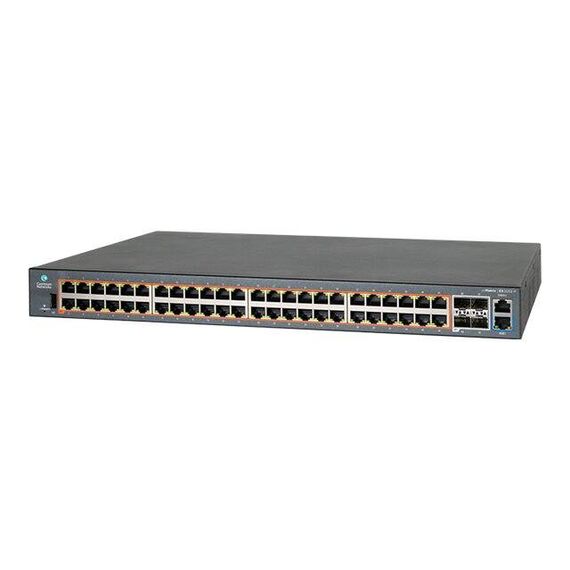

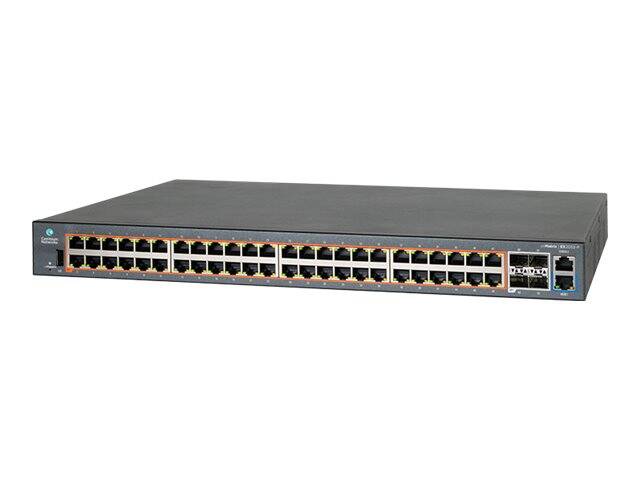

Cambium Networks cnMatrix EX2000 Series EX2052-P - Switch - fixed 540, no power cord - Managed - 48 x 10/100/1000 (PoE+) + 4 x SFP+ (uplink) - rack-mountable - PoE+ (400 W) | MXEX2052GxPA00

MXEX2052GxPA00
3,167.91
(3,769.81 inc. VAT)
Availability: 10 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Delivery
Payment options
Product Code04:382866 EAN Code0810722031462 ManufacturerCambium Networks

Product Specification

Device TypeSwitch - 52 ports - Managed
Enclosure TypeRack-mountable 1U
Ports48 x 10/100/1000 (PoE+) + 4 x SFP+ (uplink)
Power Over Ethernet (PoE)PoE+
PoE Budget400 W
PerformanceThroughput: 176 Gbps ¦ Forwarding rate (64-byte packets): 120 Mpps
CapacityVLANs supported: 4000 ¦ QoS queues: 8 ¦ ACL entries (ingress/egress): 128 ¦ Static ARP entries: 512 ¦ ARP entries: 512 ¦ Static routes: 64 ¦ Dynamic routes: 512 ¦ IGMP multicast groups: 256
MAC Address Table Size16K entries
Routing ProtocolIGMPv2, IGMP, IGMPv3
Remote Management ProtocolSNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, CLI
Encryption AlgorithmAES, TLS 1.0, SSL 3.0
Authentication MethodSecure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), internal user database
FeaturesAuto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Per-VLAN Spanning Tree (PVST), DHCP snooping, Quality of Service (QoS), reset button, LLDP support, DHCP relay, Per-VLAN Rapid Spanning Tree (PVRST), DHCP client, port isolation, IGMP proxy, 2 fans, Link Aggregation, Root Guard, Private VLAN Edge (PVE), LLDP-MED, IGMP fast leave, Denial of Service (DoS) protection, BPDU Filter, Telnet server, Telnet client, BPDU Guard
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ak, IEEE 802.3at
Processor: 800 MHz
RAM512 MB
Flash Memory128 MB
Status IndicatorsPoE, link/activity
Expansion / Connectivity
Interfaces48 x Gigabit LAN RJ-45 30 W ¦ 4 x Gigabit / 10Gbit LAN SFP+ uplink ¦ 1 x serial (console) ¦ 1 x USB ¦ 1 x management
Power
Power DeviceInternal power supply
Voltage RequiredAC 100-240 V
Power Consumption Operational39.24 Watt
Miscellaneous
Rack Mounting KitIncluded
MTBF238,063 hours
Dimensions & Weight
Width44 cm
Depth35 cm
Height4.4 cm
Weight5.4 kg
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature50 °C
Humidity Range Operating55 - 95%
Min Storage Temperature-40 °C
Max Storage Temperature70 °C

Features - Cambium Networks - MXEX2052GxPA00

General
48-Port
More Details
Product Code
04:382866
EAN Code
0810722031462
Manufacturer
Cambium Networks
