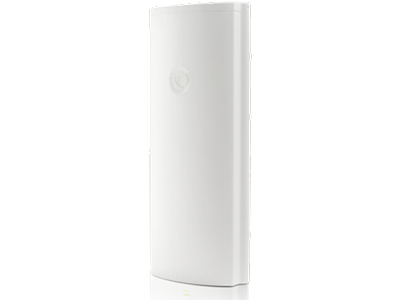

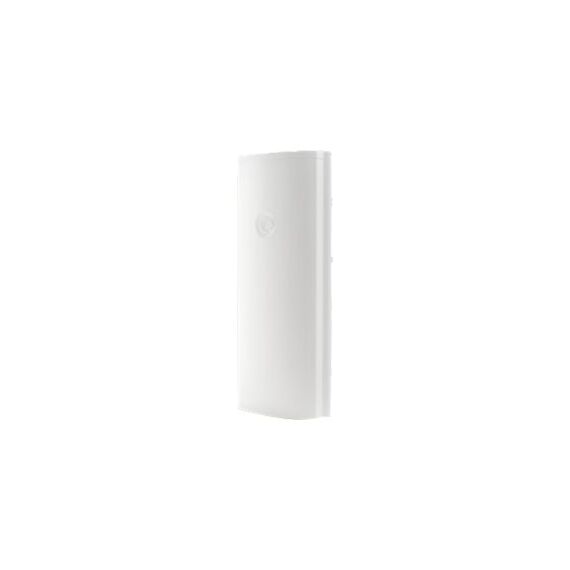

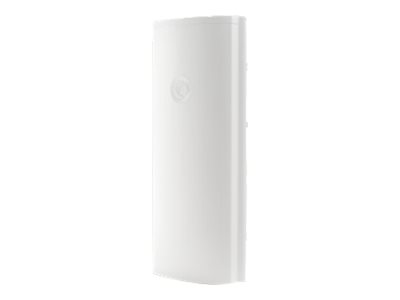

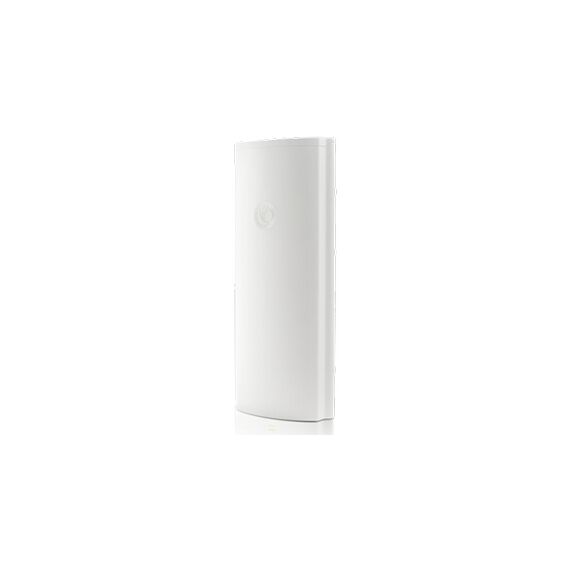

Cambium Networks - Antenna - sector - 17 dBi - mast | C050910D301A
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Antenna |
| Package Content | Access point mounting hardware |
| Product Material | Acrylonitrile butadiene styrene (ABS) |
| Width | 15.7 cm |
| Depth | 11 cm |
| Height | 59.4 cm |
| Weight | 3.7 kg |
| Aerial | |
| Form Factor | Sector |
| Aerial Placing / Mounting | Mast |
| Frequency Range | 4.9 - 6 GHz |
| Gain | 17 dBi |
| Horizontal Beamwidth | 70° |
| Vertical Beamwidth | 6° |
| Impedance | 50 Ohm |
| Cabling & Wiring | |
| Connector Provided | 4 x RP-SMA |
| Miscellaneous | |
| Features | Rugged, UV protection, MU-MIMO technology, IP65 protection, 4x4 MiMo function, front-to-back ratio 30 dB |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
Features - Cambium Networks - C050910D301A
More Details
Product Code
07:484611
EAN Code
0810722030151
Manufacturer
Cambium Networks
