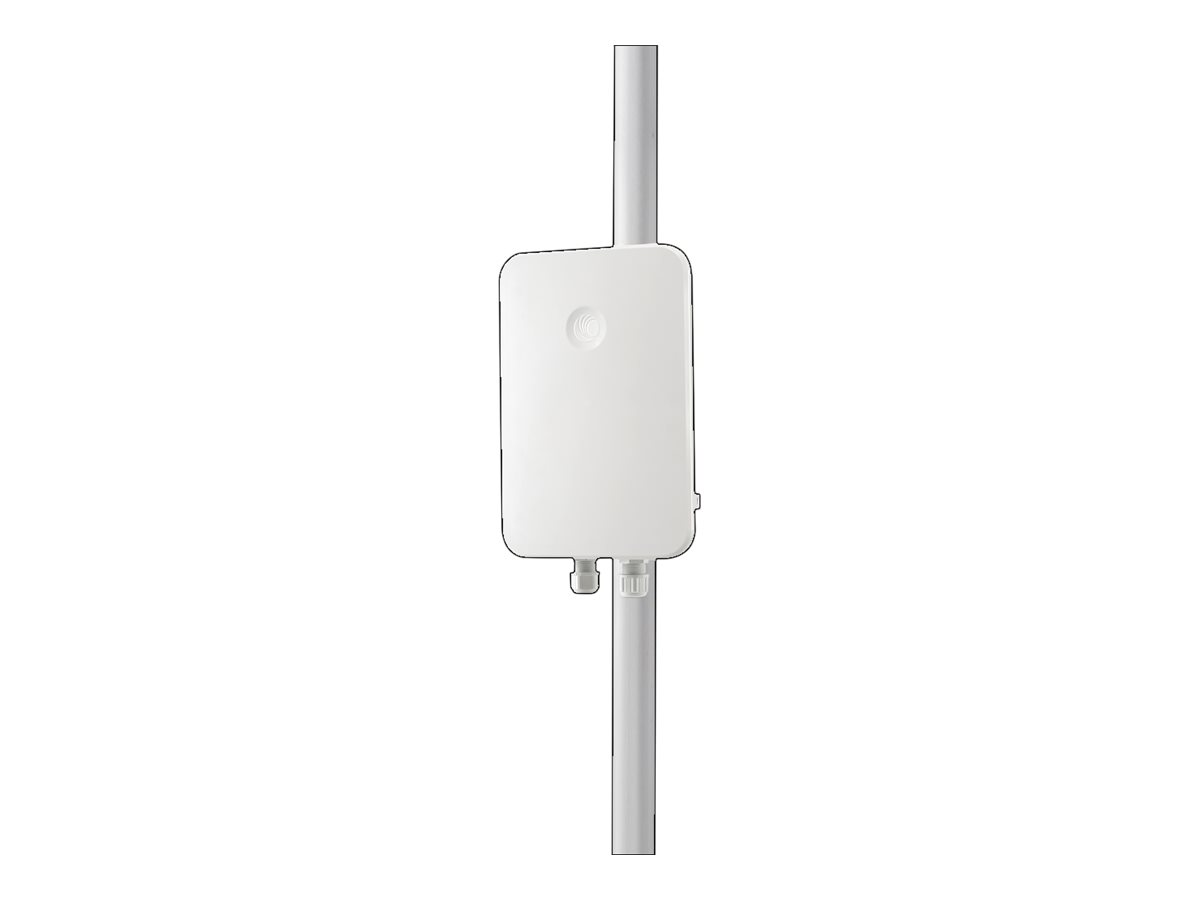

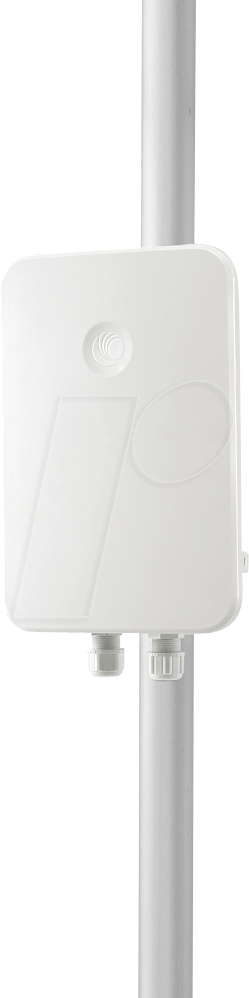

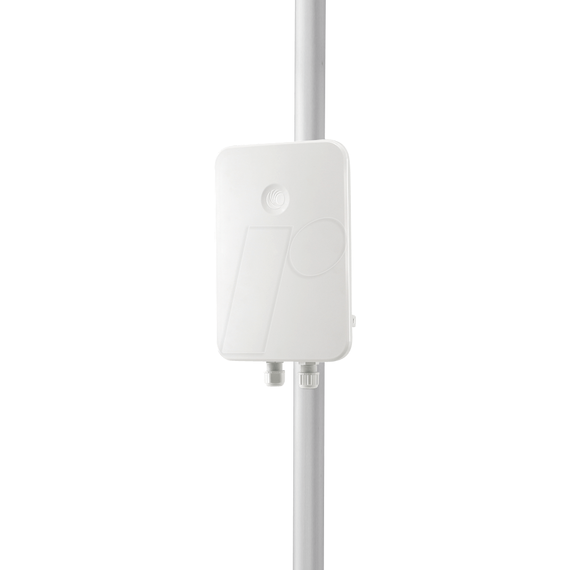

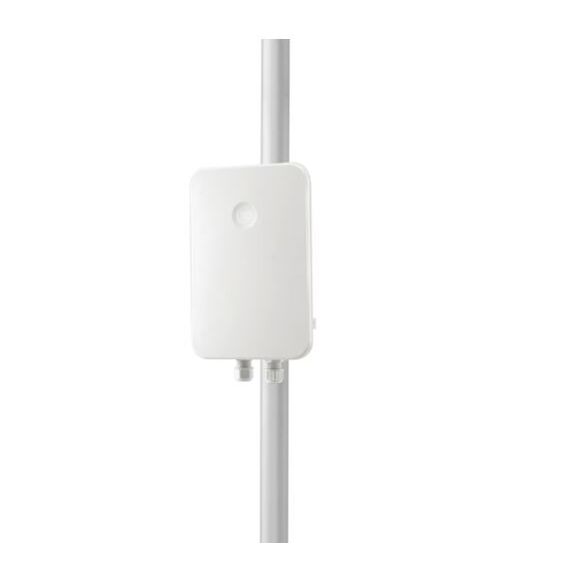

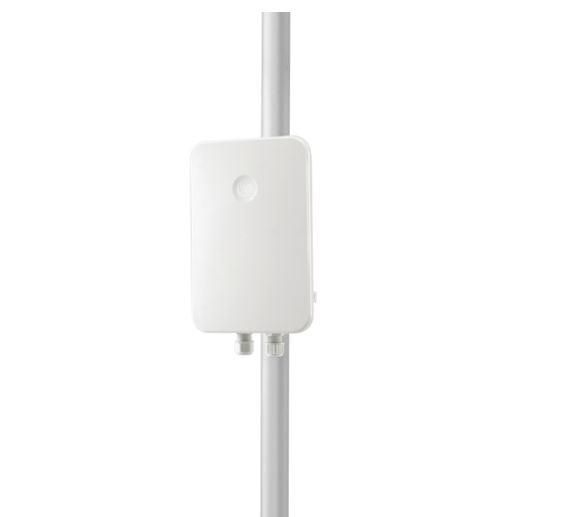

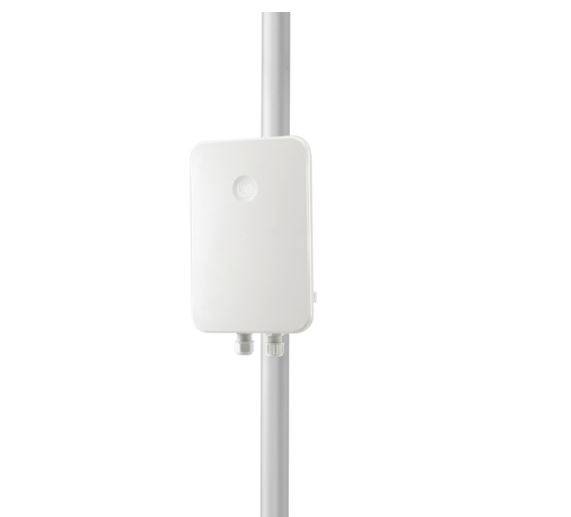

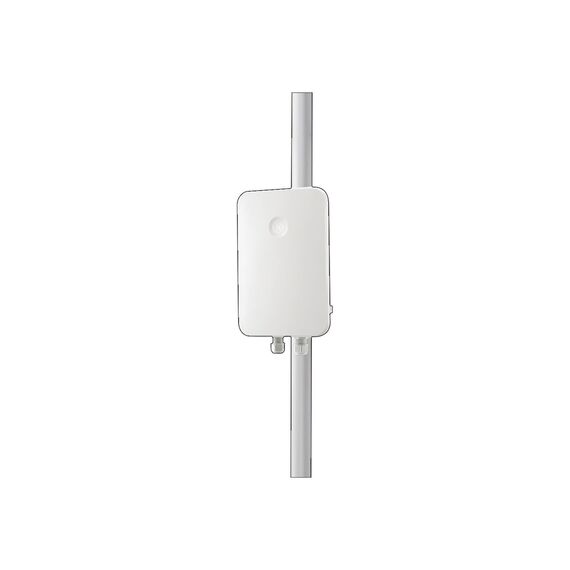

Cambium Networks cnPilot E700 - Radio access point - Wi-Fi 5 - Bluetooth - 2.4 GHz, 5 GHz - wall mountable | PL-E700X00A-EU
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Outdoor |
| Width | 21.6 cm |
| Depth | 6.6 cm |
| Height | 31.5 cm |
| Weight | 1.7 kg |
| Localisation | Europe |
| Networking | |
| Form Factor | Wall mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1733 Mbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, DSSS |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Network / Transport Protocol | L2TP, NTP, PPPoE, DHCP, DNS |
| Remote Management Protocol | Telnet, SSH, CLI |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Number of concurrent clients: 512 ¦ SSIDs total: 16 |
| Features | NAT support, load balancing, LDAP support, VLAN support, IGMP snooping, DFS support, Wireless Distribution System (WDS) support, Mesh networking, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, 2T2R MIMO technology, pole mountable, LLDP support, Dynamic VLAN Support (GVRP), 4T4R MIMO technology, Type of Service (ToS), DiffServ Code Point (DSCP) support |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK, WPA2-Enterprise |
| Authentication Method | RADIUS, Radio Service Set ID (SSID), MS-CHAP v.2, EAP-FAST, EAP-SIM, EAP-AKA |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11ac Wave 2 |
| Aerial | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Gain Level | 8 dBi |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | ETSI, IC, FCC, RoHS, WEEE, EN 60601-1-2, IP67 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 65 °C |
| Humidity Range Operating | 0 - 95% |
Features - Cambium Networks - PL-E700X00A-EU
More Details
Product Code
07:484584
EAN Code
0810722032599
Manufacturer
Cambium Networks
