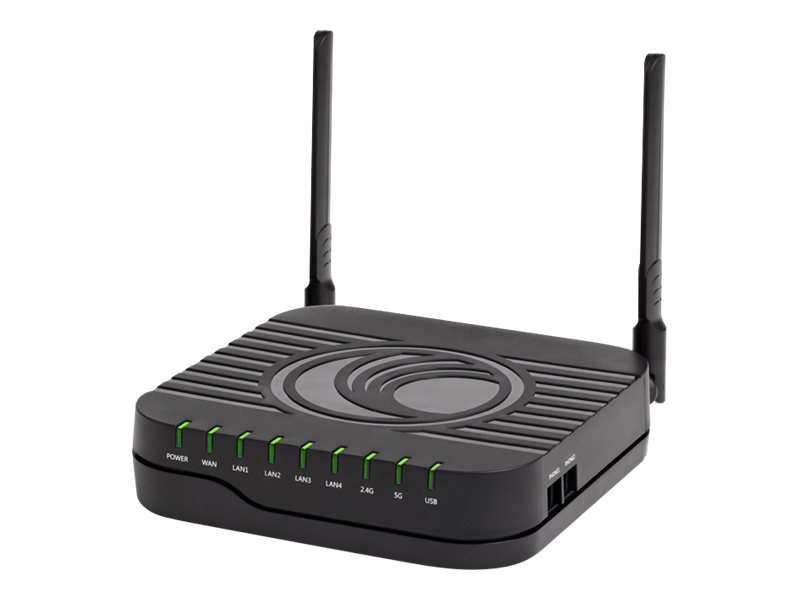

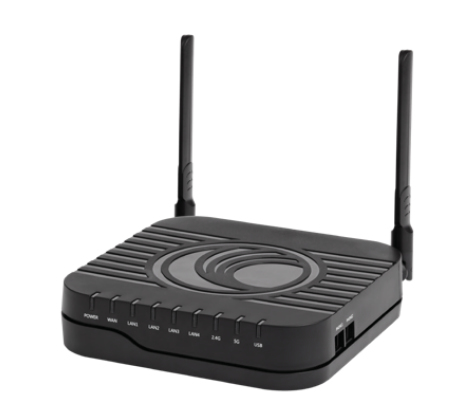

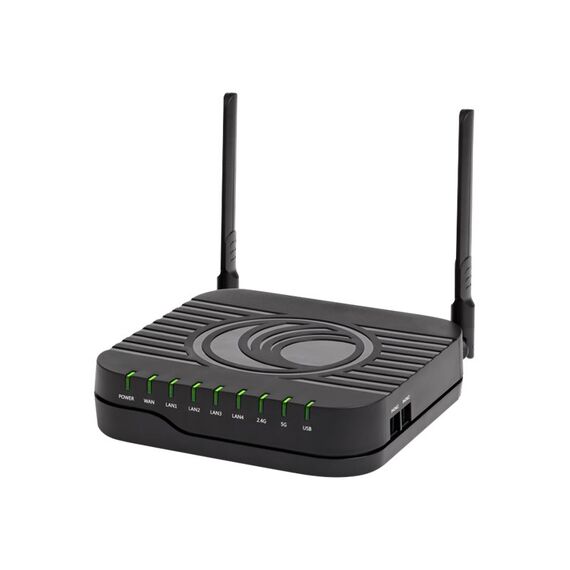

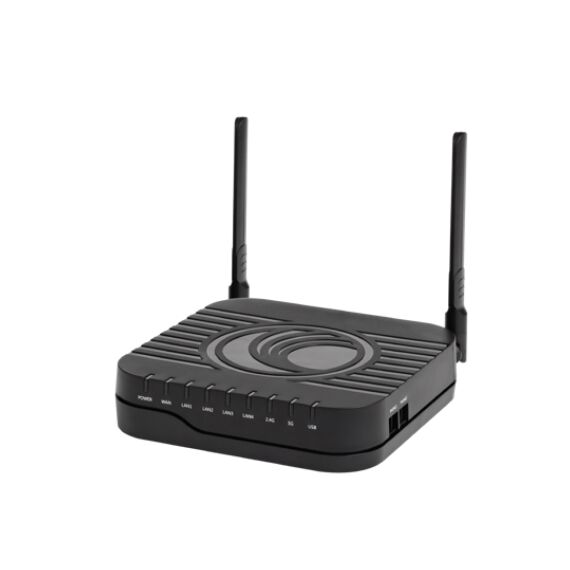

Cambium Networks cnPilot r201P - Radio access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - cloud-managed | C000000L031A
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 17.5 cm |
| Depth | 15.5 cm |
| Height | 3.5 cm |
| Weight | 800 g |
| Localisation | Europe |
| Processor / Memory / Storage | |
| RAM | 256 MB |
| Flash Memory | 16 MB |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP, DNS, DDNS |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 2, HTTP, TFTP, TR-069 |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | SSIDs per radio: 8 |
| Status Indicators | Power, phone, WAN, LAN, USB, 5 GHz, 2.4 GHz |
| Features | VPN support, VLAN support, Syslog support, dynamic DNS server, print server, MAC address filtering, Wireless Distribution System (WDS) support, SNTP support, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), Wi-Fi Protected Setup (WPS), DHCP server, Multiple SSID support, reset button, DNS server, DHCP client, DiffServ Code Point (DSCP) support, router mode, DMZ support, bridge mode, MAC clone, 2x2 MIMO technology |
| Encryption Algorithm | AES, TKIP, WPA-PSK, WPA2-PSK, WEP |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| IP Telephony | |
| VoIP Protocols | SIP, SIP v2, RTP |
| Voice Codecs | G.722, G.723, G.729, G.711u, G.711a, T.38 |
| Telephony Interfaces | 2 phone (FXS) |
| IP Telephony Features | Echo cancellation, comfort noise generation (CNG), voice activity detection (VAD), call forwarding, Caller ID, adaptative jitter buffer, call waiting, call hold, call transfer, 3-way conferencing, blacklisting |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T - RJ-45 (WAN) ¦ 4 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 2 x FXS - RJ-11 |
| Miscellaneous | |
| Compliant Standards | EN 61000-6-1, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-3, FCC Part 15 Class B, ETSI EN 301 489-17, ETSI EN 301 489-1 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Cambium Networks - C000000L031A
More Details
Product Code
07:485034
EAN Code
0810722032377
Manufacturer
Cambium Networks
