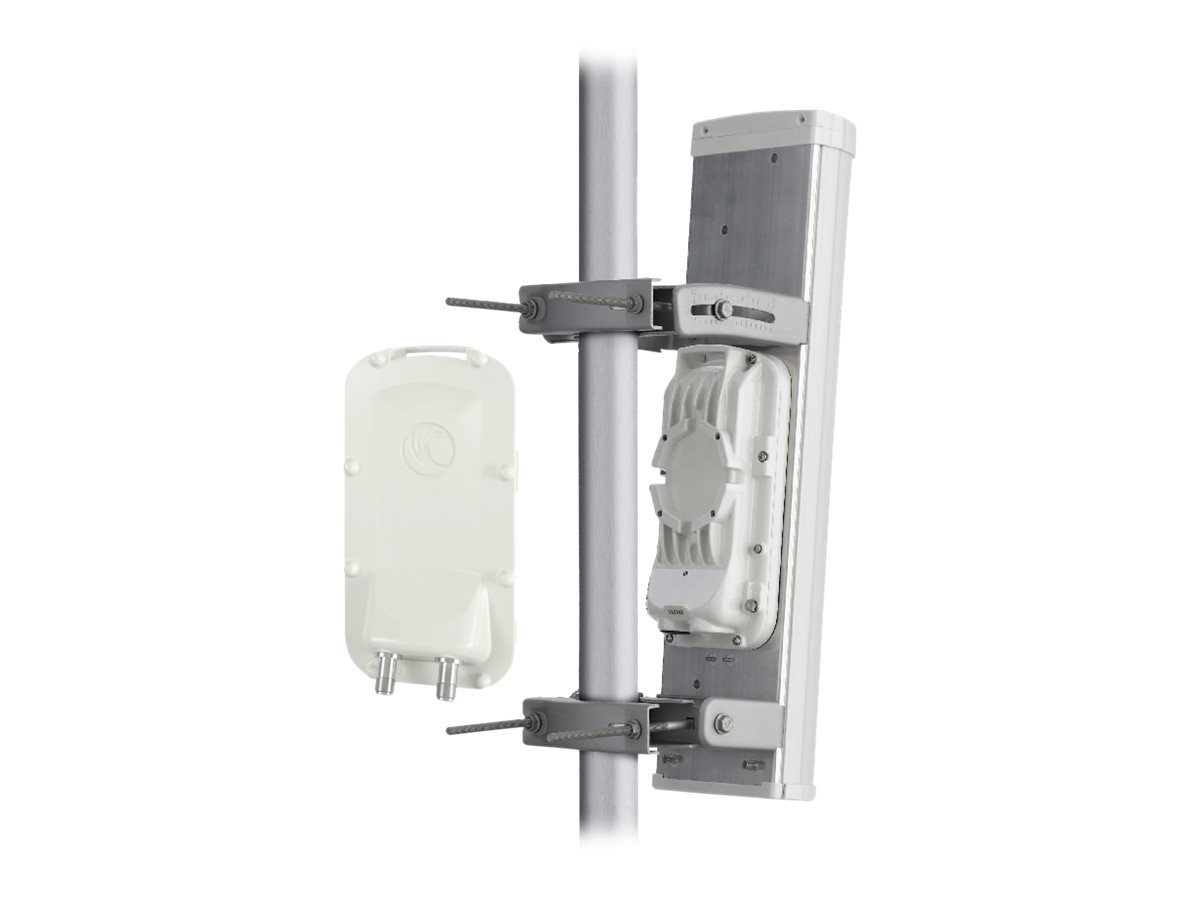

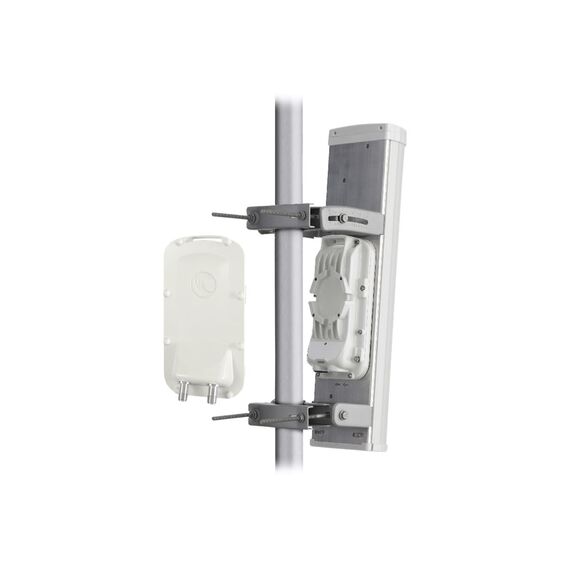

Cambium Networks PMP 450i Connectorized - Wireless bridge - 1GbE - 5 GHz - DC power | C050045A003A
C050045A003A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Wireless bridge |
| Ruggedized Design | Outdoor |
| Width | 13.4 cm |
| Depth | 6.4 cm |
| Height | 26 cm |
| Weight | 2 kg |
| Localisation | Europe |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | 64 QAM, 256 QAM, QPSK, 16 QAM, OFDM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, FTP |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS |
| Frequency Band | 5 GHz |
| Max Range Open Space | 64 km |
| Capacity | Subscribers per sector: up to 238 |
| Features | DiffServ support, Quality of Service (QoS), 2T2R MIMO technology, IPv4 support, 2x2 MIMO technology |
| Encryption Algorithm | DES, 128-bit AES, FIPS 197 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ad |
| Aerial | |
| Antenna | Internal |
| Gain Level | 18 dBi |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x aerial - N connector |
| Miscellaneous | |
| MTBF | 40 years |
| Compliant Standards | IEC 61000-4-5, IP67, FIPS 197, IP66, EN 301 893 V1.7.1, EN 302 625 V1.1.1, EN 302 502 V1.2.1 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Voltage Required | DC 48 - 59 V |
| Power Consumption Operational | 55 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
