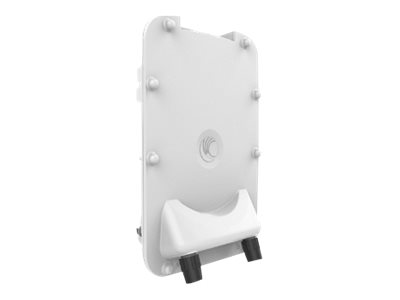

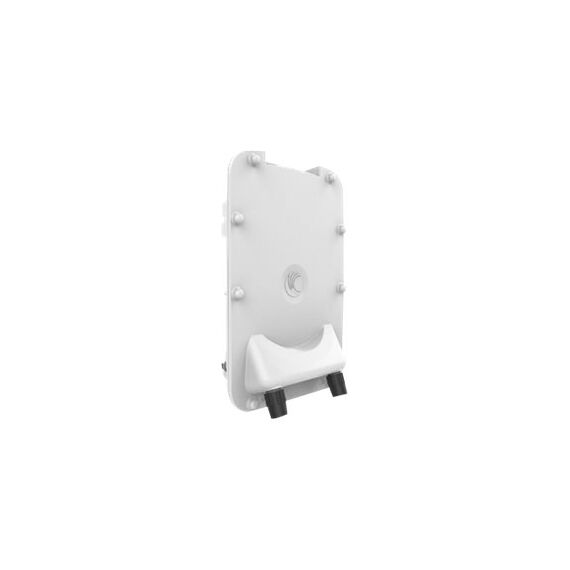

Cambium Networks PTP 550 Connectorized - Wireless bridge - 1GbE - 5 GHz - with EU Line Cord | C050055H003A
C050055H003A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Rugged IP66/67 rated metal enclosure protects the radio from extreme conditions and solar radiation
- E-alignment GUI provides the installer with an accurate and reliable way of installing
- Each channel can have independent channel bandwidth that provides for flexibility in channel selection, band selection and address throughput requirements
- Constantly optimizes the channel of operation to maximize link reliability and performance with Dynamic Channel Selection
Product Specification
Device Type | Wireless bridge |
Ruggedized Design | Outdoor |
Width | 18.5 cm |
Depth | 8.8 cm |
Height | 27.8 cm |
Weight | 1.6 kg |
Localisation | Europe |
Bundled with | EU Line Cord |
Networking | |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 1.4 Gbps |
Line Coding Format | 64 QAM, 256 QAM, QPSK, 16 QAM |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Network / Transport Protocol | IPv4, IPv6 |
Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
Frequency Band | 5 GHz |
Max Range Open Space | 200 km |
Features | DiffServ support, IPv6 support, Quality of Service (QoS), IPv4 support, Precision Time Protocol (PTP), Dynamic Channel Selection (DCS), spectrum analyser, LINKPlanner support, cnMaestro support, ARQ support |
Encryption Algorithm | 128-bit AES |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ad |
Aerial | |
Antenna | Internal |
Gain Level | 23 dBi |
Expansion / Connectivity | |
Interfaces | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x network - SFP (mini-GBIC) |
Miscellaneous | |
Compliant Standards | ETSI, EN55022, CISPR 22, CB, FCC Part 15 B, FCC Part 15.247, FCC Part 15 C, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C108.8 Class B, ATEX Directive, IP67, IP66, EN 301 489, RSS-210 Issue 7, WEEE 2002/96/EC, CSA 22.2 No. 60950-1, EN 301 489-1, RSS-111, IEEE 1588v2 |
Power | |
Power Consumption Operational | 20 Watt |
Environmental Parameters | |
Min Operating Temperature | -40 °C |
Max Operating Temperature | 60 °C |
