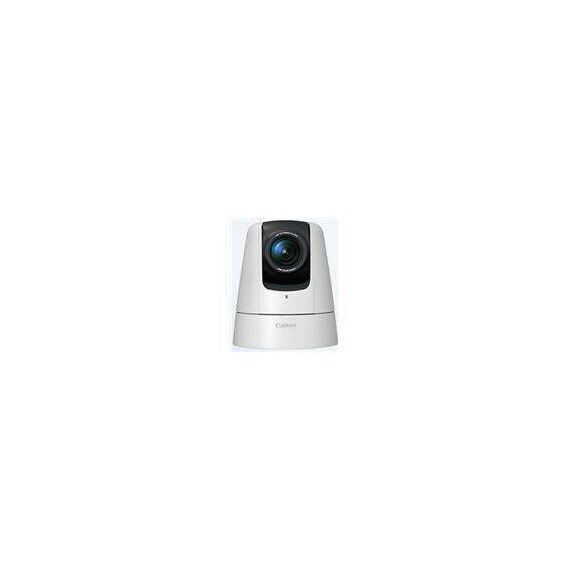

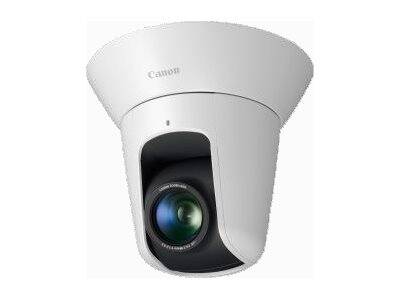

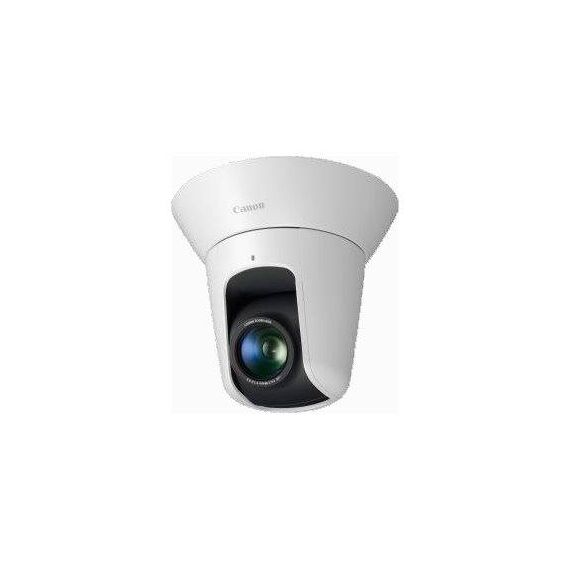

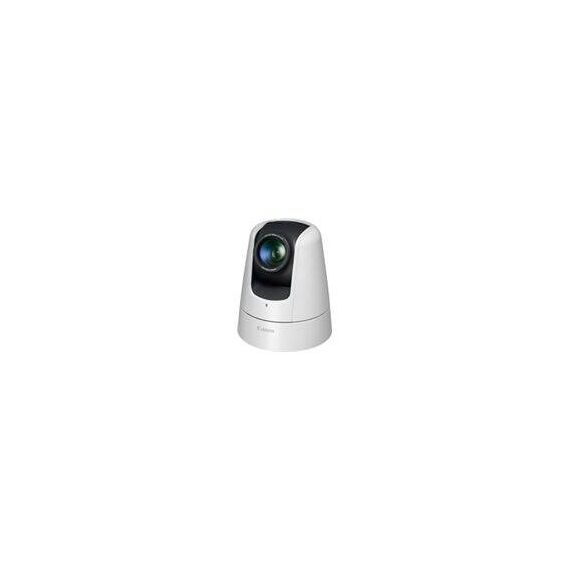

Canon VB-H47 - Network surveillance camera - PTZ - indoor - colour (Day&Night) - 2 MP - 1920 x 1080 - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / AC 24 V / PoE Plus | 02579-001
Please sign in so that we can notify you about a reply
Special Fetures
- 20x optical zoom with fast and precise pan/tilt mechanism
- 2.0 megapixel sensor (native 1920 x 1080 Full HD resolution)
- Updated 1/2.8" type CMOS type CMOS sensor with superb low light performance
- Enhanced presets
- Advanced image processor helps maximize image quality and minimize power consumption
- Area specific data size reduction and motion adaptive noise reduction
- Wide Dynamic Range (WDR)
- Simultaneous streaming of H.265. H.264, and M-JPEG codecs in multiple resolutions
- 2-way audio supporting both AAC-LC and G-711 audio formats
- On-board video analytics and versatile functions
- ONVIF profile T conformant
- Built-in SD card slot with enhanced SD card functionality
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | AAC-LC, G.711 |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Width | 13.2 cm |
| Depth | 13.2 cm |
| Height | 15.5 cm |
| Weight | 1.1 kg |
| Camera | |
| Type | Colour - Day&Night - pan / tilt / zoom - indoor |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Digital Zoom | 16 |
| Exposure Range | 1 sec - 1/16000 sec |
| Minimum Illumination | 0.02 lux - colour - F1.6 - 50 IRE - shutter 1/30 sec ¦ 0.003 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec |
| Video Capture | 1920 x 1080 @ 60 fps ¦ 1280 x 960 @ 30 fps ¦ 1280 x 960 @ 30 fps ¦ 640 x 480 @ 30 fps |
| Features | Exposure compensation, auto exposure control, progressive scanning, image stabilizer, Wide Dynamic Range (WDR), face detection, 64 preset positions, infrared cut filter, Privacy Mask Function, Smart Shade Control (SSC), Motion Adaptive Digital Noise Reduction, Moving Object Detection, Removed Object Detection, Abandoned Object Detection, Camera Tampering Detection, Volume Detection, Event Notification, Passing Detection, Shutter Priority mode, Aperture Priority mode, flickerless, High Dynamic Range (HDR), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, I-Frame Interval, auto white balance, Haze compensation, Area-Specific Data Size Reduction (ADSR), ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, PTZ ready, night mode, Multi-Bitrate (MBR), simultaneous client access |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focal Length | 4.7 mm - 94 mm |
| Lens Iris | F/1.6-3.5 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 30 cm |
| Horizontal Field of View (degree) | 2.5 - 62.4 |
| Vertical Field of View (degree) | 1.9 - 36.3 |
| Panning | |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 150 |
| Tilting | |
| Range (degree) | -90 to +10 |
| Speed (degree/sec) | Up to 150 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, POP3, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, TLS, IPv4, IPv6, RTCP, SSL, WV-HTTP, EAP |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 2 |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm mono jack ¦ Audio line out - 3.5 mm mono jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | ICES-003 Class A, FCC Part 15 B Class A, AS/NZS, VCCI Class A, RCM, EN 55032 Class A, EN 55035, EN/IEC 63000:2018 |
| Colour | White |
| Power | |
| Power Requirements | DC 12 V / AC 24 V / PoE Plus |
| Power Device | 9.1 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, Canon Camera Management Tool |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 5 - 90% (non-condensing) |
Features - AXIS - 02579-001
More Details
Product Code
CF76609
EAN Code
4549292202090
Manufacturer
AXIS
