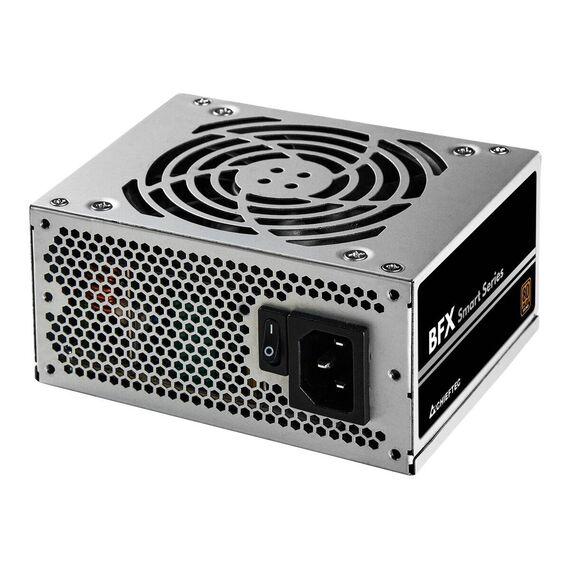

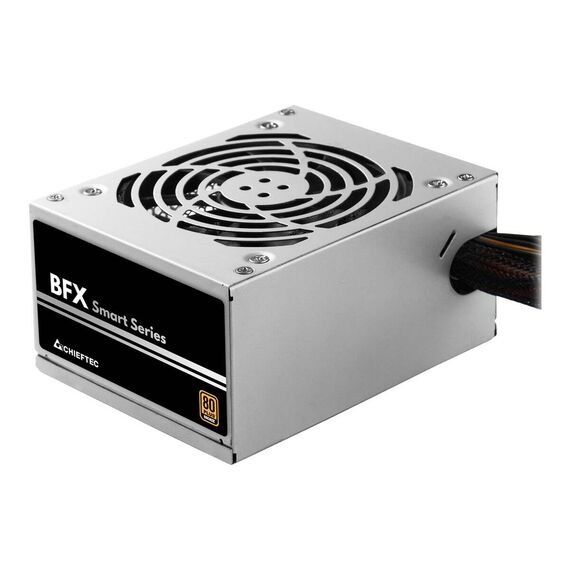

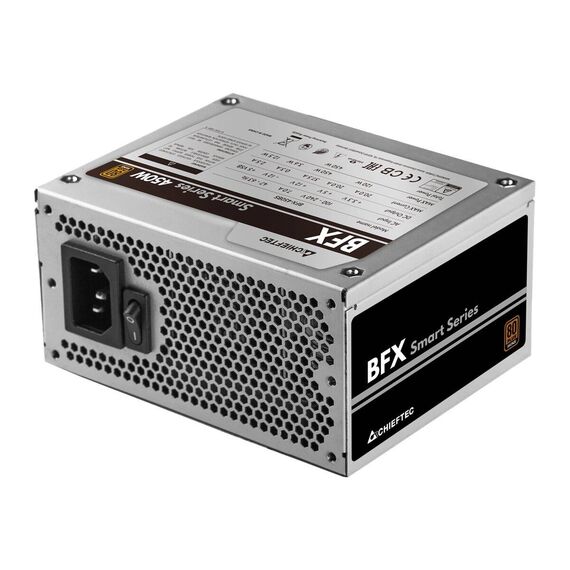

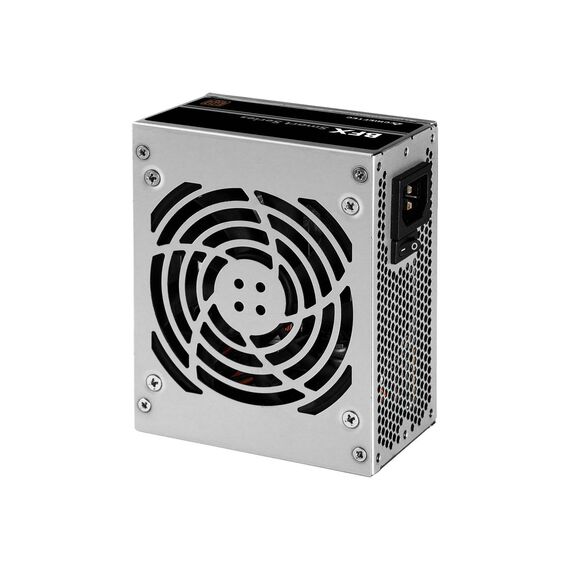

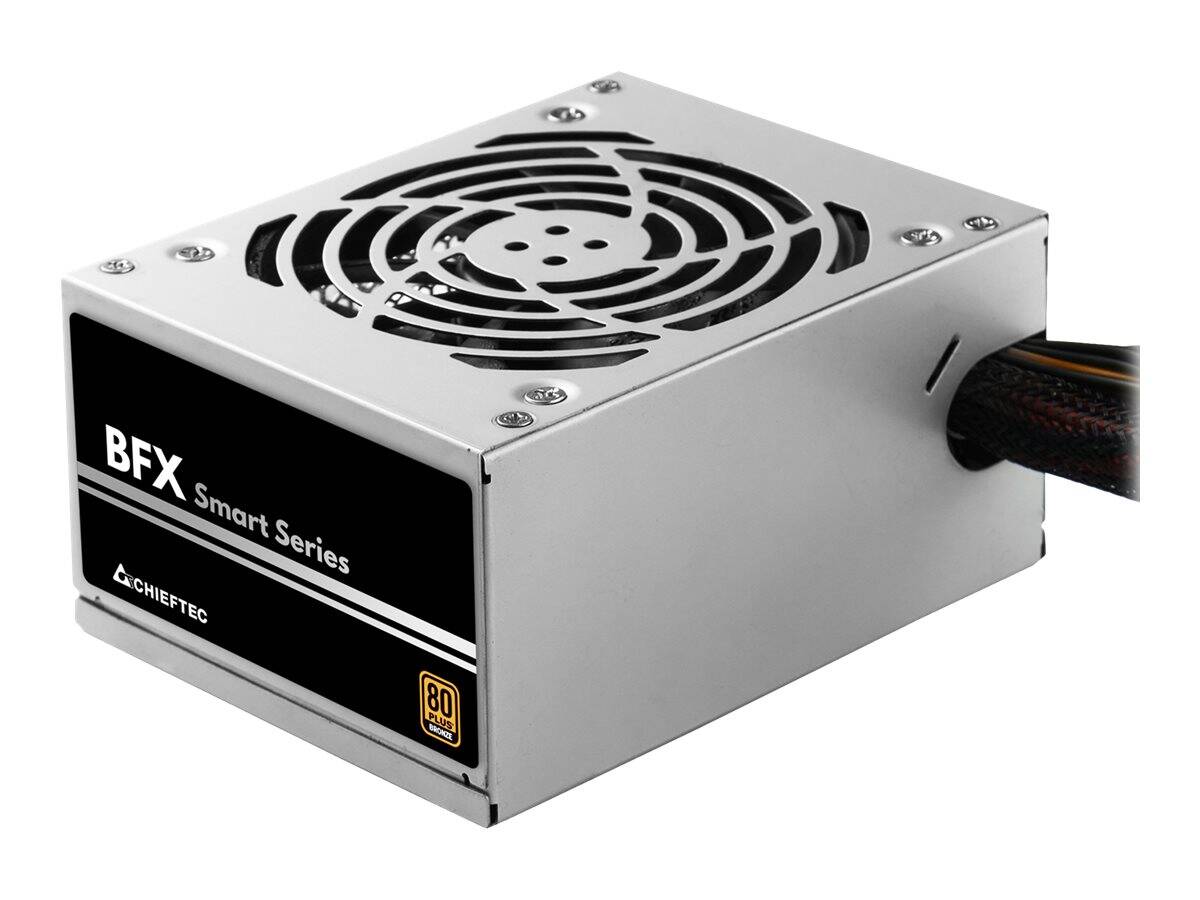

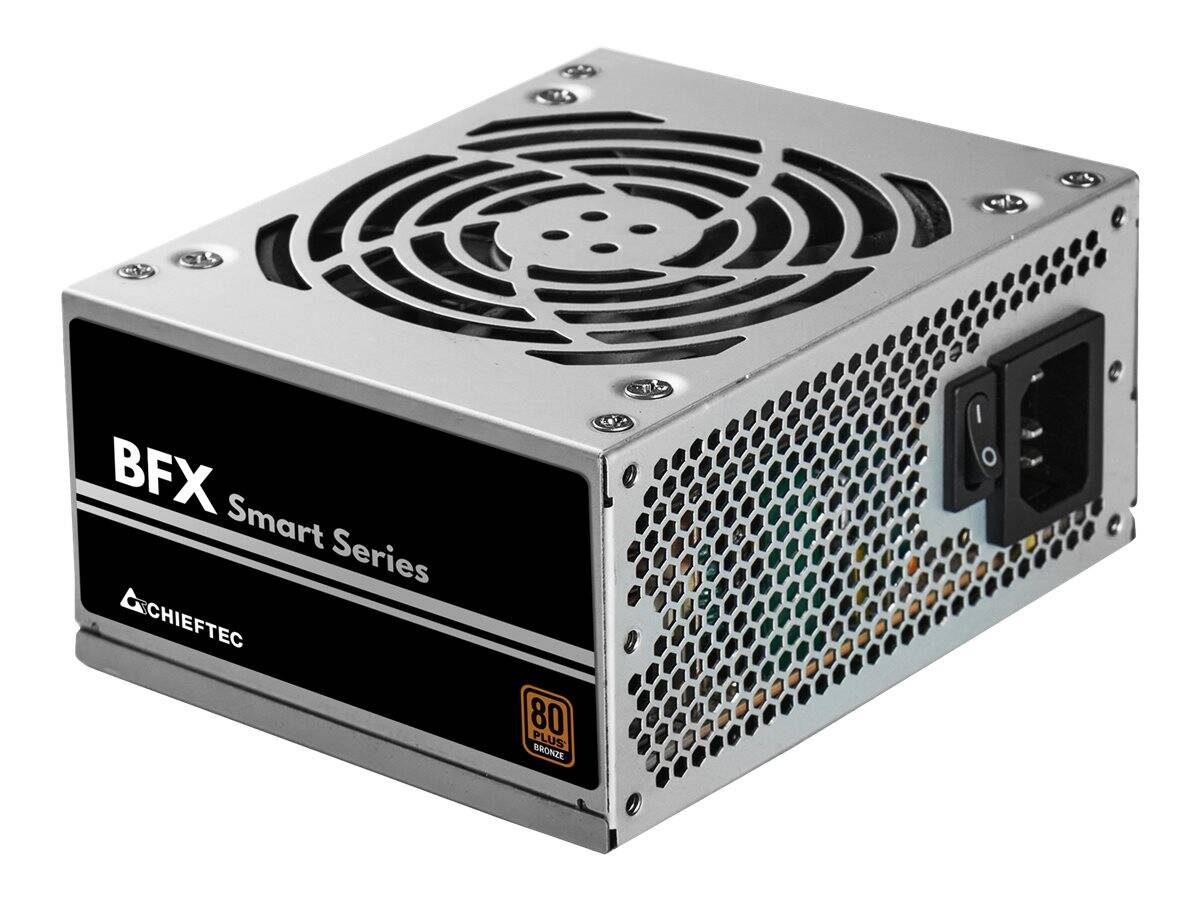

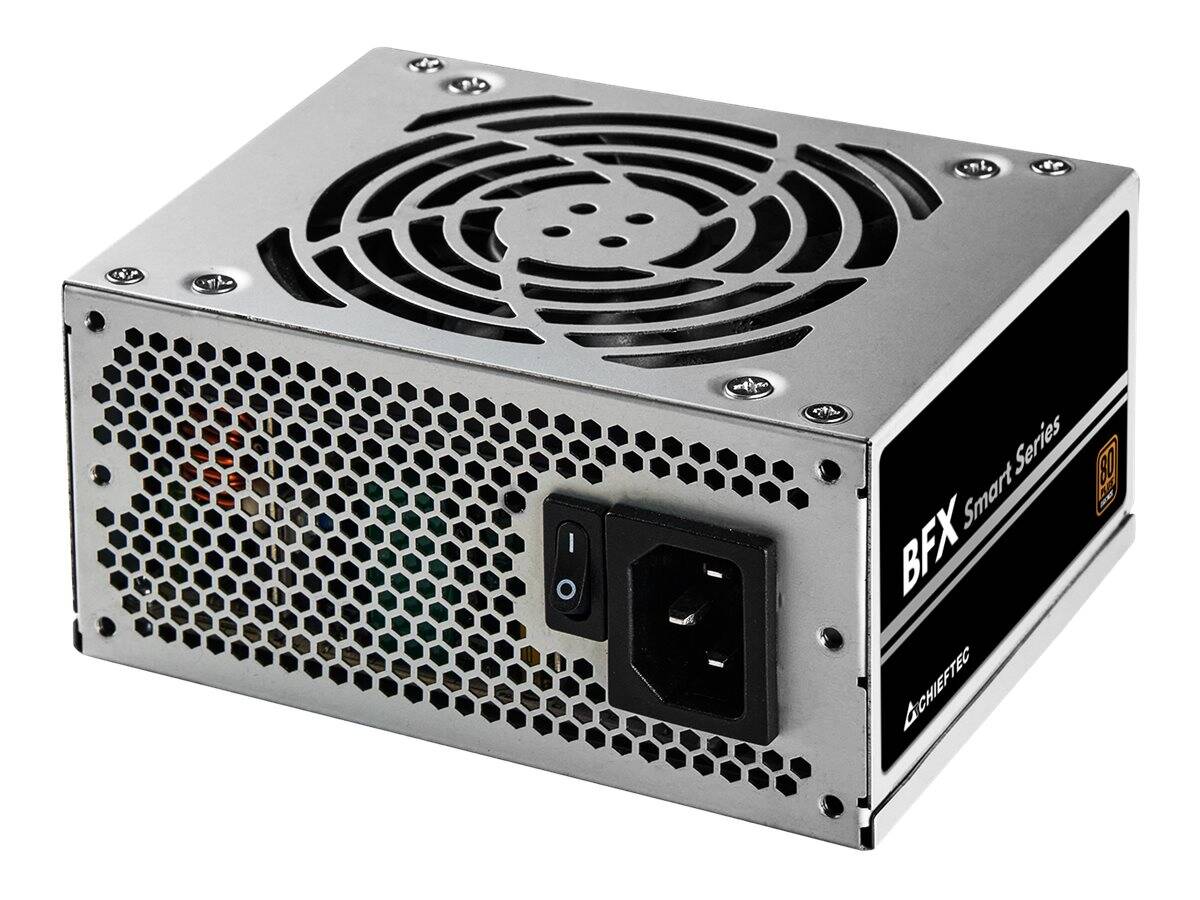

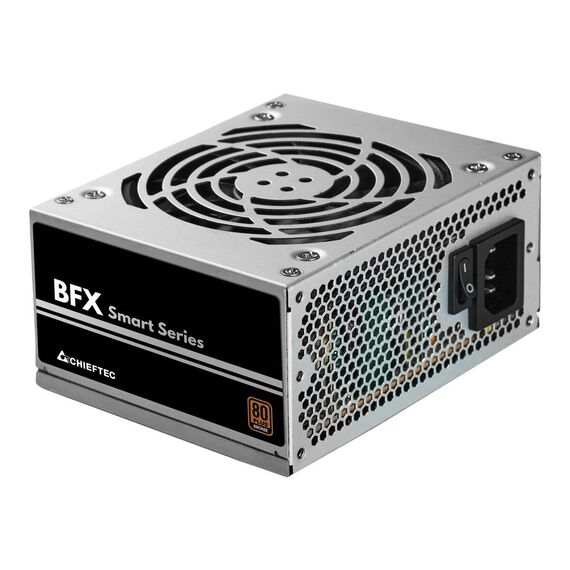

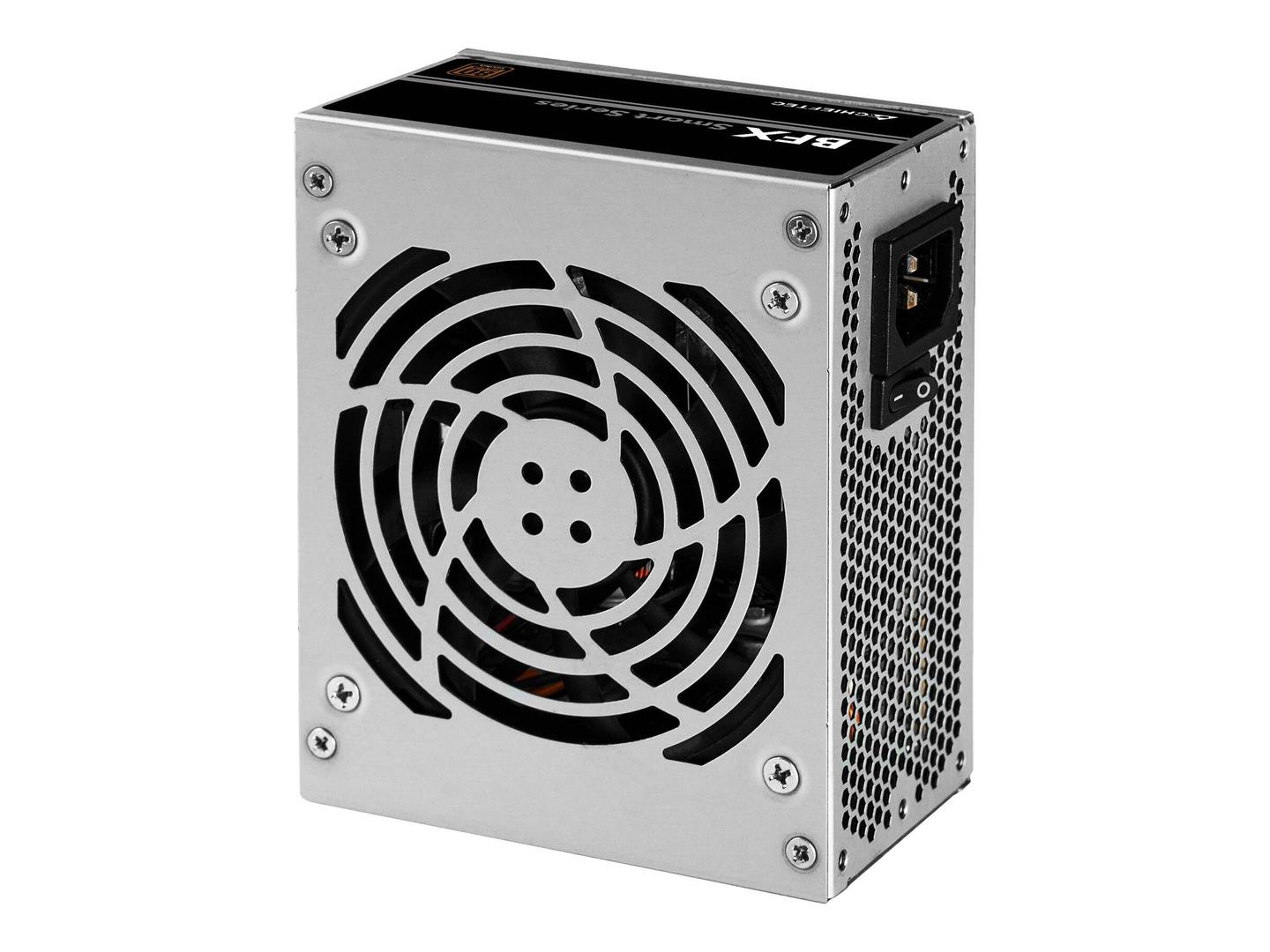

Chieftec BFX Smart Series 350W - Power supply (internal) - ATX12V 2.3/ SFX12V - 80 PLUS Bronze - AC 100-240 V - 350 Watt - active PFC | BFX-350BS
Please sign in so that we can notify you about a reply
Special Fetures
- 80 PLUS Bronze certified efficiency
- DC-to-DC technology
- OCP and OTP protection
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3/ SFX12V |
| PSU Form Factor | SFX |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 4 PIN internal power ¦ 3 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 350 Watt |
| Output Current | +5V - 18 A ¦ +3.3V - 18 A ¦ +12V1 - 29.16 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Power Factor (PF) | 0.9 |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | |
| Cooling System | 90 mm fan |
| Features | Over current protection, over voltage protection, overload protection, undervoltage protection, short-circuit protection, thermal protection, DC-DC technology, non-modular, Automatic Fanspeed Control (AFC), Surge & Inrush Protection (SIP) |
| Compliant Standards | CB, RoHS, ErP Ready, EAC, TUV Rheinland |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width | 12.5 cm |
| Depth | 10 cm |
| Height | 6.4 cm |
| Weight | 1 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 1.3 kg |
Features - Chieftec - BFX-350BS
More Details
Product Code
04:380930
Manufacturer
Chieftec
