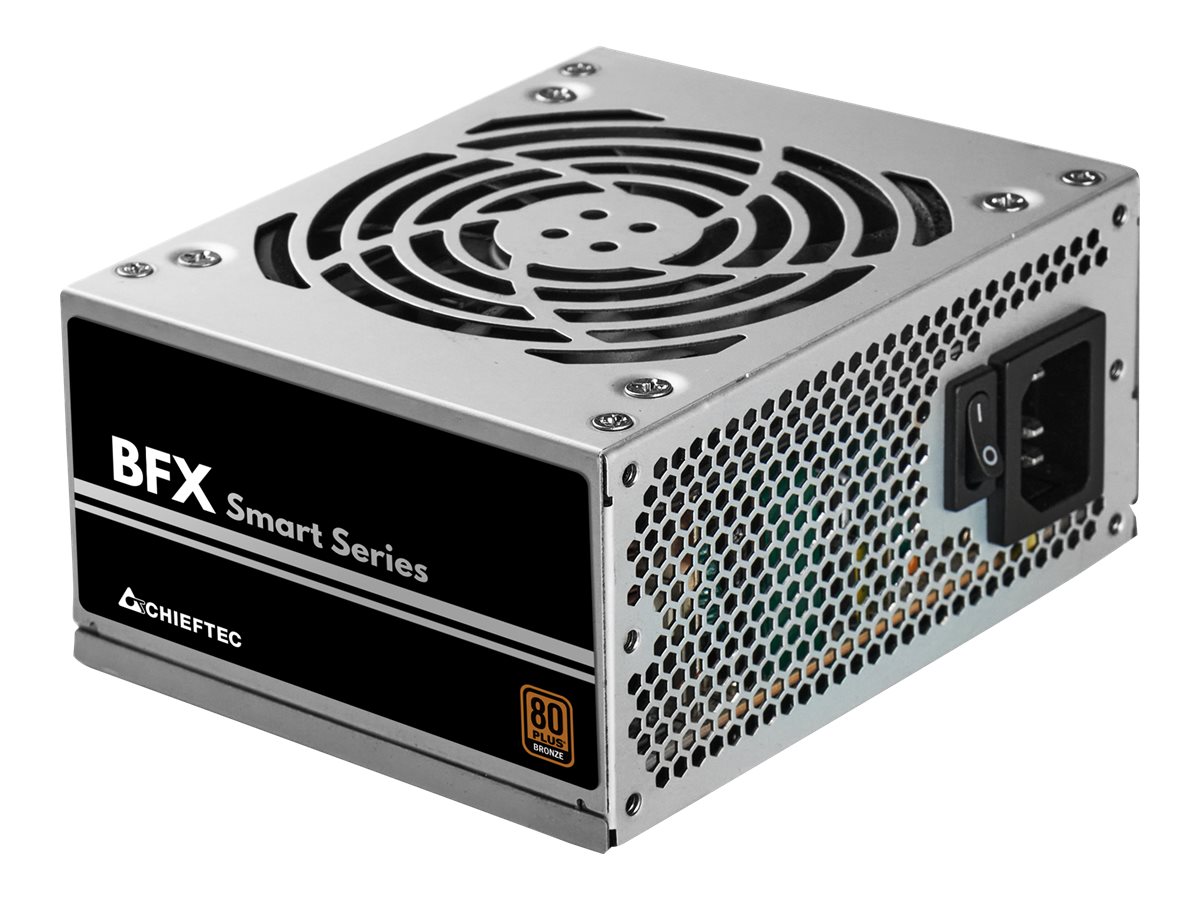

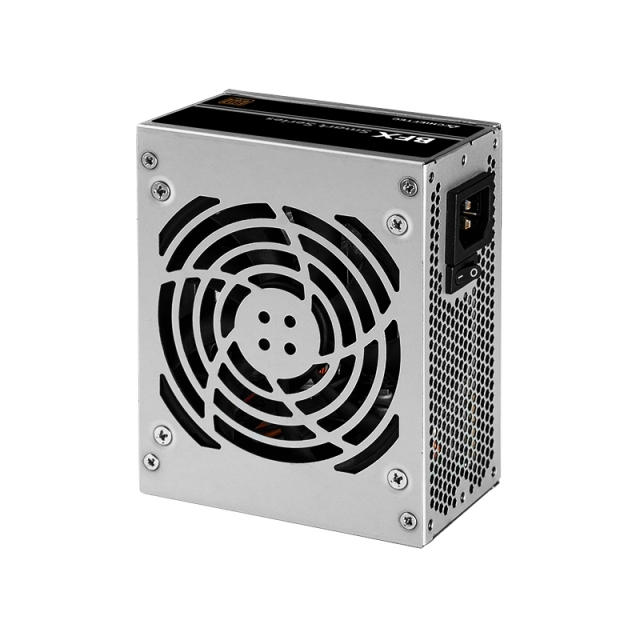

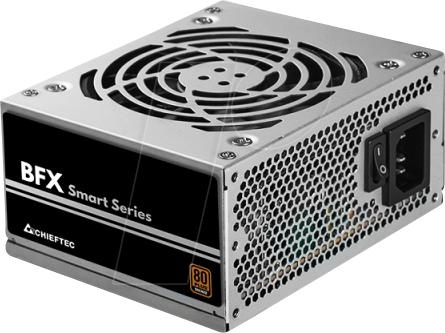

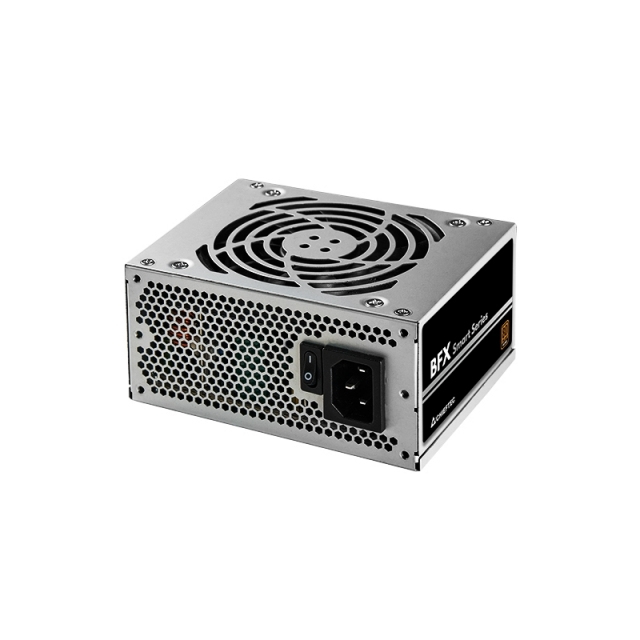

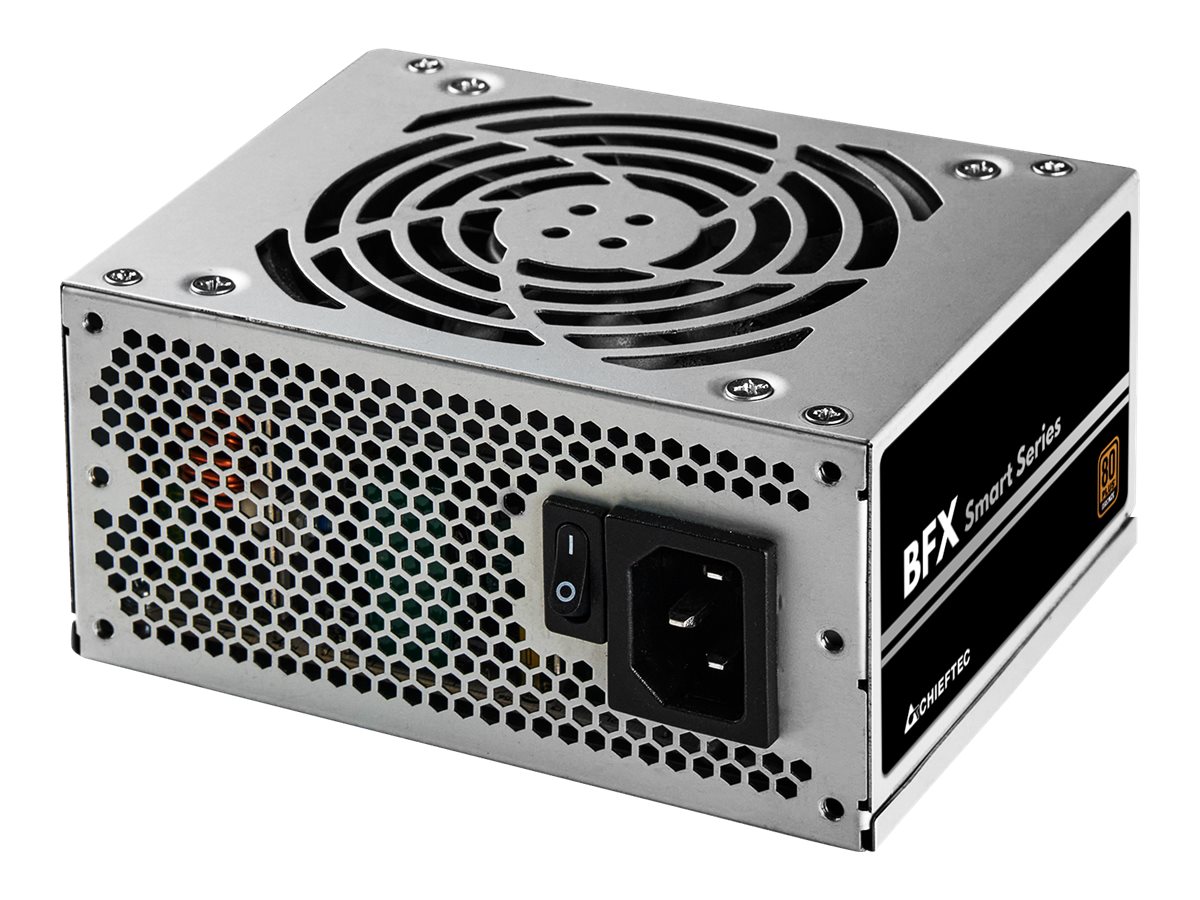

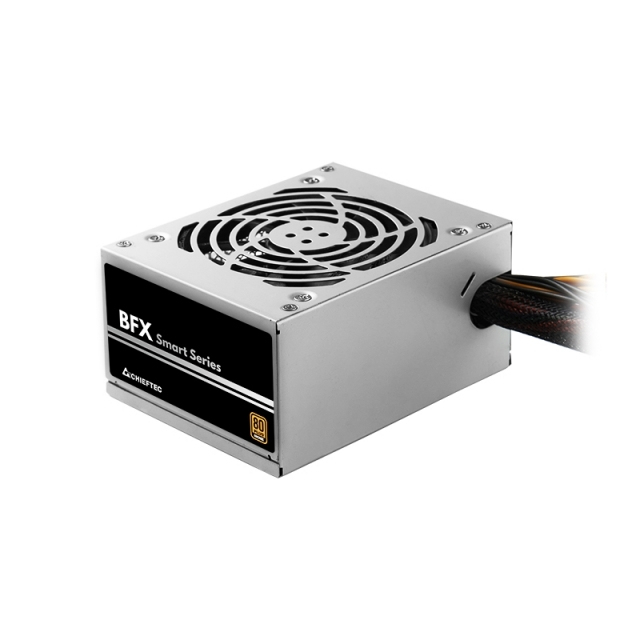

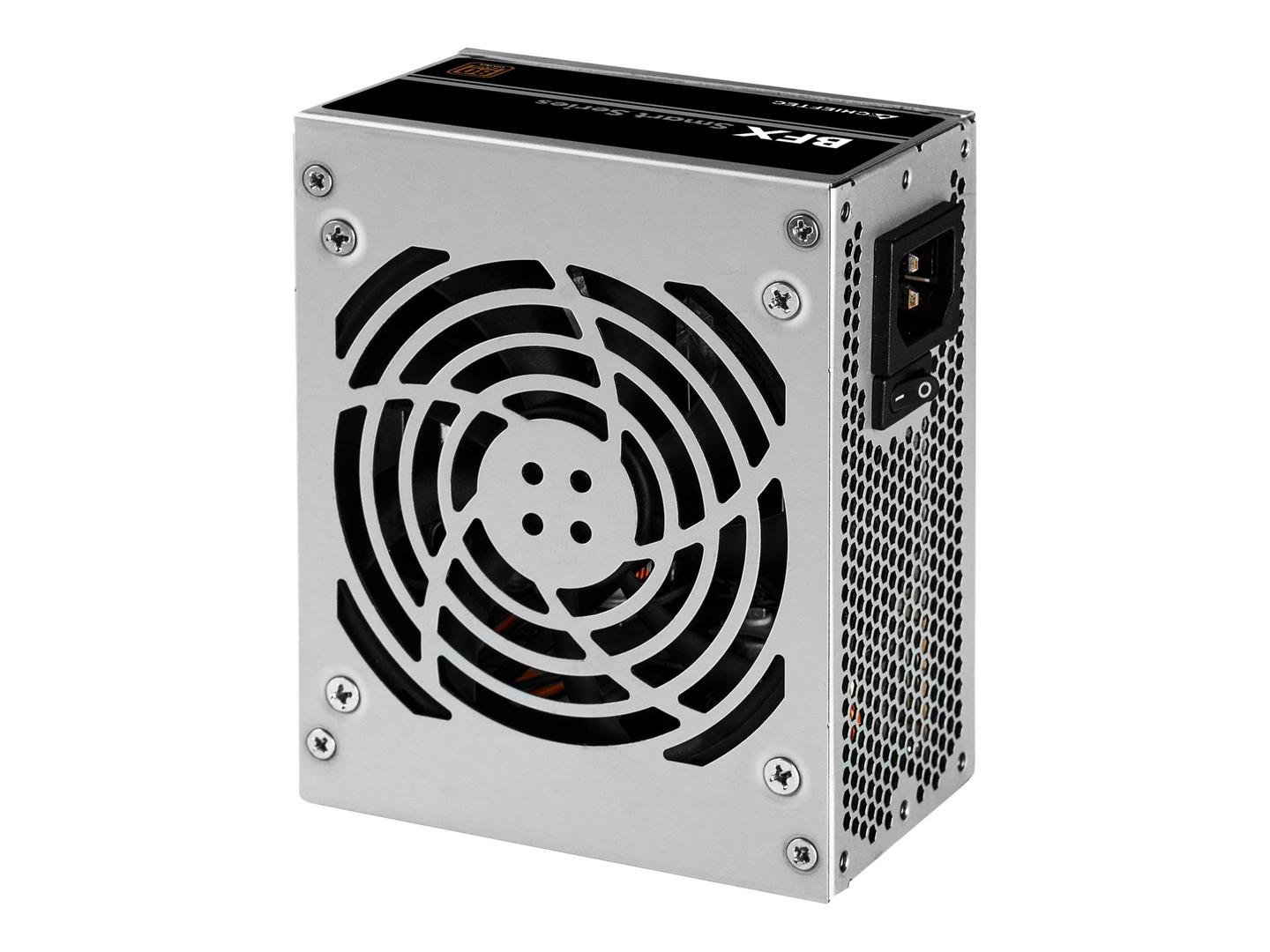

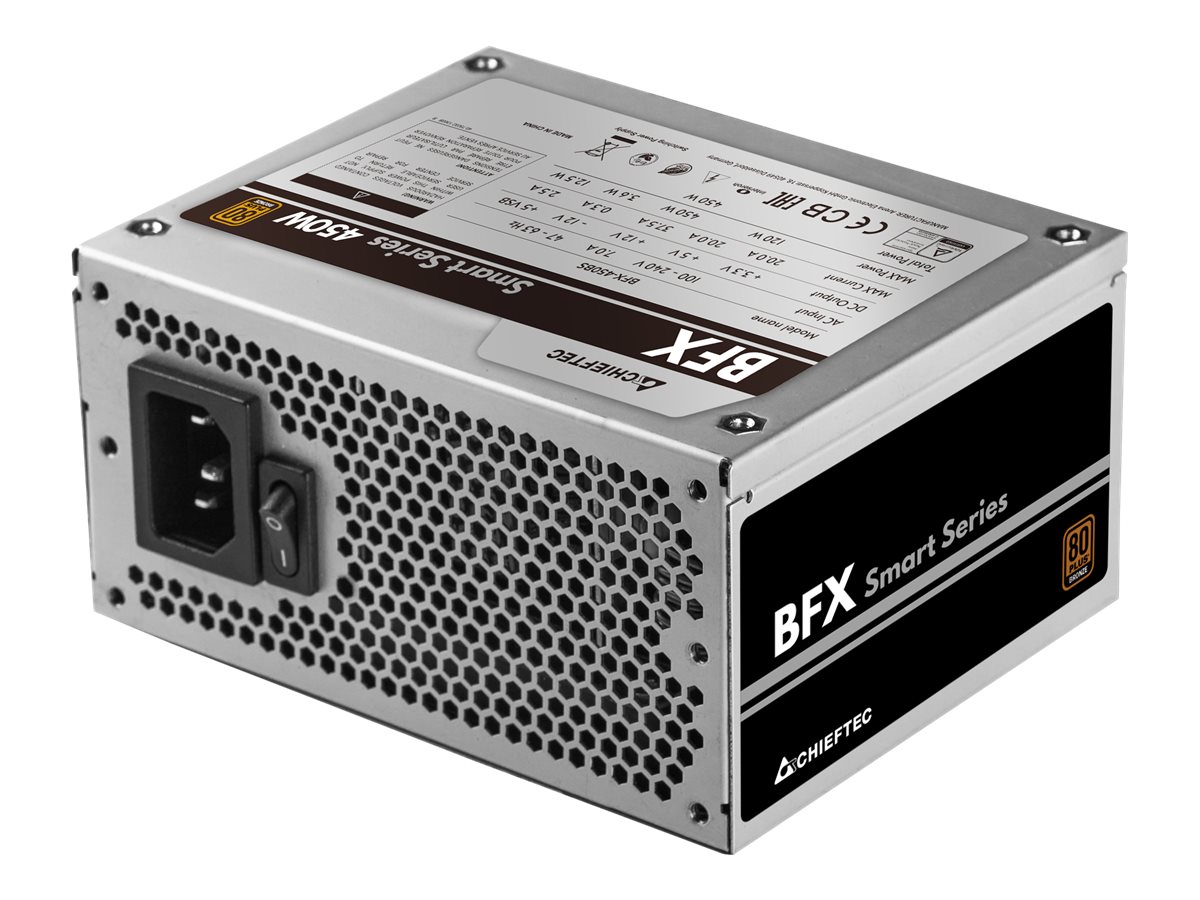

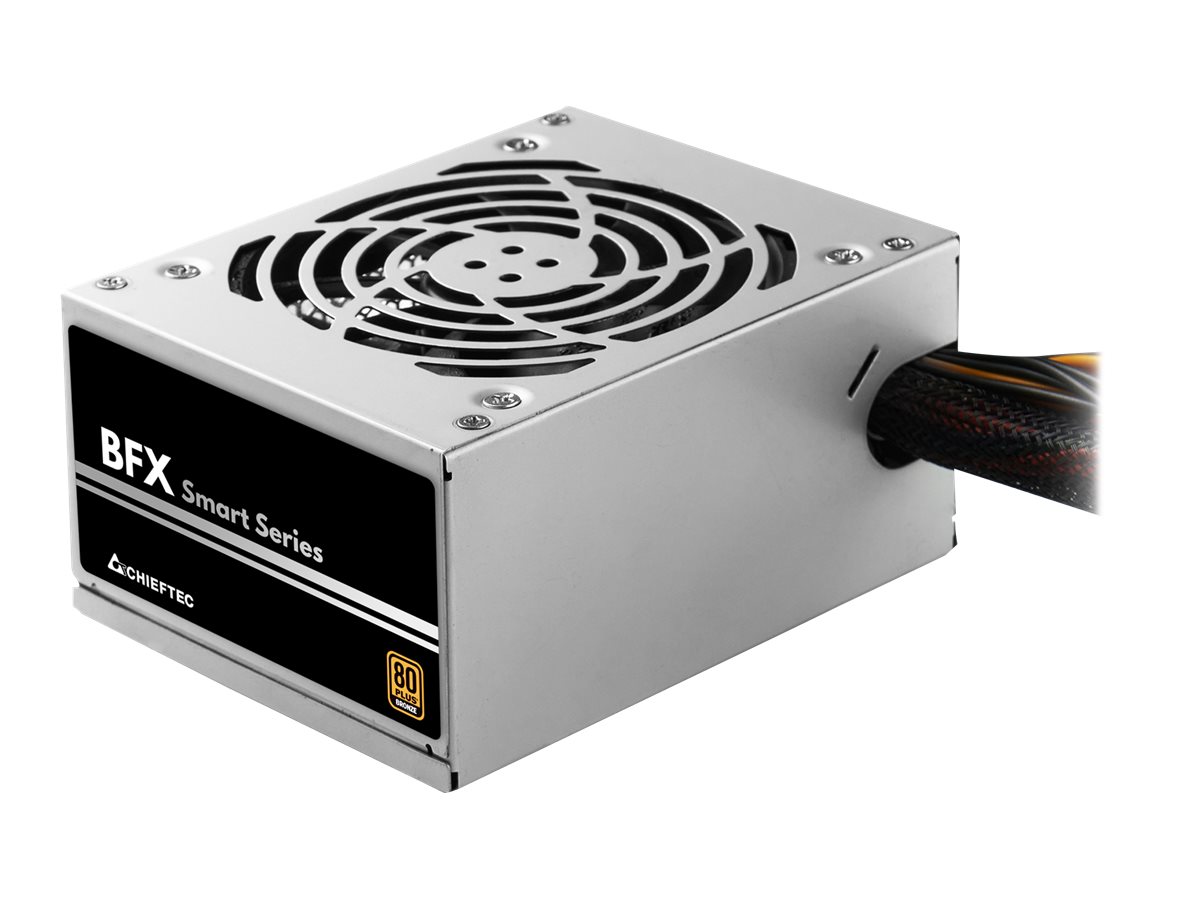

Chieftec BFX Smart Series 450W - Power supply (internal) - ATX12V 2.3/ SFX12V - 80 PLUS Bronze - AC 100-240 V - 450 Watt - active PFC | BFX-450BS
BFX-450BS
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- 80 PLUS Bronze certified efficiency
- DC-to-DC technology
- OCP and OTP protection
Product Specification
Device Type | Power supply - active Power Factor Correction (PFC) - internal |
Specification Compliance | ATX12V 2.3/ SFX12V |
PSU Form Factor | SFX |
Power Device | |
Input Voltage | AC 100-240 V |
Frequency Required | 47 - 63 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section <br /> 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section <br /> 2 x 8 pin PCI Express power with detachable 2 pin section <br /> 2 x 4 PIN internal power <br /> 3 x 15 pin Serial ATA power <br /> 1 x 4 PIN mini-power connector |
Output Voltage | +3.3, +5, ?12 V |
Power Capacity | 450 Watt |
Output Current | +5V - 20 A <br /> +3.3V - 20 A <br /> +12V1 - 37.5 A <br /> -12V - 0.3 A <br /> +5VSB - 2.5 A |
Power Factor (PF) | 0.9 |
80 PLUS Certification | 80 PLUS Bronze |
Miscellaneous | |
Cooling System | 90 mm fan |
Features | Automatic Fanspeed Control (AFC), over current protection, overload protection, thermal protection, over voltage protection, short-circuit protection, Surge & Inrush Protection (SIP), undervoltage protection, DC-DC technology, non-modular |
Compliant Standards | CB, EAC, RoHS, ErP Ready, TUV Rheinland |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Dimensions & Weight | |
Width | 12.5 cm |
Depth | 10 cm |
Height | 6.4 cm |
Weight | 1.03 kg |
Dimensions & Weight (Shipping) | |
Shipping Weight | 1.5 kg |
