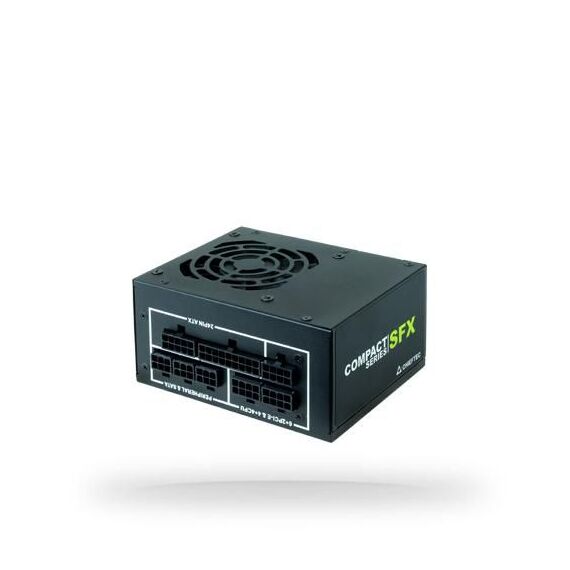

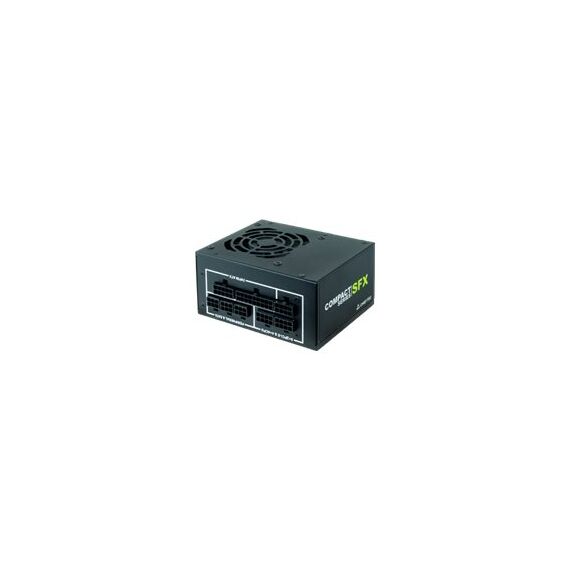

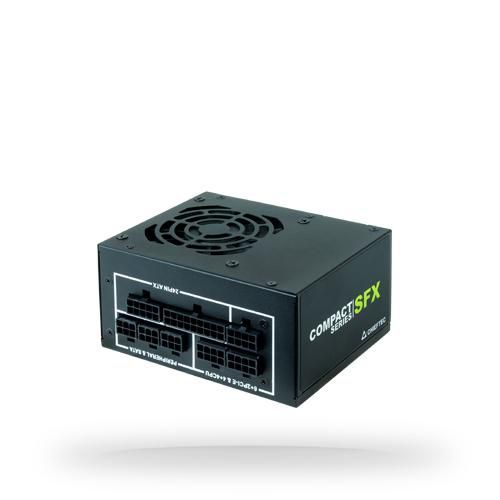

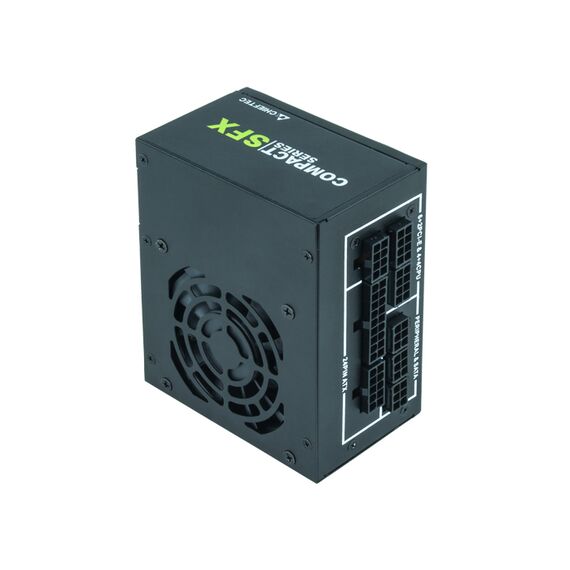

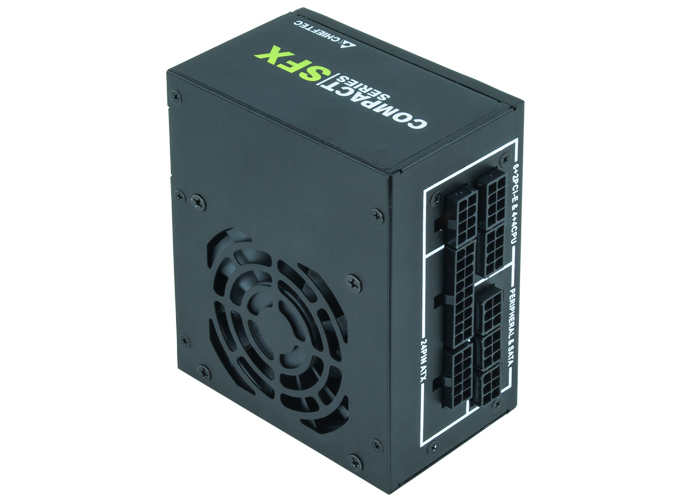

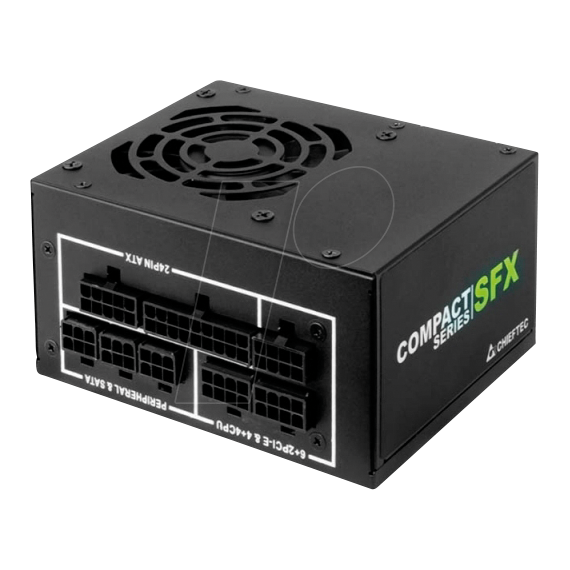

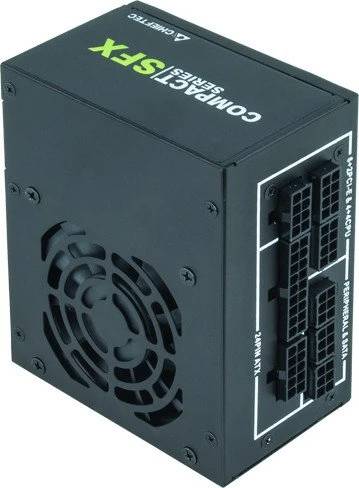

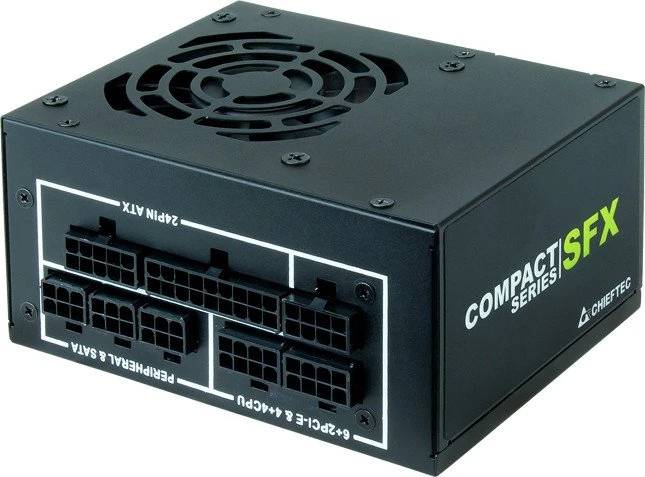

Chieftec Compact Series CSN-650C - Power supply (internal) - ATX12V 2.3/ SFX12V - 80 PLUS Gold - AC 100-240 V - 650 Watt - active PFC - black | CSN-650C
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3/ SFX12V |
| PSU Form Factor | SFX |
| Colour | Black |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |

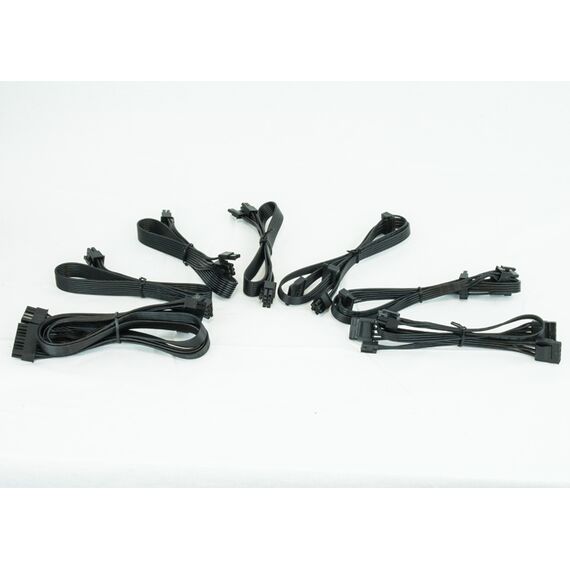

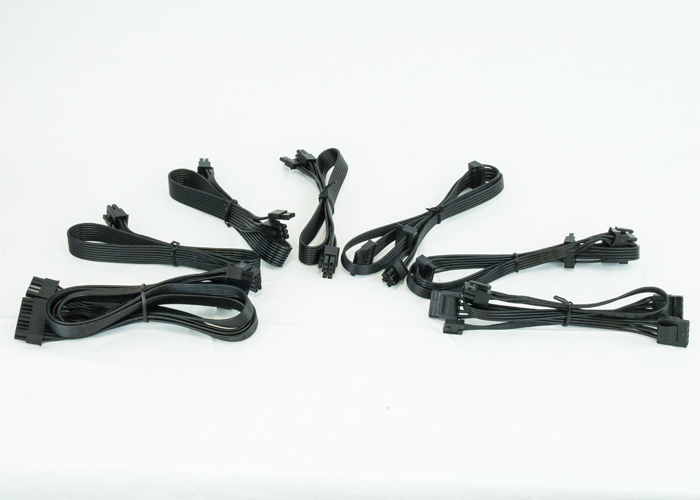

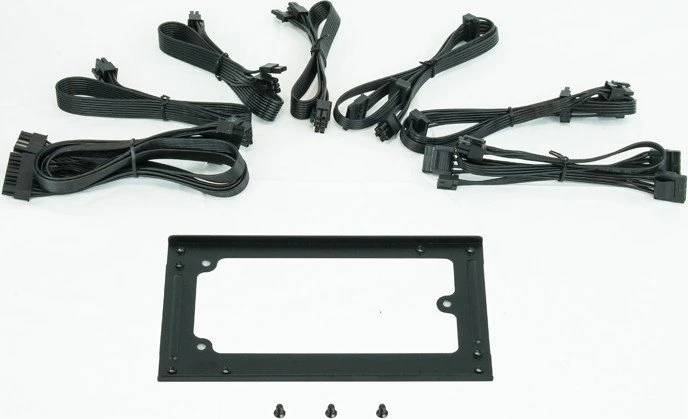

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Output Current | +5V - 15 A ¦ +3.3V - 18 A ¦ +12V1 - 54 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 90%+ |
| Power Factor (PF) | 0.9 |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |
| Cooling System | 80 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, SLI ready, overload protection, undervoltage protection, short-circuit protection, CrossFireX ready |
| Compliant Standards | TUV, CB, RoHS, ERP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width | 12.5 cm |
| Depth | 10 cm |
| Height | 6.4 cm |
