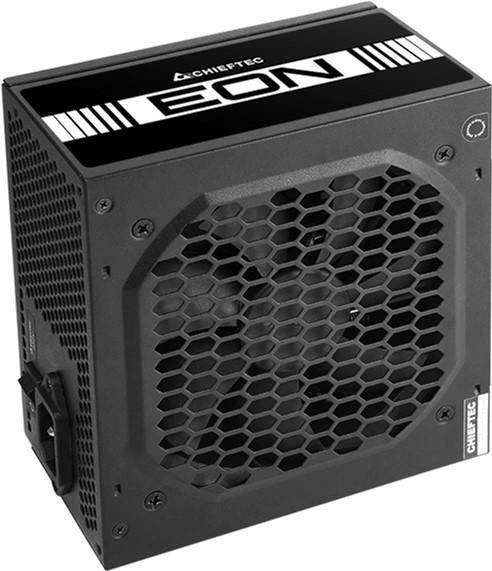

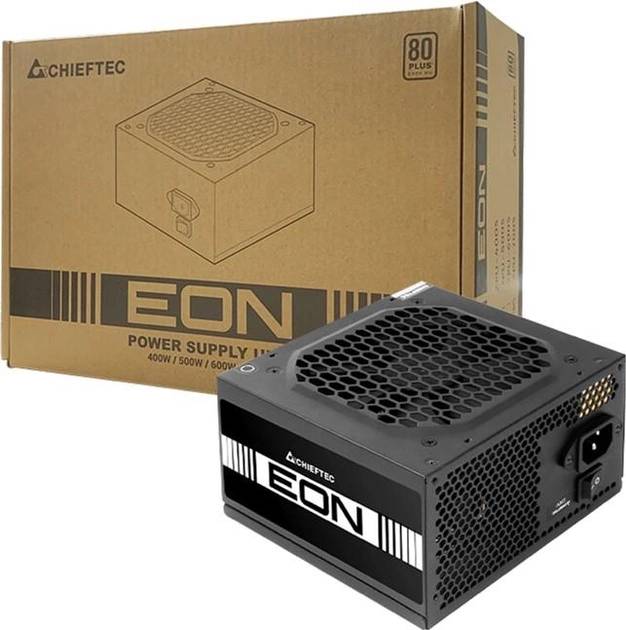

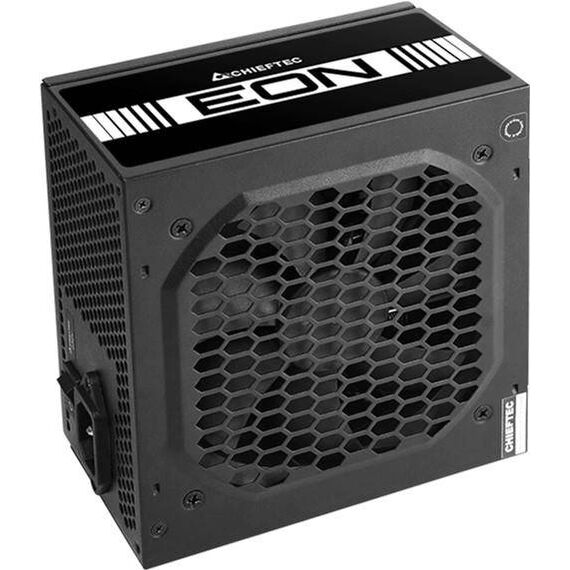

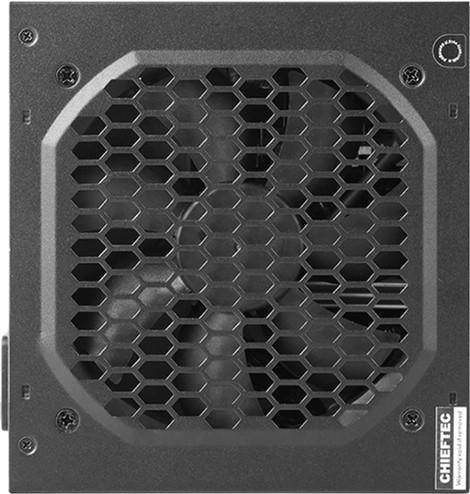

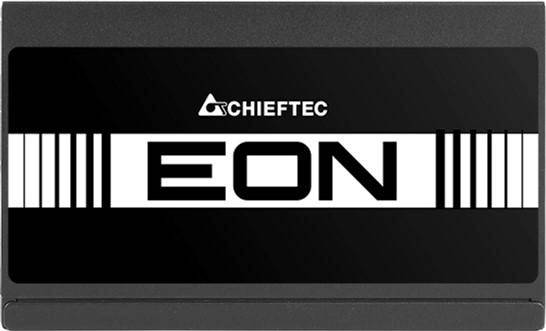

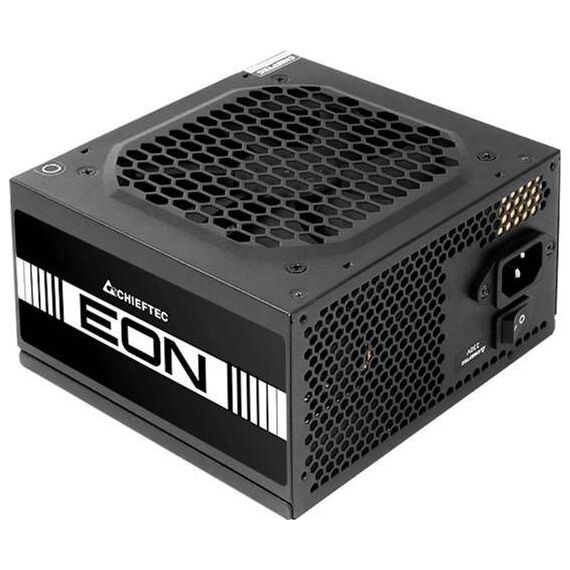

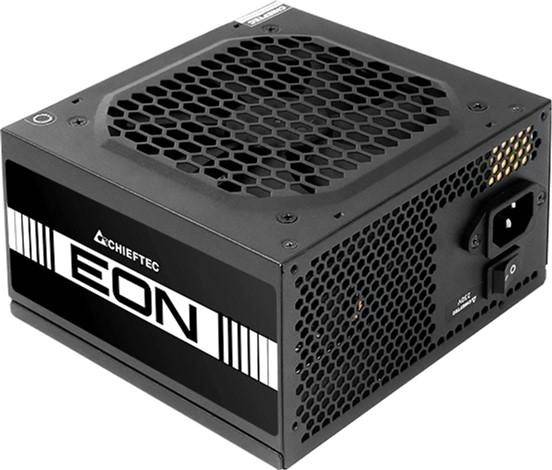

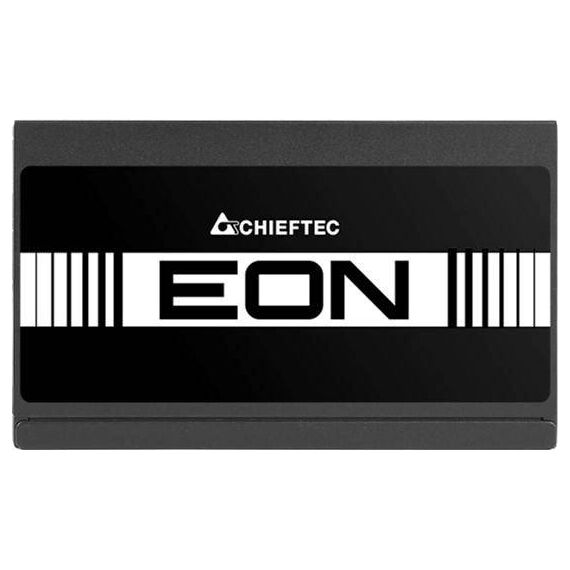

Chieftec EON Series ZPU-700S / Power supply (internal) / ATX12V 2.3 / 80 PLUS / AC 200-240 V / 700 Watt / active PFC / elegant black | ZPU-700S
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3 |
| PSU Form Factor | ATX |
| Colour | Elegant black |
| Power Device | Power Device |
| Input Voltage | AC 200-240 V |
| Frequency Required | 50 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 700 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 53 A ¦ -12V - 0.4 A ¦ +5VSB - 2.5 A |
| 80 PLUS Certification | 80 PLUS |
| Miscellaneous | Miscellaneous |

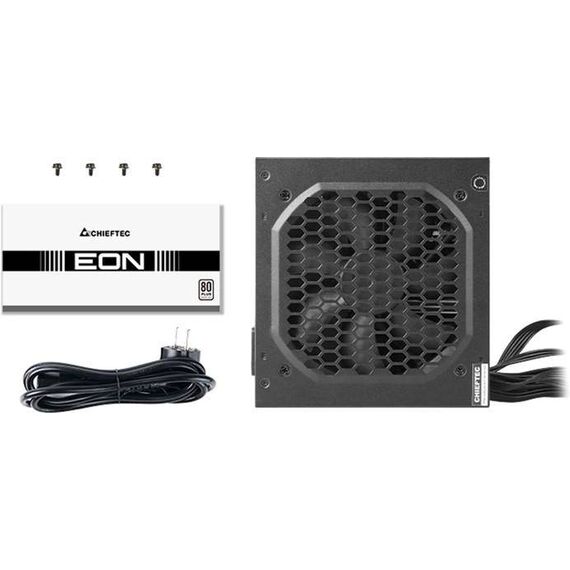

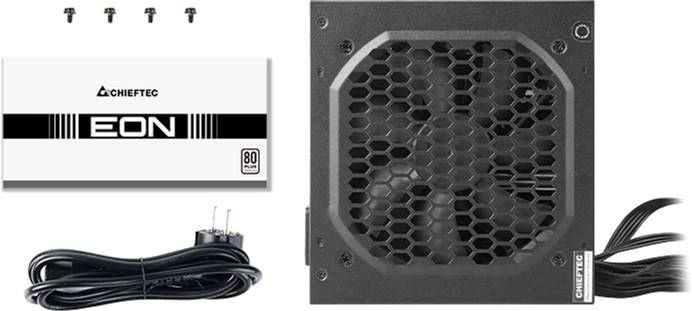

| Cables Included | AC power cable ¦ Power 24 pin ATX cable 65 cm ¦ Power 8 pin +12V with detachable 4 pin section modular cable 70 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 55 cm ¦ 2 x power 15 pin SATA cable 45 cm |

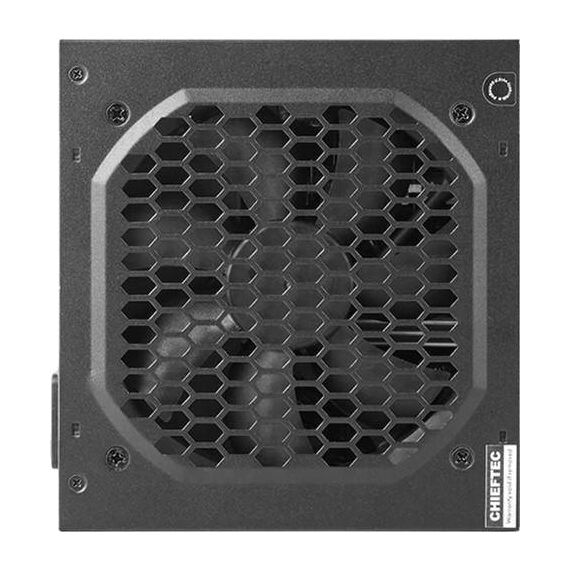

| Cooling System | 120 mm fan |
| Features | Over voltage protection, overload protection, undervoltage protection, short-circuit protection, surge & inrush protection, Automatic Fanspeed Control (AFC) |
| Compliant Standards | CB, RoHS, ERP, EAC, TUV Rheinland |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - Chieftec - ZPU-700S
More Details
Product Code
04:455350
EAN Code
0753263078445
Manufacturer
Chieftec
