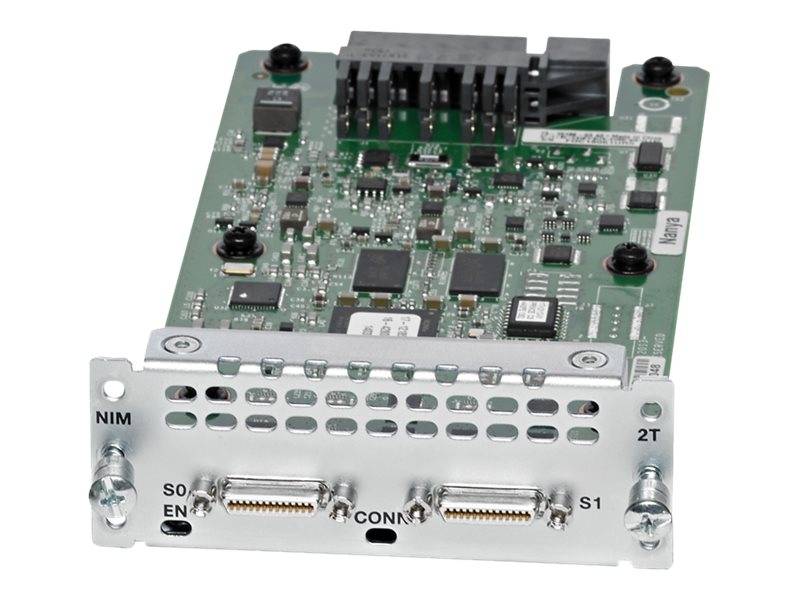

Cisco WAN Network Interface Module / Serial adapter / RS-232/449/530/V.35/X.21 x 2 | NIM-2T=
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Serial adapter |
| Form Factor | Plug-in module |
| Networking | Networking |
| Ports | RS-232/449/530/V.35/X.21 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, RS-530, X.21, V.35, RS-449, RS-530A |
| Data Transfer Rate | 8 Mbps |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x RS-232/449/530/V.35/X.21 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, JATE, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, VCCI Class A, CNS 13438, CAN/CSA-C22.2 No. 60950-1, EN 300386 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 8.89 cm |
| Depth | 18.39 cm |
| Height | 3.18 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Cisco - NIM-2T=
More Details
Product Code
677AY80
EAN Code
0882658634291
Manufacturer
Cisco
