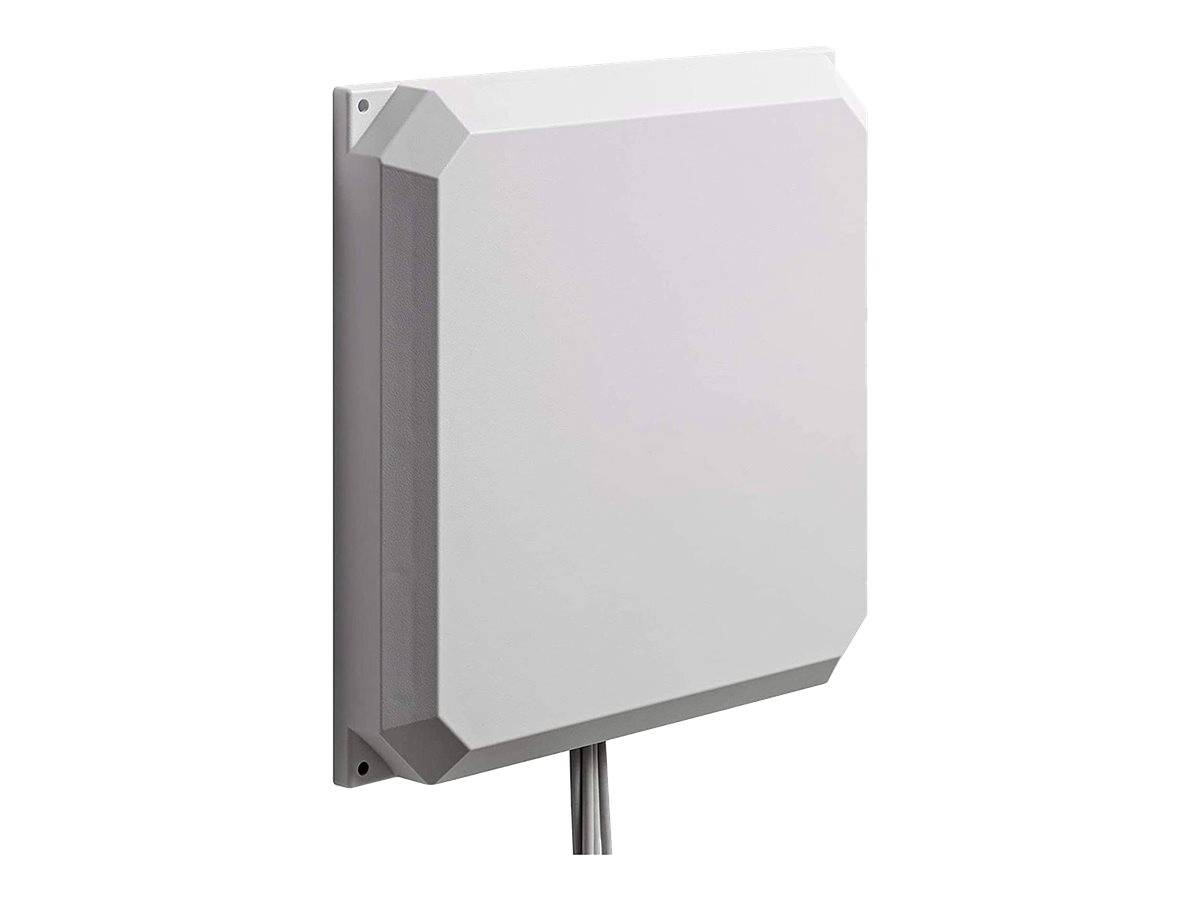

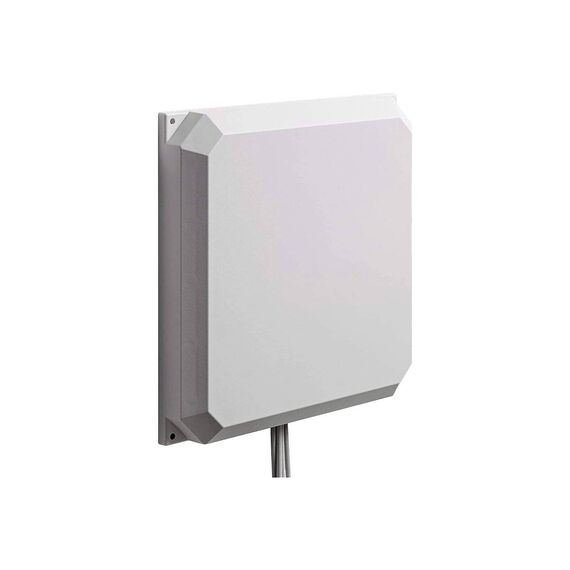

Cisco Aironet 4-Element Patch Self-Identifying / Antenna / 6 dBi (for 2.4 GHz), 6 dBi (for 5 GHz) / directional / outdoor, indoor / for Catalyst 9120AXE, 9120AXP | AIR-ANT2566P4W-RS=
Please sign in so that we can notify you about a reply
Product Features
- PATCH ANTENNA
6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 dual-band ports); designed for use with dual-band port access points such as the Aironet 1830, 1850, 2800 and 3800 Series and Cisco Catalyst 9115AX, 9120AX and 9130AX Series - CONNECTION AND MOUNT

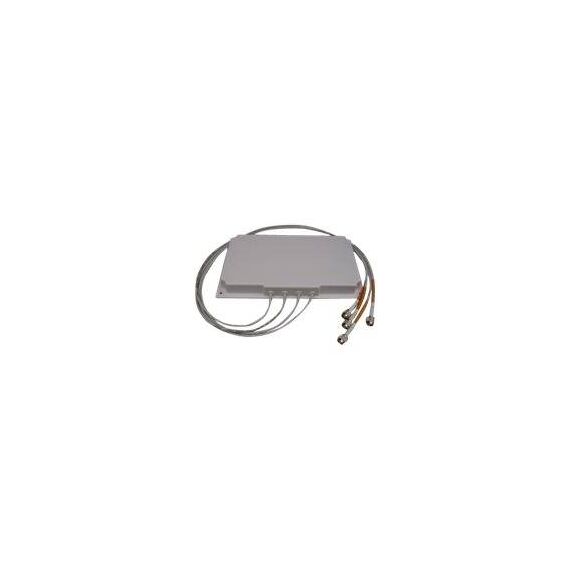

4 plenum-rated 36-inch cables and RP-TNC connectors; wall mount - DIRECTED RADIATION PATTERN
Intended for deployment when directed coverage is required - PERFORMANCE
Designed for improved directional coverage - PEACE OF MIND
1-year limited hardware warranty
Product Specification
| Product Type | Antenna |
| Width | 27.9 cm |
| Depth | 3.05 cm |
| Height | 16 cm |
| Weight | 635 g |
| Cable Length | 91.4 cm |
| Aerial | Aerial |
| Aerial Placing / Mounting | Outdoor, indoor |
| Frequency Range | 5.150 - 5.850 GHz, 2.4 - 2.484 GHz |
| Gain | 6 dBi (for 2.4 GHz), 6 dBi (for 5 GHz) |
| Directivity | Directional |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Horizontal Beamwidth | 105° (at 2.4 GHz), 110° (at 5 GHz) |
| Vertical Beamwidth | 65° (at 2.4 GHz), 55° (at 5 GHz) |
| Cabling & Wiring | Cabling & Wiring |
| Connector Provided | 4 x RP-TNC |
| Miscellaneous | Miscellaneous |
| Features | MIMO technology, IP54 protection |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Compatibility Information | Compatibility Information |
| Designed For | Cisco Catalyst 9120AXE, 9120AXP |
Features - Cisco - AIR-ANT2566P4W-RS=
More Details
Product Code
677TF78
EAN Code
0889728277501
Manufacturer
Cisco
