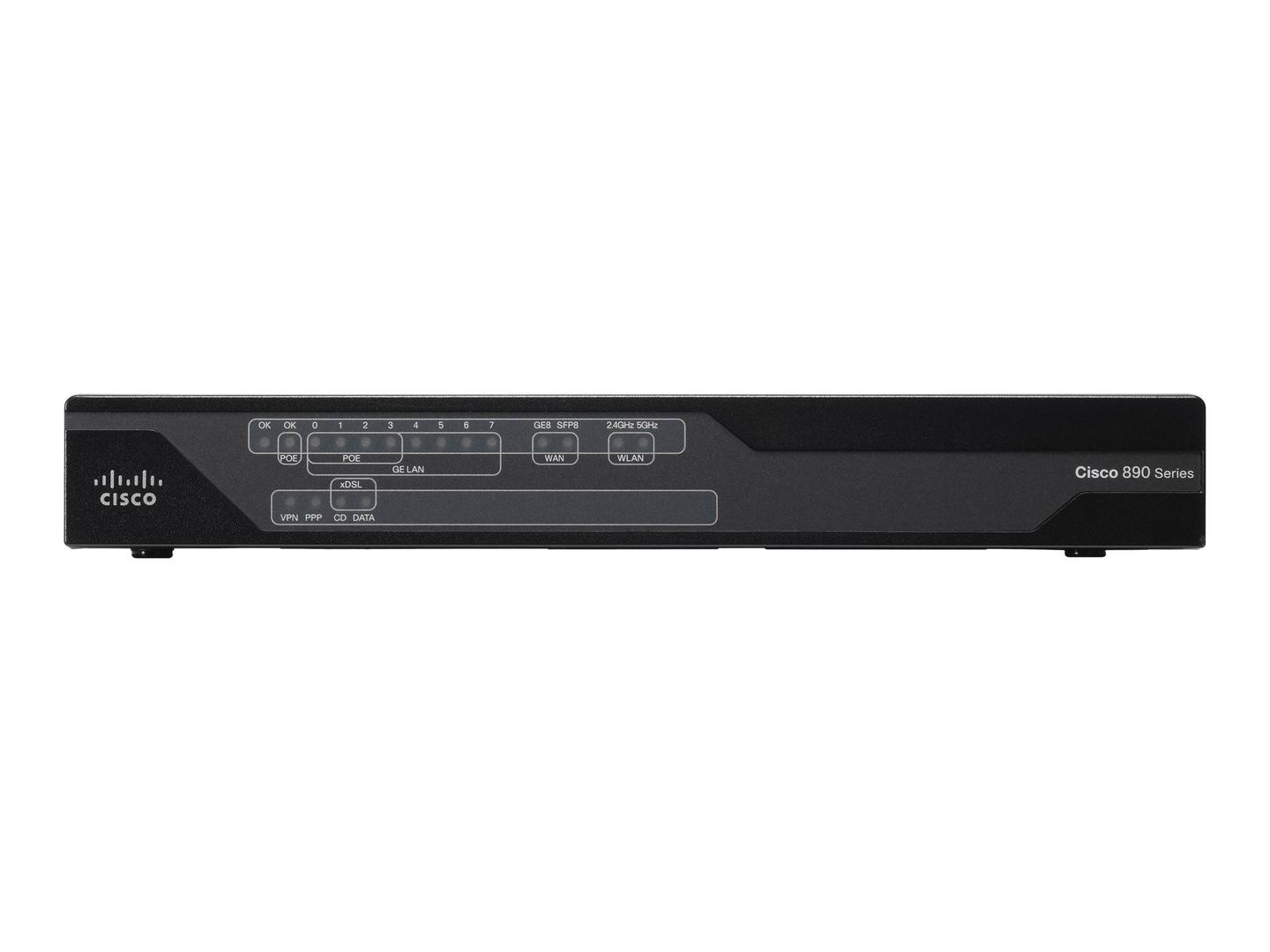

Cisco 897VA Gigabit Ethernet Security Router with SFP and VDSL2/ADSL2+ Bonding over POTS / Router / DSL modem / 8-port switch / GigE / WAN ports: 3 | C897VAB-K9
Product Features
- High availability and business continuity
890 series ISR feature redundant WAN connections for failover protection and load balancing, dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP) and dial backup with external modem through a virtual auxiliary port. - Consistent, high application performance levels
The router can run multiple services simultaneously with no performance degradation. - Risk mitigation with multilevel security
890 series ISR provide network perimeter security with integrated application inspection firewall, data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES) and Advanced Encryption Standard (AES) encryption, an enforced security policy with intrusion prevention, security hardware acceleration, flexVPN, next-generation encryption for secure network communications systems, reliable for the next decade, Cisco ISR Web Security with Cisco ScanSafe, designed to prevent zero-day malware from reaching corporate networks. - Feature consolidation for real estate, capital expenditures (CapEx), and management savings
These ISR supports LAN connections, both Ethernet and Wi-Fi, in one appliance. Contains an integrated 802.11n WLAN access point that supports both autonomous and unified modes, as well as an 8-port LAN switch. Management of both the wired and wireless environments is integrated. - Unified control of wired and wireless networks from a common console for streamlined operations
890 series ISR simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller. - Remote configuration and management to keep local IT staff lean
890 series ISR supports separate console, auxiliary, and USB ports, provides two USB 2.0 flash memory or security eTokens, can be configured to work with optional USB token.
Special Features
- High availability and business continuity
- Consistent, high application performance levels
- Risk mitigation with multilevel security
- Feature consolidation for real estate, capital expenditures (CapEx), and management savings
- Unified control of wired and wireless networks from a common console for streamlined operations
- Remote configuration and management to keep local IT staff lean
Product Specification
Device Type | Router - 8-port switch (integrated) |
Enclosure Type | Desktop |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Capacity | IPSec VPN tunnels: 50 |
Network / Transport Protocol | L2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3 |
Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD) |
Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
Encryption Algorithm | Triple DES, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
Authentication Method | RADIUS, TACACS+ |
Features | Firewall protection, NAT support, power over Ethernet (PoE), VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, MAC address filtering, IPv6 support, Stateful Failover, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), RADIUS support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, Bidirectional Forwarding Detection (BFD), DHCP relay, DHCP client, Virtual Routing and Forwarding (VRF), Class of Service (CoS) |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AES, FCC CFR47 Part 15, VCCI V-3 |
RAM | 512 MB (installed) / 1 GB (max) |
Flash Memory | 256 MB (installed) / 256 MB (max) |
Status Indicators | Port status, power, PoE |
Line Properties | Line Properties |
Framing Format | ANSI T1.413 |
Communications | Communications |
Type | DSL modem |
Digital Signaling Protocol | ADSL2, ADSL2+, VDSL2 |
Protocols & Specifications | ITU G.994.1 (G.hs), ITU G.992.1 (G.DMT) Annex A, ITU G.992.3 Annex A, ITU G.993.2, ITU G.992.5 Annex A |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | LAN: 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x SFP (mini-GBIC) ¦ WAN: 1 x VDSL / ADSL2+ ¦ Management: 1 x console - RJ-45 ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x 1000Base-T - RJ-45 |
Power | Power |
Power Device | External power adapter - 60 Watt |
Voltage Required | AC 120/230 V (50/60 Hz) |
Software / System Requirements | Software / System Requirements |
OS Provided | Cisco IOS Advanced IP services |
Dimensions & Weight | Dimensions & Weight |
Width | 32.3 cm |
Depth | 24.8 cm |
Height | 4.4 cm |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 1 year |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 85% (non-condensing) |
