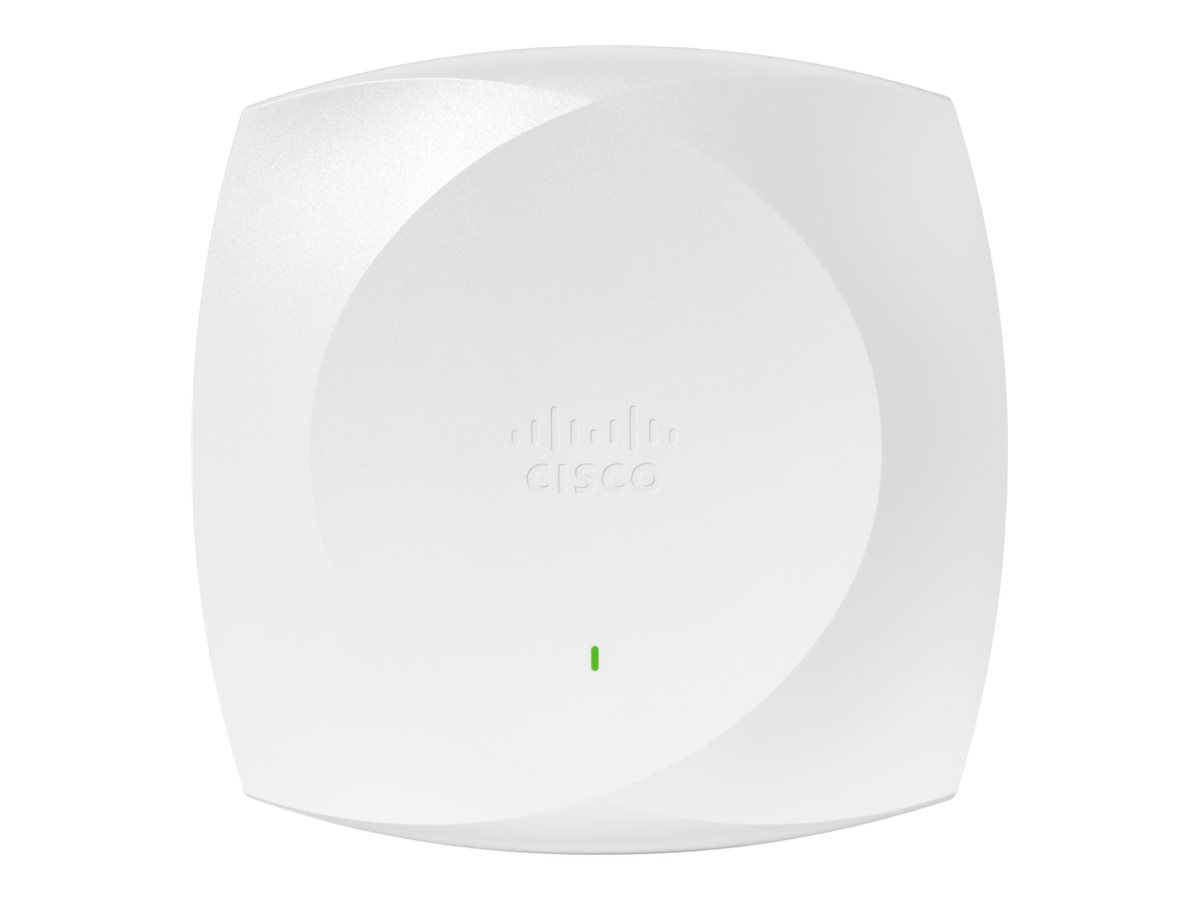

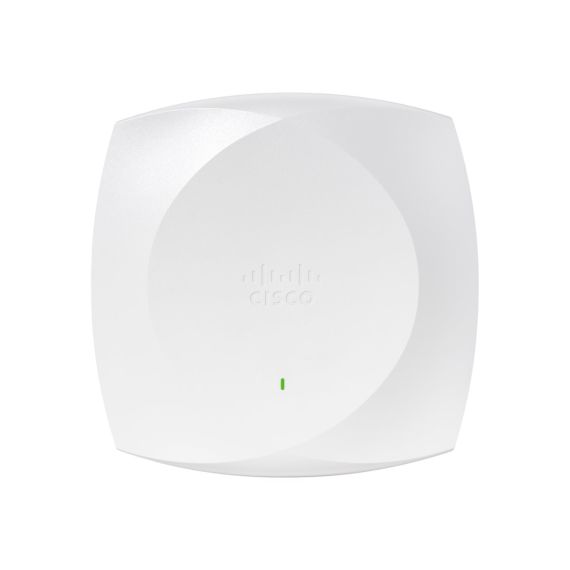

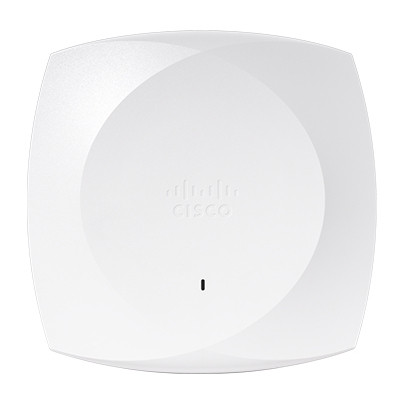

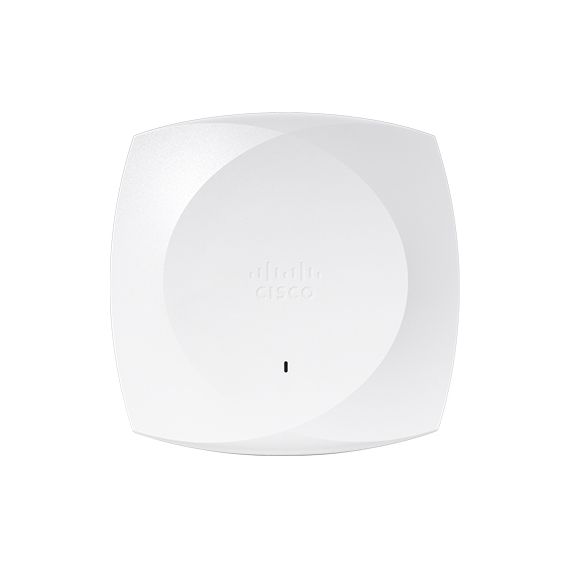

Cisco Wireless 9176I - Configurable - radio access point - Wi-Fi 7, 2.5GbE, 5GbE, 10GbE - Wi-Fi 7, Bluetooth - 2.4 GHz, 5 GHz, 6 GHz | CW9176I-CFG
Please sign in so that we can notify you about a reply
Product Features
- Robust connectivity options
The Cisco Wireless 9176I supports a multi-protocol data link that includes IEEE 802.11ax and 802.11be, ensuring compatibility with both older and newer devices while offering a data transfer rate of up to 18 Gbps. - Advanced security measures
Equipped with a range of encryption algorithms such as WPA2 and WPA3, alongside robust authentication methods including EAP, the Cisco 9176I ensures secure data transmission across the network. - Efficient power management
The device utilizes Power over Ethernet (UPOE) technology, simplifying power management and installation, while allowing for significant energy savings. - Versatile environmental adaptability
With an operating temperature range from 0°C to 50°C and humidity tolerance of 10 to 90%, this access point is designed to function in a variety of indoor conditions, maximizing usability for different operational settings. - Enhanced wireless performance
Featuring advanced technologies such as 4x4:4 MU-MIMO and beamforming, the Cisco 9176I provides optimal signal strength and throughput, improving user experience in high-density environments.
Special Fetures
- Supports 12 spatial streams for enhanced network capacity
- Built-in GPS and GNSS receiver for location tracking
- Operates within a wide temperature and humidity range
- Data transfer rate of 18 Gbps for fast connectivity
- Comprehensive security features with multiple encryption options
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Built-in Devices | GPS, GNSS receiver |
| Width | 24 cm |
| Depth | 24 cm |
| Height | 5.1 cm |
| Weight | 1.56 kg |
| Processor / Memory / Storage | |
| RAM | 4096 MB |
| Flash Memory | 16 GB |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 18 Gbps |
| Line Coding Format | 4096 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Bluetooth LE |
| Spread Spectrum Method | OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Capacity | Spatial streams: 12 |
| Status Indicators | Status |
| Features | 4x4:4 MU-MIMO technology, XOR, Multi-Link Operation (MLO), preamble puncturing, Target Wake Time (TWT), BSS Coloring, Maximum Ratio Combining (MRC), packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), cyclic shift diversity (CSD), beamforming technology, 802.1x authentication, uplink/downlink MU-MIMO, image signing, secure boot, Cisco Trust Anchor module, Maximal Ratio Combining, LLDP support, band steering, Integrated Ultra-Wideband (UWB) |
| Encryption Algorithm | WPA3, WPA2, 256-bit SHA, AES, 128-bit AES-GCMP, 256-bit AES-GCMP, EAP-TLS, EAP-TTLS, PEAP, EAP-MSCHAPv2, EAP-FAST, PEAPv1, EAP-GTC, EAP-SIM, MSCHAPv2 |
| Authentication Method | MS-CHAP, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
| Compliant Standards | IEEE 802.11, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3, IEEE 802.3ab, IEEE 802.11h, IEEE 802.11d, IEEE 802.11i, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED 6E, Wi-Fi CERTIFIED 7, IEEE 802.1x |
| Aerial | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Expansion / Connectivity | |
| Interfaces | 1 x 100M/1G/2.5/5/10 Gigabit Ethernet (UPOE) - RJ-45 <br /> 1 x management - RJ-45 <br /> 1 x USB 2.0 |
| Miscellaneous | |
| Compliant Standards | IEC 60950-1, IEC 62368-1 Third Edition, EN 60950-1, EN 62368-1 Third Edition, UL 60950-1, UL 62368-1 Third Edition, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1 Third Edition, AS/NZS 60950-1, AS/NZS 62368-1 Third Edition, UL 2043, Class 3, CISPR 32:2015+AMD1:2019, EN 55032:2015/A11:2020, EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3:2013+A1:2019, AS/NZS CISPR32:2015+AMD1:2020, FCC 47 CFR part 15 B class B, ICES-003 issue 7 Class B, VCCI-CISPR 32:2016, CNS 13438 (2006), KS C 9832:2019, QCVN 118:2018/BTTTT, EN 55035:2017+A11:2020, KS C 9835:2019, EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09), QCVN 18:2014, QCVN 112:2017/BTTTT, KS X 3124:2020, KS X 3126:2020, EN 61000-6-1:2019, EN 60601-1-2:2015 + A1:2021, EN 300 328, EN 301 893, EN 303 687, AS/NZS 4268, FCC CFR 47 Part 15C, RSP-100, RSS-GEN, RSS-247, LP0002, Japan Std. 66, Japan Std. 71, EN 50385:2017, AS/NZS 2772:2016, 47 CFR Part 2.1091, RSS-102, WEEE |
| Power | |
| Power Over Ethernet (PoE) Supported | UPOE |
| Power Device | External power adapter / power injector (not included) |
| Software / System Requirements | |
| OS Required | Cisco IOS XE 17.15.2 or later |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: 5 days |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Cisco - CW9176I-CFG
More Details
Product Code
CM32400
EAN Code
0889728625821
Manufacturer
Cisco
