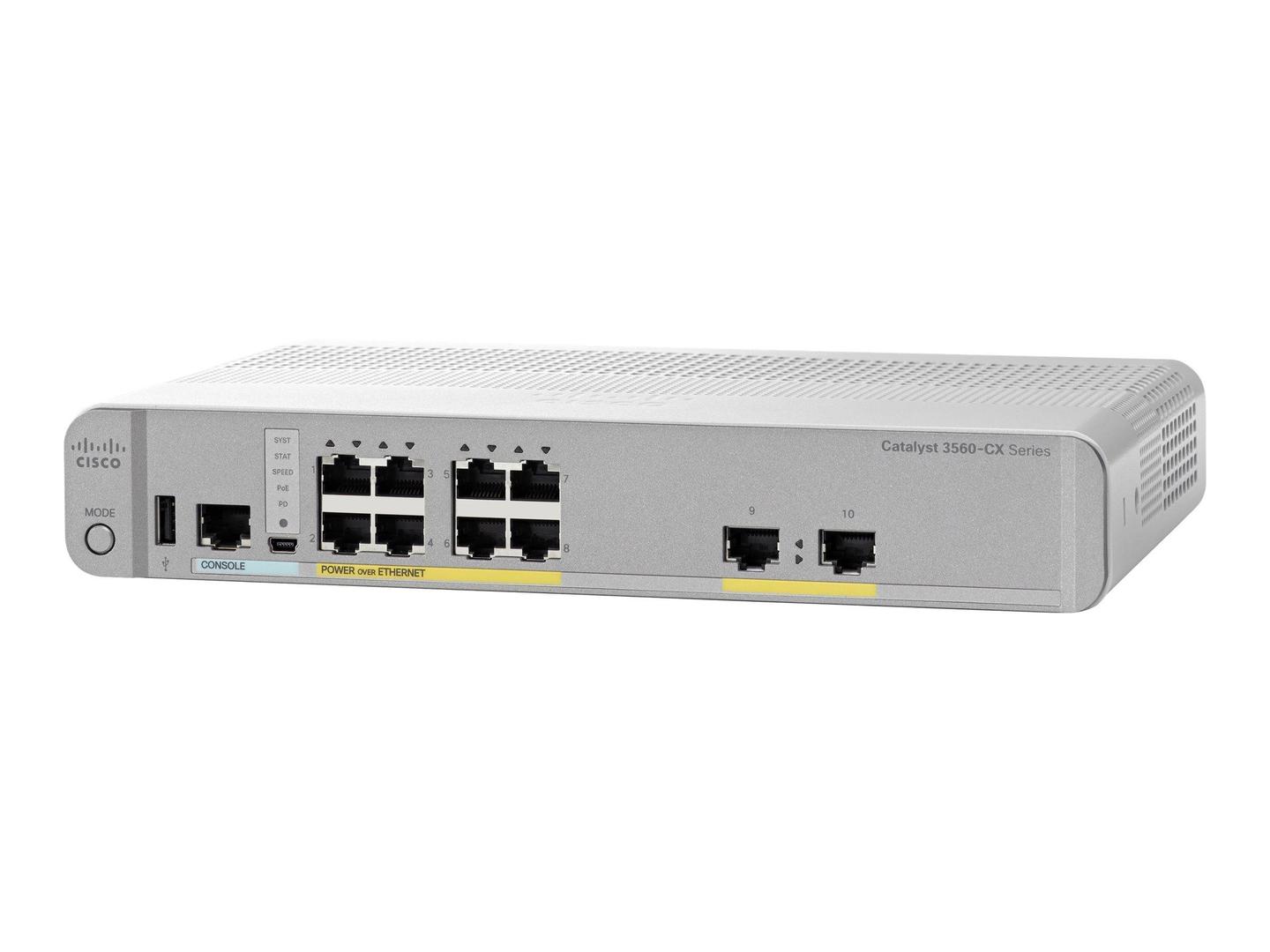

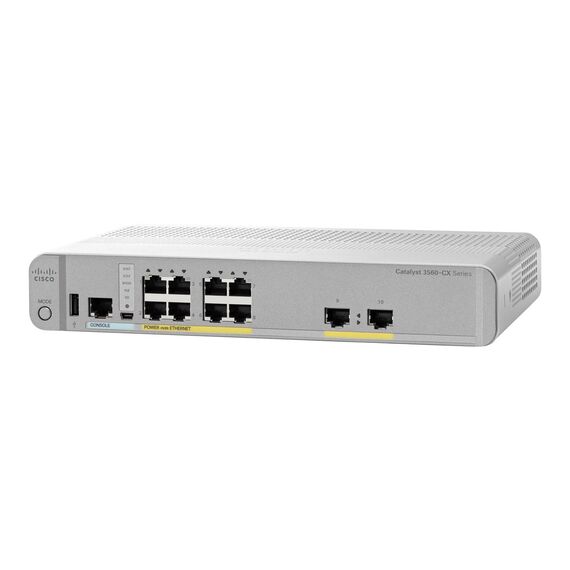

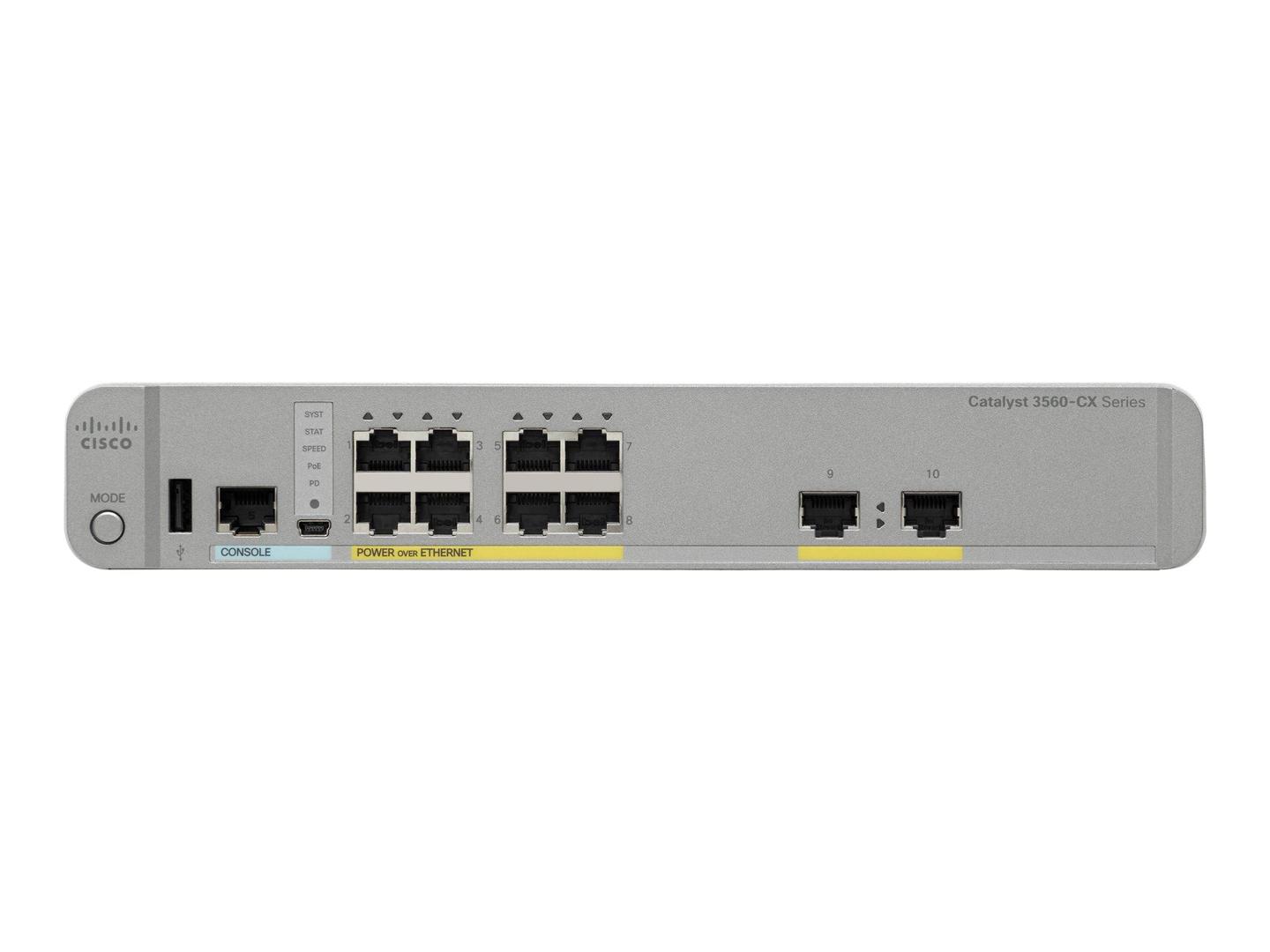

Cisco Catalyst 3560CX-8PT-S / Switch / Managed / 10 x 10/100/1000 (PoE+) / desktop, rack-mountable, DIN rail mountable, wall-mountable / PoE+ (146 W) | WS-C3560CX-8PT-S
Please sign in so that we can notify you about a reply
Product Features
- Small form factor, fanless design and silent operation
The switch can be used in open workspaces and other areas that cannot tolerate equipment noise and where multiple cable runs could be difficult, expensive, and intrusive. - Flexible mounting
The switch can be mounted on the wall, under a desk, rack, DIN rail, or practically anywhere they are needed. - 10 Gigabit SFP+ uplinks
Accommodates business growth and increased traffic, such as aggregate upstream gigabit traffic loads from 802.11ac Wi-Fi access points. - PoE pass-through
PoE pass-through gives the ability to power PoE end devices through drawing Cisco UPOE from the wiring closet. The Catalyst has eight downlink ports with two Cisco UPOE input ports that allow it to be powered by another switch. These switches do not need a power supply and receive power over the uplink from an upstream PoE or Cisco UPOE device, providing deployment flexibility and availability. These switches are ideal for wiring-constrained and space-constrained applications. - Cisco Instant Access mode
This mode enables a single point of management and operation for campus networks. Catalyst compact switch with 10 G SFP+ uplinks can be connected to the core switches, and the entire configuration can then work as a single extended switch with a common management domain. - Cisco Network Plug-and-Play
Network Plug-and-Play is a secure, scalable solution that accelerates network device deployments by automating the installation and configuration of Cisco IOS software. The switch can be used as part of the APIC-EM solution for automated switch deployments. This feature helps improve productivity, cut costs, reduce downtime, and enhance the user experience.
Special Features
- 8 Gigabit Ethernet ports with line rate forwarding performance
- Gigabit copper, small form-factor pluggable (SFP) or 10G SFP+ uplinks
- Power over Ethernet Plus (PoE+) support
- Power over Ethernet (PoE) pass-through enables the compact switch to draw Cisco Universal PoE power from the wiring closet and pass it to end devices
- Advanced Layer 2 (LAN Base) and Layer 3 (IP Base) support
- Fanless design and silent operation
Product Specification
| Device Type | Switch - 8 ports - Managed |
| Enclosure Type | Desktop, rack-mountable, DIN rail mountable, wall-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 10 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 146 W |
| Performance | Forwarding performance (64-byte packet size): 14.9 Mpps |
| Capacity | Virtual interfaces (VLANs): 1023 |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Full duplex capability, DHCP support, auto-negotiation, BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), fanless, Shaped Round Robin (SRR), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Weighted Tail Drop (WTD) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Status Indicators | Port transmission speed, system, status, PoE, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T RJ-45 UPOE ¦ 1 x mini-USB Type B management ¦ 1 x USB Type A ¦ 1 x console RJ-45 |
| Power | Power |
| Power Consumption Operational | 24.3 Watt |
| 80 PLUS Certification | 80 PLUS Silver |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Optional |
| MTBF | 737,740 hours |
| Compliant Standards | GOST, CISPR 24, EN55022, EN55024, CISPR 22, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, GB 4943, KCC Class A, IEC 60825, KN22, KN24, VCCI V-3/2007.04 Class A, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements | Software / System Requirements |
| Software Included | Cisco IOS IP Base |
| Dimensions & Weight | Dimensions & Weight |
| Width | 26.9 cm |
| Depth | 17.7 cm |
| Height | 4.44 cm |
| Weight | 1.58 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
