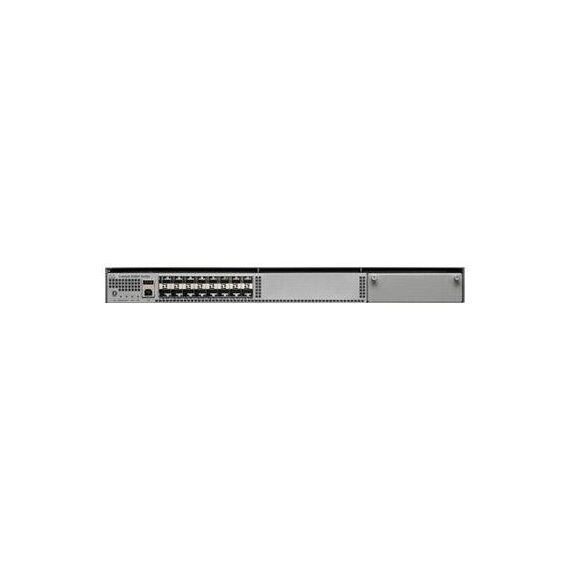

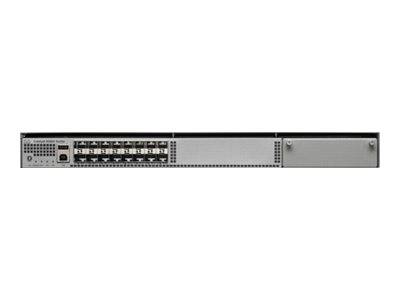

Cisco Catalyst 4500-X / Switch / 16 x 10 Gigabit SFP+ / front to back airflow / rack-mountable | WS-C4500X-16SFP+
Please sign in so that we can notify you about a reply
Product Features
- Platform scalability
Delivers up-to 800 Gbps of switching capacity, capable of scaling in the future to 1.6-Tbps capacity with the VSSi technology. Future-proof investment with modular uplink and auto-detect 10 Gigabit Ethernet and 1 Gigabit Ethernet ports. - High availability
These switches deliver the network availability demanded by business-critical enterprise applications through comprehensive high-availability capabilities, including VSSi and EVN. - Application monitoring
Enhanced application monitoring through Flexible Netflow and eight ports of line rate bidirectional Switched Port Analyzer (SPAN)/Remote Switched Port Analyzer (RSPAN). - Security
Support for Cisco TrustSec technology as well as robust control plane policing (CoPP) to address denial of service attacks.
Special Features
- External USB and SD card support for flexible storage options
- 10/100/1000 RJ-45 console and management port
- IPv6 support in hardware, providing wired-network-rate forwarding for IPv6 networks and support for dual stack with innovative resource utilization
- Dynamic hardware forwarding-table allocations for ease of IPv4-to-IPv6 migration
- Scalable routing (IPv4, IPv6, and multicast) tables, Layer 2 tables, and ACL and quality of service (QoS) entries to make use of eight queues per port and comprehensive security policies per port
Product Specification
| Device Type | Switch - 16 ports |
| Enclosure Type | Front to back airflow rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 16 x 10 Gigabit SFP+ |
| Performance | Throughput: 800 Gbps ¦ IPv4 routing: 250 Mpps ¦ IPv6 routing: 125 Mpps |
| Capacity | IPv4 forwarding table entries: 64000 ¦ IPv6 forwarding table entries: 32000 ¦ NetFlow entries: 128000 ¦ Virtual interfaces (VLANs): 4094 ¦ IGMP groups: 32000 ¦ Multicast entries (IPv4): 24000 ¦ Multicast entries (IPv6): 12000 ¦ ARP entries: 47000 ¦ Spanning Tree Protocol instances: 10000 ¦ QoS hardware queues: 64 ¦ QoS hardware entries: 128000 ¦ ACL entries: 131072 |
| MAC Address Table Size | 55K entries |
| Jumbo Frame Support | 9216 bytes |
| Remote Management Protocol | RMON 1, RMON 2 |
| Features | Layer 2 switching, VLAN support, Access Control List (ACL) support, Quality of Service (QoS), redundant hot swappable fans |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s |
| Processor | : 1.5 GHz |
| RAM | 4 GB DDR2 SDRAM |
| Flash Memory | 2 GB (max) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 16 x 10Gb Ethernet / 1Gb Ethernet - SFP/SFP+ ¦ 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 management ¦ 1 x USB Type A ¦ 1 x console - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x Expansion Slot |
| Power | Power |
| Power Device | Internal power supply (not installed) - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Consumption Operational | 330 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 209,330 hours |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1, AS/NZS, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 300 386 |
| Software / System Requirements | Software / System Requirements |
| Software Included | Cisco IOS IP Base |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: 10 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
