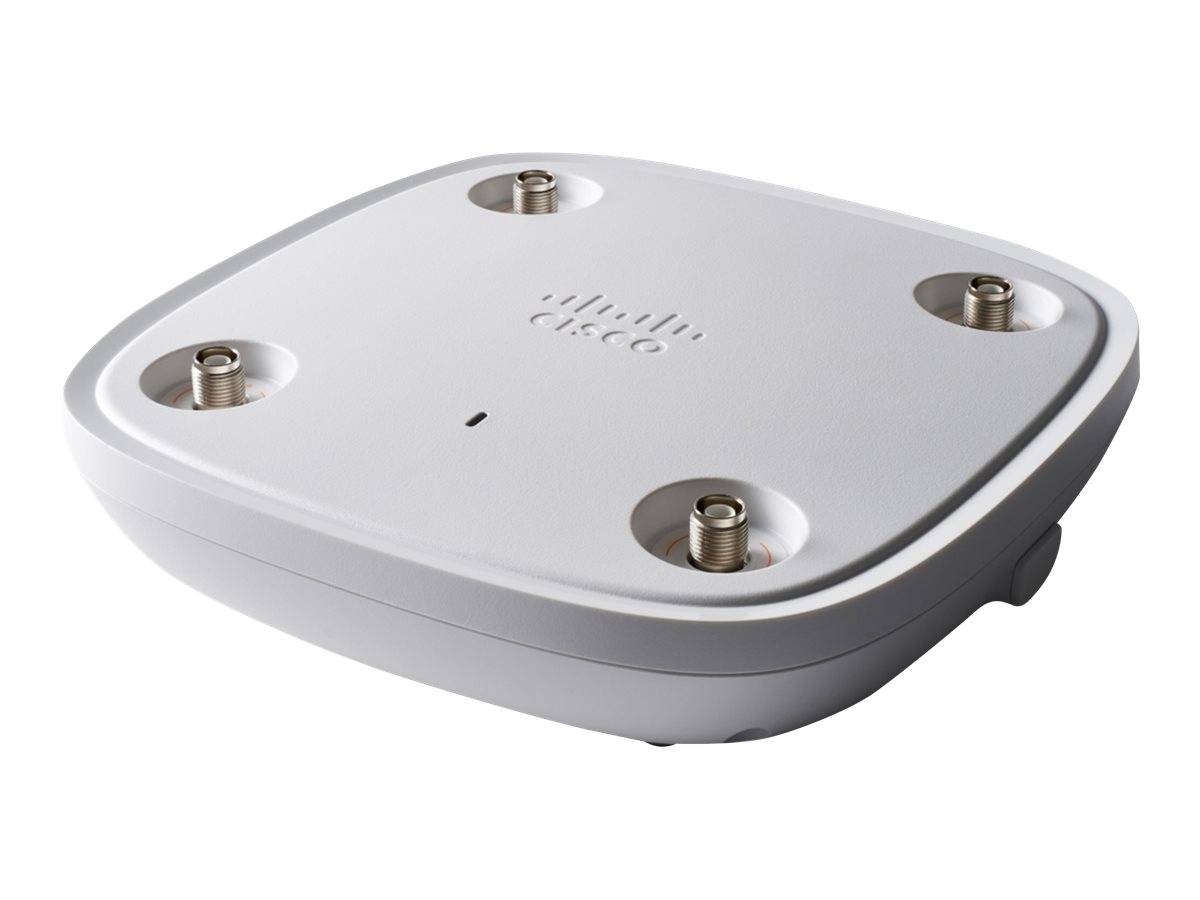

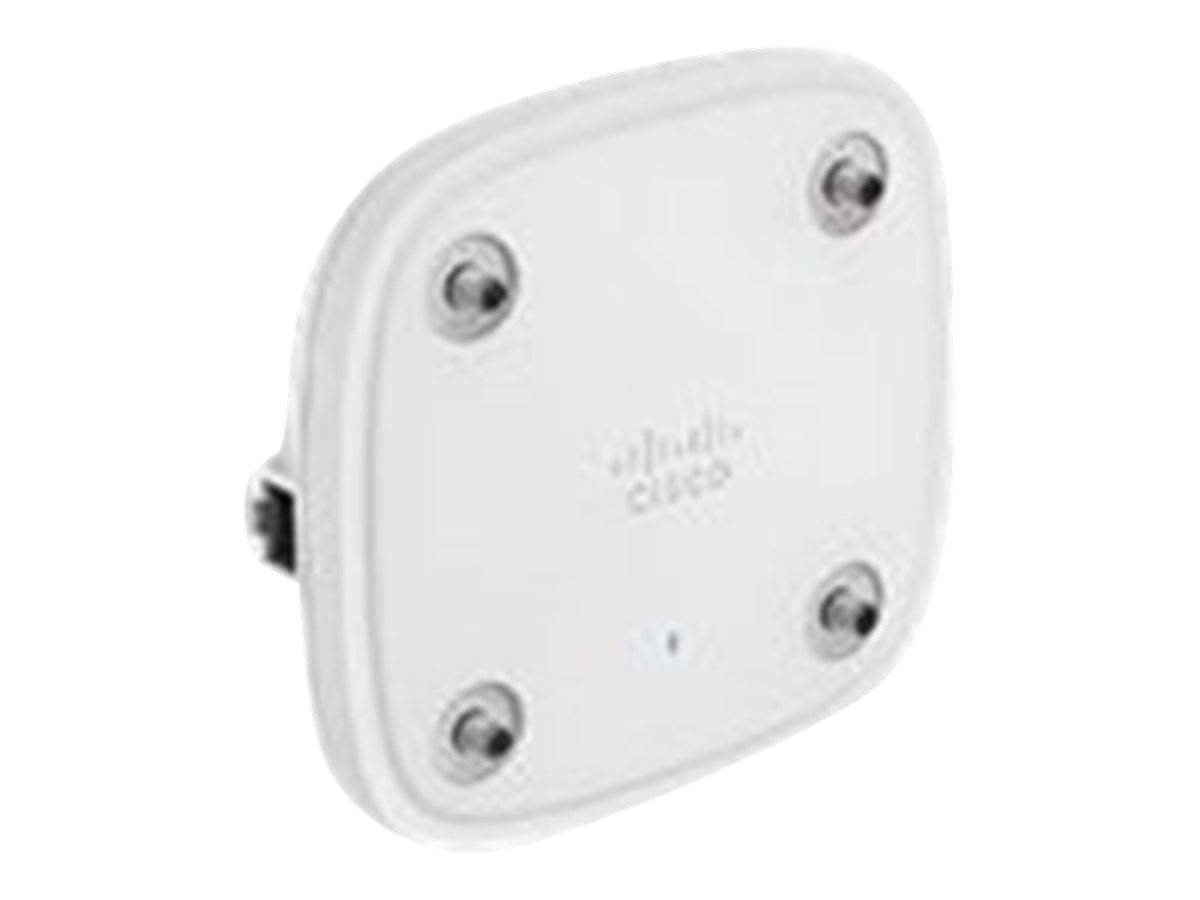

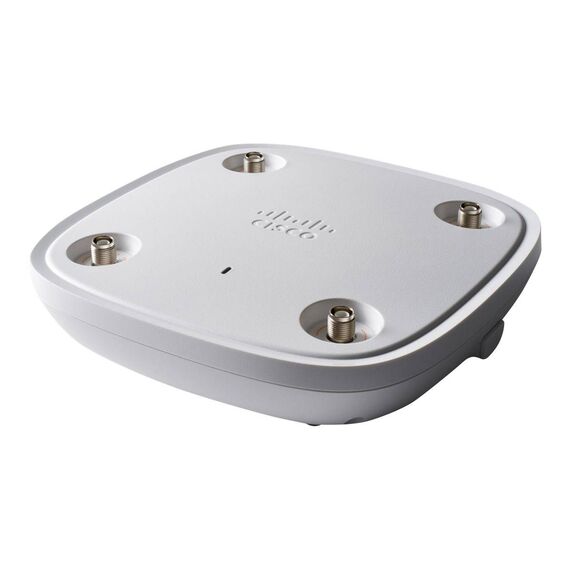

Cisco Catalyst 9120AXE / Radio access point / Bluetooth 5.0 / 802.15.4, Bluetooth, Wi-Fi 6 / 2.4 GHz, 5 GHz | C9120AXE-E
Please sign in so that we can notify you about a reply
Product Features
- POWERFUL Wi-Fi 6 PERFORMANCE
4x4 Flexible Dual Radio with 5GHz and 2.4GHz or two 5GHz configuration, up to 5.38 Gbps data rate, uplink/downlink OFDMA, MU-MIMO, BBS colouring, TWT and Embedded IoT radios enabling BLE 5.0 and Zigbee - CISCO CLEANAIR
Powered by Cisco RF ASIC, offer superior analytics and security - ECOSYSTEM
End-point interoperability and optimised performance on Apple and Samsung devices - EMBEDDED WIRELESS CONTROLLER
Controller functions embedded in the Access Point for easy deployment, network monitoring and troubleshooting. Support with WebGUI and mobile app (C9120AXI(E)-EWC models only) - PEACE OF MIND
90-day software and limited lifetime hardware warranty
Special Features
- Wi-Fi 6 certifiable
- OFDMA and MU-MIMO
- Multigigabit support
- Internal, external antenna and also external antenna for professional installations
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 21.6 cm |
| Depth | 21.6 cm |
| Height | 5.1 cm |
| Weight | 1.36 kg |
| Processor / Memory / Storage | Processor / Memory / Storage |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, 802.11ax |
| Network / Transport Protocol | IPSec, IPv6 |
| Remote Management Protocol | NETCONF, RESTCONF |
| Frequency Band | 2.4 GHz, 5 GHz |
| Status Indicators | Status |
| Features | DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Pre-Shared Key (PSK), Dynamic Frequency Selection (DFS), Dynamic QoS, guest access, secure boot, 4x4:4 MU-MIMO technology, Target Wait Time (TWT), image signing, Cisco Trust Anchor module |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, WPA, WPA2, FIPS, EAP-SIM, EAP-FAST |
| Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | Aerial |
| Antenna | External detachable |
| Internet of Things (IoT) | Internet of Things (IoT) |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1/2.5GBase-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0 ¦ 4 x aerial |
| Miscellaneous | Miscellaneous |
| Compliant Standards | CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, EN 62209-1, SRRC, EN 300 328, CNS 13438, EN 50385, EN 62209-2, EN 60601-1-1, EN 301 489-1, LP0002, RSS-247, KN32, AS/NZS CISPR 32 Class B, USGv6, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, EMI Class B, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN |
| Power | Power |
| Power Over Ethernet (PoE) Supported | UPOE |
| Software / System Requirements | Software / System Requirements |
| Software Included | CAPWAP Software Image |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Cisco - C9120AXE-E
More Details
Product Code
677SN67
EAN Code
0889728227223
Manufacturer
Cisco
