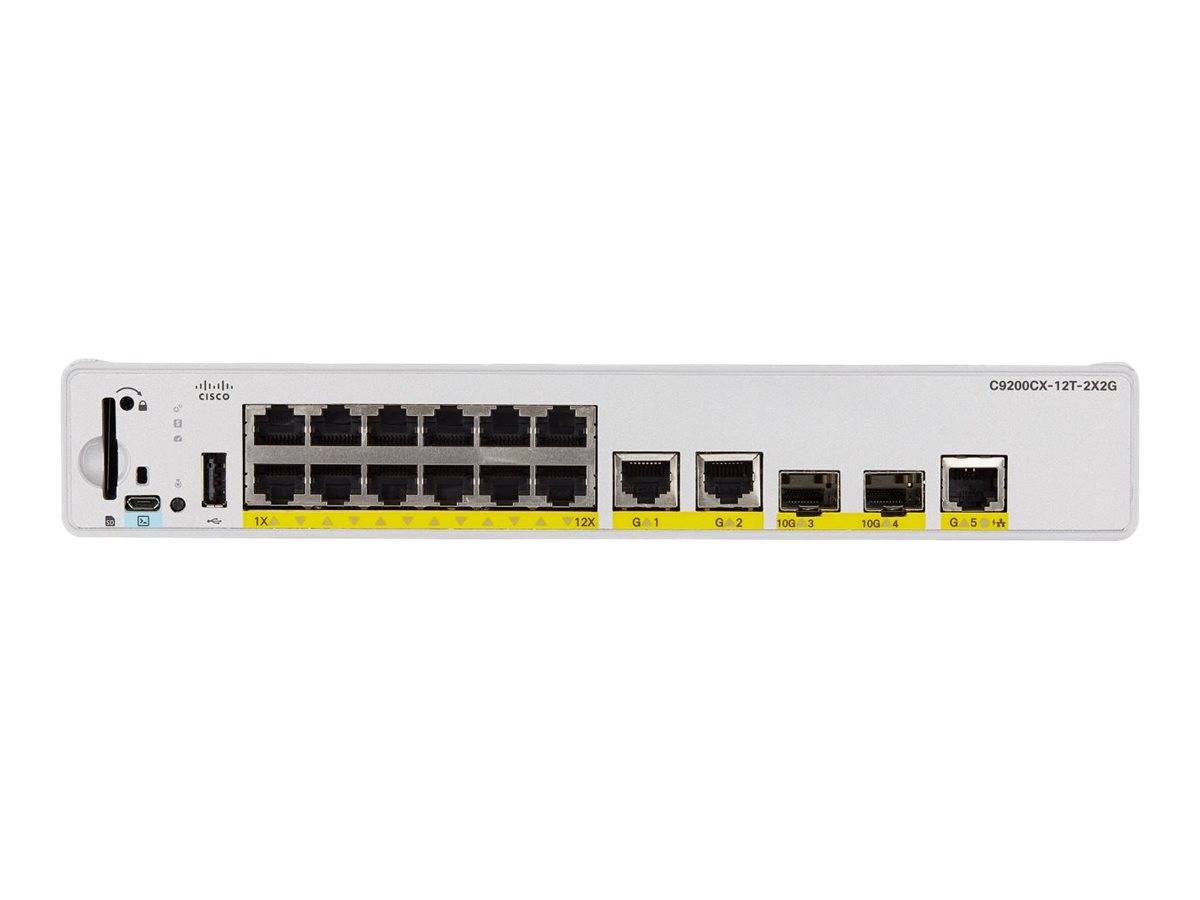

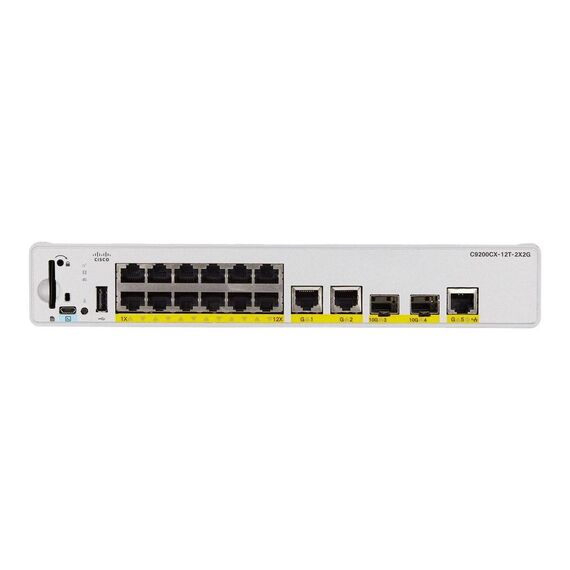

Cisco Catalyst 9200CX / Network Essentials / switch / compact / L3 / Managed / 12 x 1000Base-T + 3 x 1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) / rack-mountable / UPOE+ | C9200CX-12T-2X2G-E
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 12 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 12 x 1000Base-T + 3 x 1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | UPOE+ |
| Performance | Switching capacity: 120 Gbps ¦ Forwarding rate: 95.23 Mpps ¦ Packet buffer size: 6 MB |
| Capacity | Virtual networks: 16 ¦ IPv4 routes: 14000 ¦ Direct IPv4 routes: 10000 ¦ Indirect IPv4 routes: 4000 ¦ IPv4 routing entries: 4000 ¦ IPv6 routing entries: 2000 ¦ Multicast scale: 1000 ¦ QoS scale entries: 1000 ¦ ACL scale entries: 1600 ¦ Flexible NetFlow entries: 16000 ¦ VLAN IDs: 4096 ¦ PVST instances: 128 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, YANG |
| Encryption Algorithm | 256-bit AES |
| Features | Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Zero-touch provisioning (ZTP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Unified Access Data Plane (UADP) 2.0, trustworthy systems |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3bt |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Built-in Devices | RFID tag |
| Status Indicators | Power |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 12 x 1000Base-T RJ-45 ¦ 2 x 1000Base-T RJ-45 ¦ 2 x 1/10GBase-X SFP+ uplink ¦ 1 x 1000Base-T RJ-45 UPOE+ - 60 W ¦ 1 x console (micro-USB) ¦ 1 x USB 2.0 |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | 80 Watt |
| Voltage Required | AC 100-240 V |
| Miscellaneous | Miscellaneous |
| MTBF | 755,270 hours |
| Compliant Standards | Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Software / System Requirements | Software / System Requirements |
| Software Included | Cisco IOS Universal 17.8 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 26.9 cm |
| Depth | 16.5 cm |
| Height | 4.4 cm |
| Weight | 1.81 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Cisco - C9200CX-12T-2X2G-E
More Details
Product Code
CF72156
EAN Code
0889728447140
Manufacturer
Cisco
