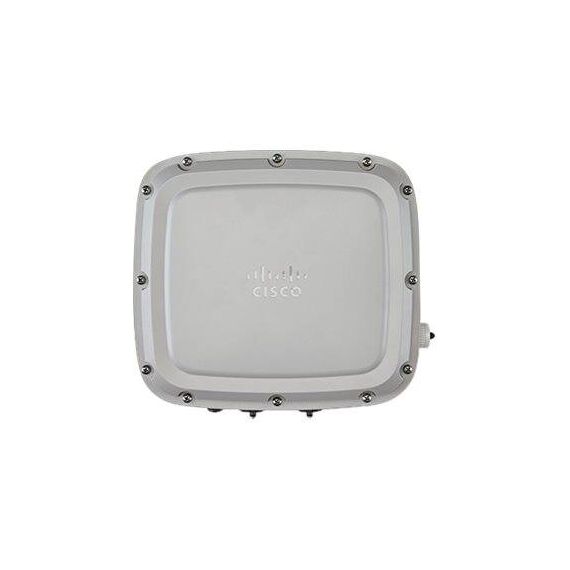

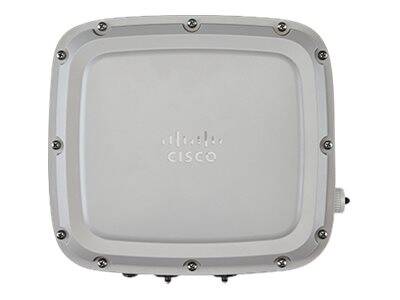

Cisco Catalyst 9124AXI - Radio access point - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz | C9124AXI-E
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Outdoor |
| Width | 25.9 cm |
| Depth | 23.3 cm |
| Height | 8.1 cm |
| Weight | 2.9 kg |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n (draft 2.0), IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Status Indicators | Status |
| Features | DFS support, Wi-Fi Multimedia (WMM) support, Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), 802.1x authentication, cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, 4x4 MU-MIMO technology, secure boot, Target Wait Time (TWT), image signing, Cisco Trust Anchor module, BSS Coloring, 4K/8K UHD video streaming |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2, EAP-SIM, WPA3, WPA3-Enterprise, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-GTC |
| Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-TLS, EAP-TTLS |
| Compliant Standards | IEEE 802.3, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.3ae, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n (draft 2.0), IEEE 802.11k, IEEE 802.3at, IEEE 802.15.4, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, IEEE 802.15.1, Wi-Fi CERTIFIED 6 |
| Aerial | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE) |
| Expansion / Connectivity | |
| Interfaces | 1 x 1/2.5GBase-T - RJ-45 ¦ 1 x 1000Base-X - SFP ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x management - RJ-45 |
| Miscellaneous | |
| Compliant Standards | EN55024, AS/NZS 60950-1, RSS-102, UL 60950-1, IEC 60950-1, EN 60950-1, FCC CFR47 Part 15 B, IP67, IP66, SRRC, CNS 13438, IEC 60950-22, EN 60950-22, UL 60950-22, CISPR 24:2010, IEC 60529, LP0002, RSS-247, KN32, AS/NZS CISPR 32 Class B, EN 62368-1, IEC 62368-1, NEMA 250-2008, EN 60068-2-5, FCC Subpart C 15.247, CAN/CSA-C22.2 No. 62368-1, EN 300 328 V2.1.1, UL 62368-1, TCVN 7317, ICES-003:2016 issue 6 Class B, VCCI-CISPR 32:2016, ETSI EN 301 489-17 V3.1.1 (2017-02), AS/NZS 2772, CISPR 32:2015, ARPANSA, CAN/CSA C22.2 No. 60950-22, EN 55035:2017, KN 61000-3-2, KN 61000-3-3, KN 489-1, KN 489-17, RSP-100, RSS-GEN, KN35:2015, EN 301 893 V2.1.1, FCC Subpart C 15.407, AS/NZS 4268:2017, EN 50385:2017, AS/NZS 62368.1, QCVN 118:2018, CAN/CSA C22.2 No. 60950-1, EN 61000-3-2:2019, 47 CFR Part 1.1310, 47 CFR Part 2.1091, QCVN 112:2017, Japan Std. 33a, Japan Std. 66, Japan Std. 71, QCVN 18:2014, ETSI EN 301 489-1 V2.2.3 (2019-11), EN 55032:2015/A11:2020, EN 61000-3-3:2013+A1:2019, MIL-STD-810G 514.4 |
| Power | |
| Power Over Ethernet (PoE) Supported | UPOE |
| Software / System Requirements | |
| Software Included | CAPWAP Software Image |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - lifetime - response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 65 °C |
| Humidity Range Operating | 0 - 100% |
Features - Cisco - C9124AXI-E
More Details
Product Code
CC13032
EAN Code
0889728343404
Manufacturer
Cisco
