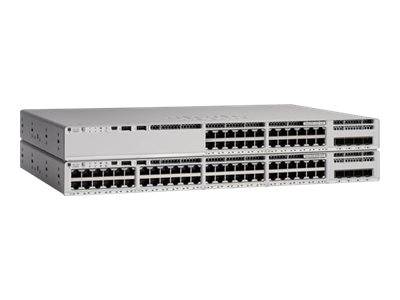

Cisco Catalyst 9200 / Switch / L3 / Managed / 24 x 10/100/1000 / rack-mountable | C9200-24T-E
Please sign in so that we can notify you about a reply
Product Features
- Super secure
Get advanced security features that protect the integrity of your hardware, software, and all data that flows through the switch.?? - Always on
Catalyst 9200 series switches provide enterprise-level resiliency, analytics, and assurance to keep your business up and running seamlessly.
Special Features
- Super secure
- Always on
Product Specification
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 |
| Performance | Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate: 190.4 Mpps |
| Capacity | Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ Flexible NetFlow entries: 16000 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm | 128-bit AES |
| Features | ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Expansion / Connectivity | Expansion / Connectivity |

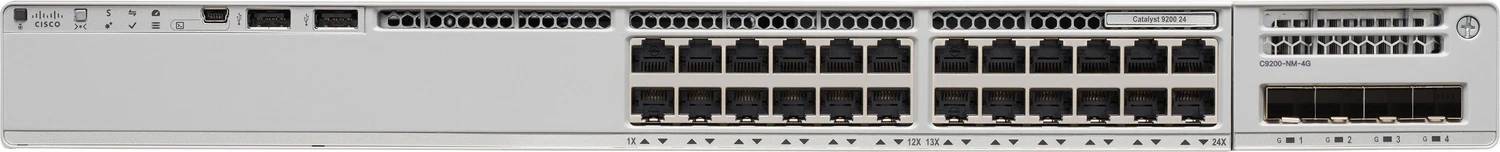

| Interfaces | 24 x 10/100/1000 Base-T RJ-45 ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Power | Power |

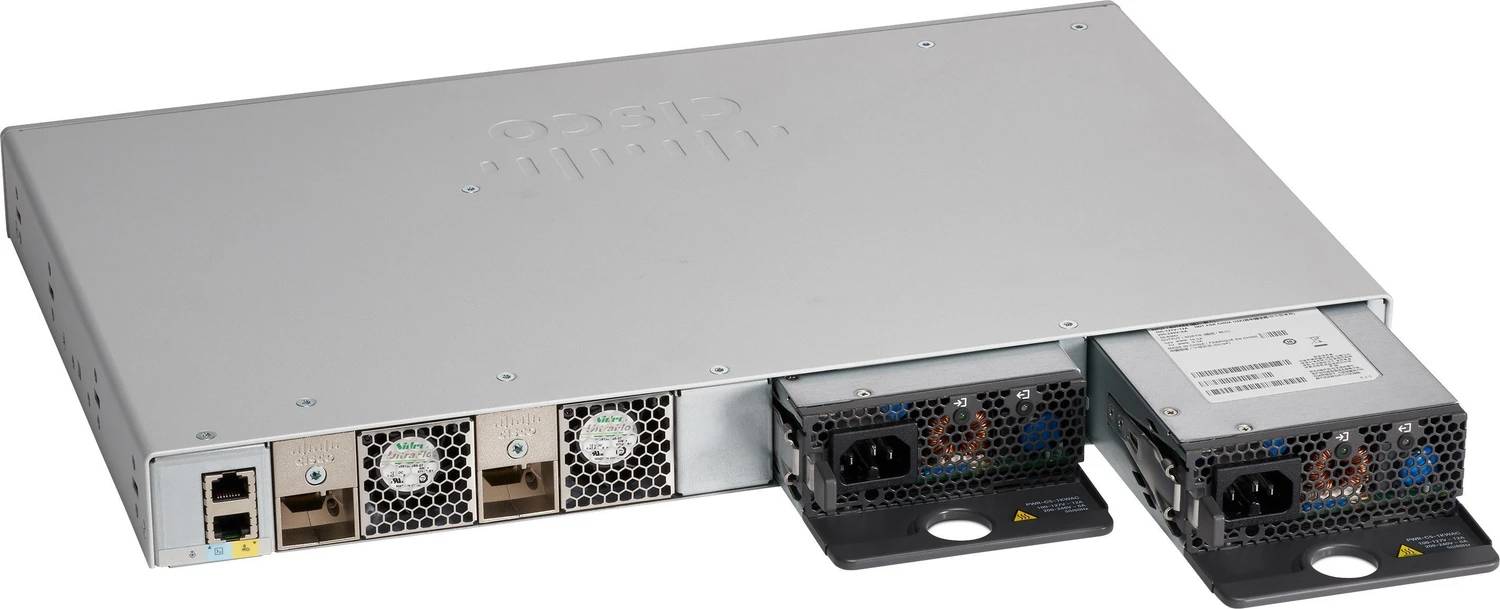

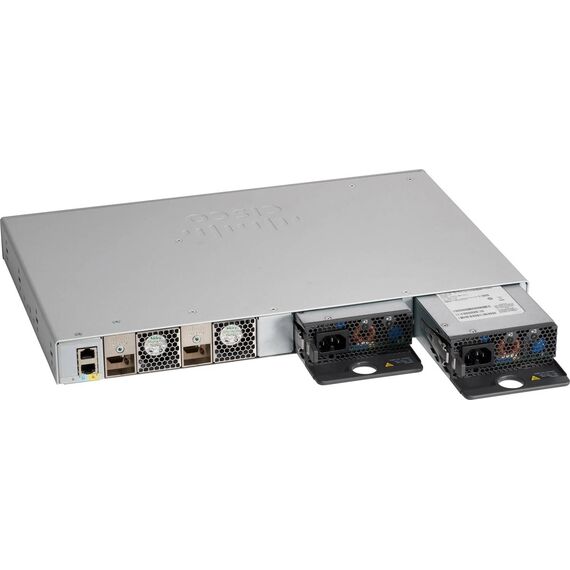

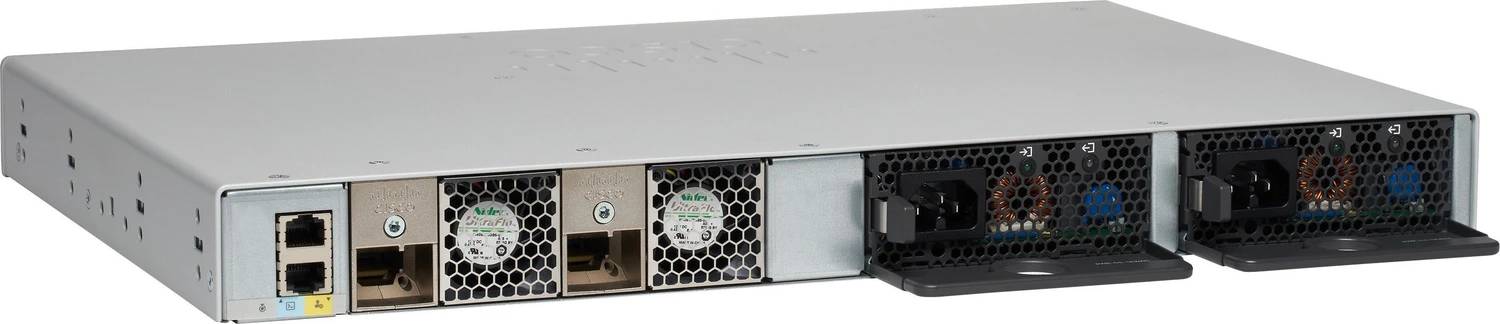

| Power Device | Internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Provided | 125 Watt |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Miscellaneous | Miscellaneous |
| MTBF | 587,800 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.5 cm |
| Depth | 35 cm |
| Height | 4.4 cm |
| Weight | 5 kg |
| Environmental Parameters | Environmental Parameters |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Cisco - C9200-24T-E
More Details
Product Code
677QV88
EAN Code
0889728168229
Manufacturer
Cisco
