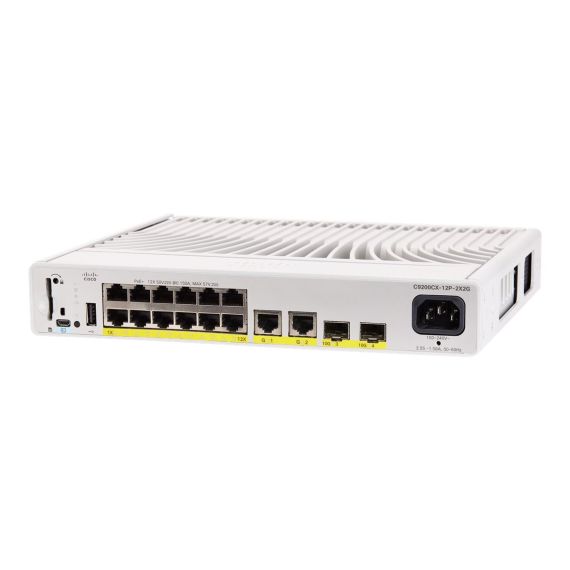

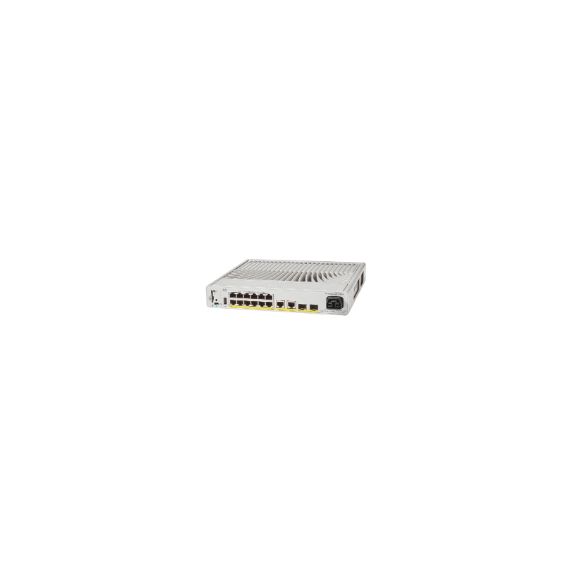

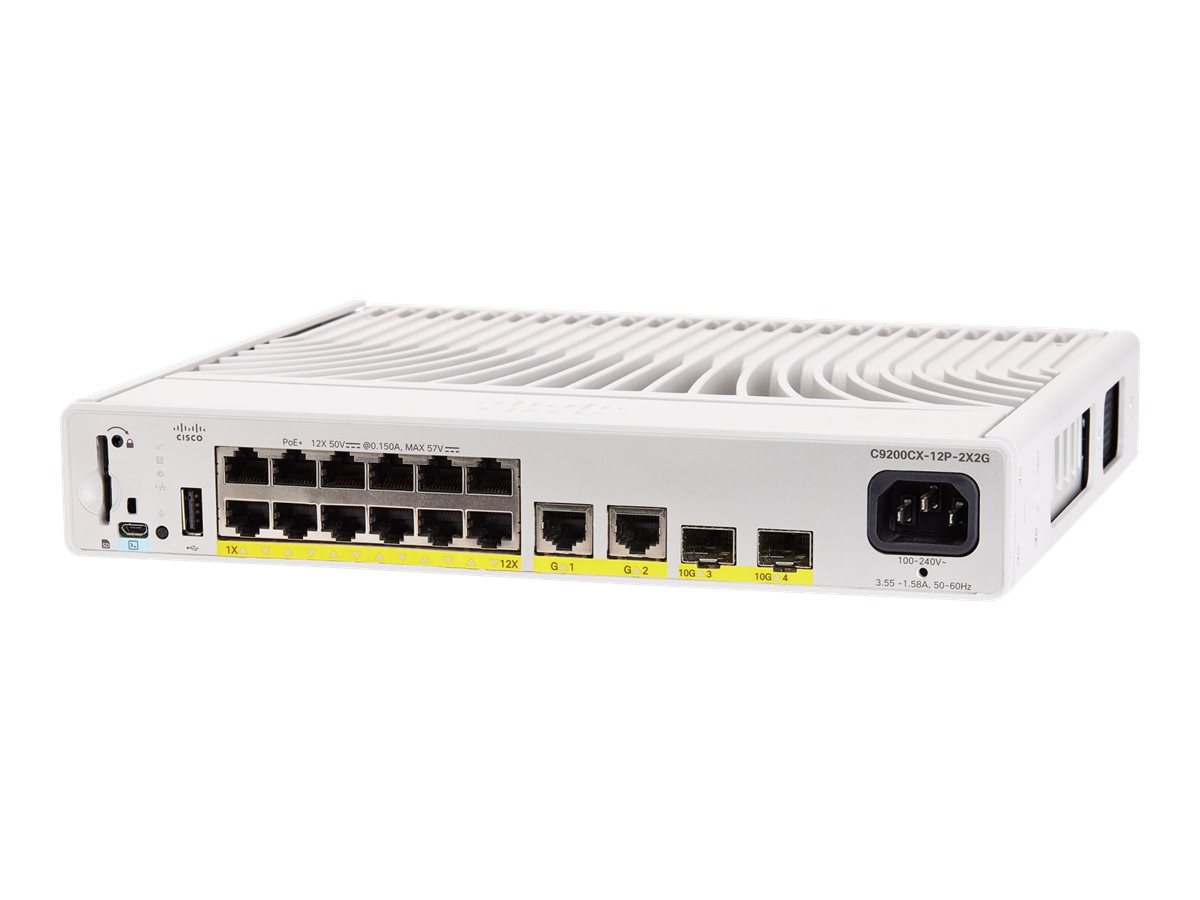

Cisco Catalyst 9200CX - Network Advantage - switch - compact - L3 - Managed - 12 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (240 W) | C9200CX-12P-2XGH-A
Please sign in so that we can notify you about a reply
Product Features
- Robust capacity
With support for up to 16 virtual networks, 14,000 IPv4 routes, and dual-stack IPv4/IPv6 routing entries, the Cisco Catalyst 9200CX ensures comprehensive coverage for evolving network demands. - Advanced networking
Featuring Layer 3 advanced switching, support for multiple routing protocols including EIGRP, OSPF, and RIP, and comprehensive Quality of Service (QoS) capabilities, this switch is designed to handle complex networks. - High performance
Equipped with a 4 GB RAM and 8 GB flash memory, the Cisco Catalyst 9200CX delivers exceptional performance, ensuring smooth and efficient operation even in high-demand environments. - Enhanced security
MACsec support, Access Control List (ACL) support, and 802.1x authentication provide a secure network environment, safeguarding against unauthorized access and threats. - Flexible connectivity
This switch offers a variety of connectivity options including RJ-45, SFP+ ports for uplinks, and a console (micro-USB), catering to diverse networking requirements and setups.
Special Fetures
- Supports up to 16,000 Flexible NetFlow entries for comprehensive traffic analysis
- Fanless design ensures silent operation, ideal for noise-sensitive environments
- Rack-mountable with a compact form factor, saving valuable space in data centers
- Compliant with a wide range of standards including IEEE 802.1D/Q/ae and more for broad compatibility
- Manageable via CLI, NETCONF, RESTCONF, and SNMP for flexible administration
Product Specification
| Device Type | Switch - 12 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 12 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 68 Gbps <br /> Forwarding rate: 50.59 Mpps <br /> Packet buffer size: 6 MB |
| Capacity | Virtual networks: 16 <br /> IPv4 routes: 14000 <br /> Direct IPv4 routes: 10000 <br /> Indirect IPv4 routes: 4000 <br /> IPv4 routing entries: 4000 <br /> IPv6 routing entries: 2000 <br /> Multicast scale: 1000 <br /> QoS scale entries: 1000 <br /> ACL scale entries: 1600 <br /> Flexible NetFlow entries: 16000 <br /> VLAN IDs: 4096 <br /> PVST instances: 128 <br /> STP Virtual Ports for PVST: 13000 <br /> STP Virtual Ports for MST: 13000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, OSPFv3, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, CLI, NETCONF, RESTCONF, YANG |
| Encryption Algorithm | 256-bit AES |
| Features | Fanless, Cisco UADP 2.0, MACsec support, FNF, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR, ACL support, ZTP |
| Compliant Standards | IEEE 802.3, IEEE 802.3at, IEEE 802.3af, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1ae |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Built-in Devices | RFID tag |
| Status Indicators | Power |
| Expansion / Connectivity | |
| Interfaces | 12 x 1000Base-T RJ-45 PoE+ - 30 W <br /> 2 x 1000Base-T RJ-45 <br /> 2 x 10GBase-X SFP+ uplink <br /> 1 x USB 2.0 <br /> 1 x console (micro-USB) |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 315 Watt |
| Voltage Required | AC 100-250/ DC 120-418 V (50/60 Hz) |
| Features | High Voltage DC (HVDC) |
| Miscellaneous | |
| Compliant Standards | Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Software / System Requirements | |
| Software Included | Cisco IOS XE 17.9 Universal |
| Dimensions & Weight | |
| Width | 26.9 cm |
| Depth | 24.4 cm |
| Height | 4.4 cm |
| Weight | 2.99 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day <br /> Technical support - consulting - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
