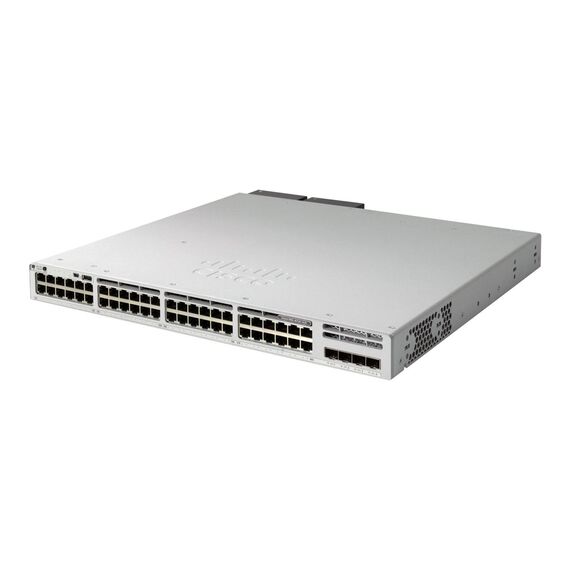

Cisco Catalyst 9300L / Network Advantage / switch / L3 / 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) / rack-mountable | C9300L-48T-4X-A
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 48 ports - L3 - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) |
| Performance | Switching capacity with stacking: 496 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps ¦ Forwarding rate with stacking: 369.05 Mpps |
| Capacity | IPv4 routes: 32000 ¦ IPv6 routes: 16000 ¦ Multicast scale: 8000 ¦ QoS scale entries: 5120 ¦ ACL scale entries: 5120 ¦ Routed ports: 416 ¦ VLANs supported: 4094 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
| Features | Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Built-in Devices | RFID tag |
| Status Indicators | Status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 48 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x management (LAN) RJ-45 ¦ 1 x console ¦ 1 x USB 2.0 |
| Power | Power |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Provided | 350 Watt |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | Miscellaneous |
| MTBF | 380,080 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.5 cm |
| Depth | 4.4 cm |
| Height | 40.9 cm |
| Weight | 7 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
| Environmental Parameters | Environmental Parameters |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Cisco - C9300L-48T-4X-A
General
48-Port
More Details
Product Code
677SM32
EAN Code
0889728174688
Manufacturer
Cisco
