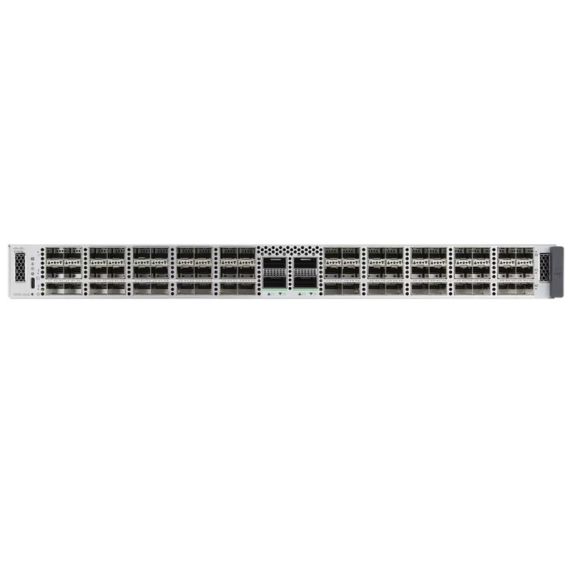

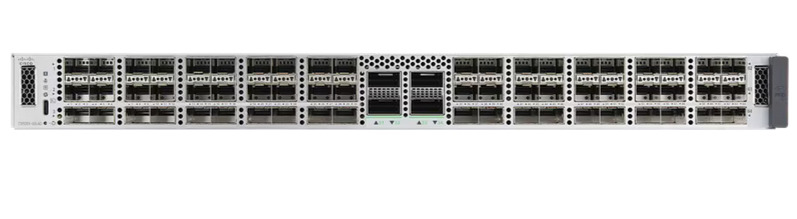

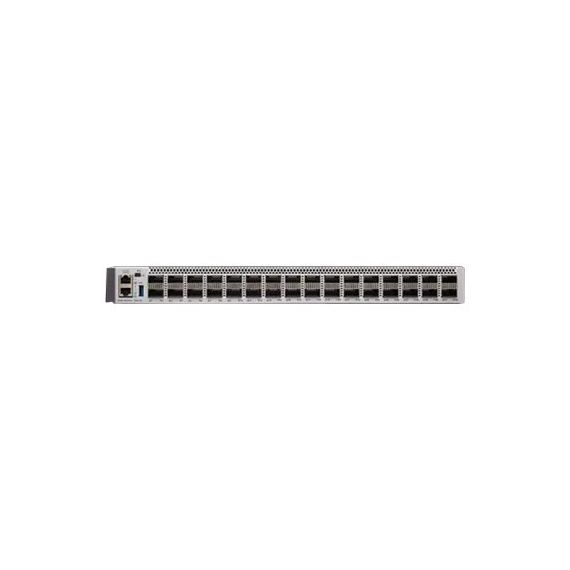

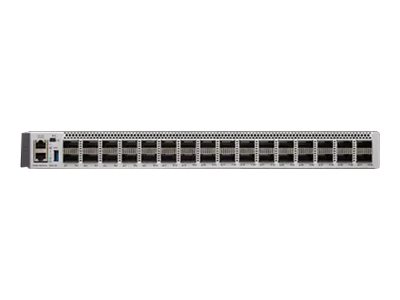

Cisco Catalyst 9500 - Network Advantage - switch - L3 - Managed - 28 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28 + 8 x 40 Gigabit / 100 Gigabit / 200 Gigabit / 400 Gigabit QSFP-DD - rack-mountable | C9500X-60L4D-A
Please sign in so that we can notify you about a reply
Product Features
- Advanced Layer 3 switching
The Cisco Catalyst 9500 features advanced Layer 3 switching capabilities, enabling efficient routing and switching operations across networks. This functionality ensures high performance and reliability for enterprise networking needs. - Comprehensive standards compliance
This device adheres to a wide range of compliance standards, including IEEE 802.1D, IEEE 802.1p, and more, ensuring its compatibility and interoperability within diverse network environments. - Robust power management
With support for hot-plug and the ability to support up to 2 internal power supplies, the Cisco Catalyst 9500 offers reliable power management and redundancy options, minimizing downtime and maintaining network integrity. - Efficient remote management
Equipped with multiple remote management protocols such as NETCONF, RESTCONF, and SNMP, the Cisco Catalyst 9500 allows for seamless and flexible network management, catering to a variety of operational needs. - Secure networking
The switch's comprehensive security features, including IEEE 802.1x compliance, provide a secure networking environment by enforcing access controls and network authentication.
Special Fetures
- Up to 960-Gbps switching capacity (IPv4) with up to 1440 Mpps of throughput
- Up to 24 nonblocking 40 Gigabit Ethernet QSFP ports
- Platinum-rated AC power supplies
- Up to 512,000 Flexible NetFlow (FNF) entries in hardware
- Up to 32 MB of shared buffer per ASIC
- Up to 64,000 routing entries for high-end campus access and aggregation deployments
- IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
- Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration
- Support for both static and dynamic NAT and Port Address Translation (PAT)
- Scalable routing (IPv4, IPv6, and multicast) tables and Layer 2 tables
Product Specification
| Device Type | Switch - 28 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 28 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28 + 8 x 40 Gigabit / 100 Gigabit / 200 Gigabit / 400 Gigabit QSFP-DD |
| Performance | Switching capacity: 12 Tbps <br /> Forwarding rate: 8 Bpps |
| Capacity | Indirect IPv4 routes: 2000000 <br /> Host IPv4 routes: 256000 <br /> Indirect IPv6 routes: 1000000 <br /> Host IPv6 routes: 128000 <br /> IPv4 routes (Multicast): 32000 <br /> IPv6 routes (Multicast): 16000 <br /> QoS ACL scale: 8000 <br /> Security ACL scale: 8000 <br /> FNF entries: 2000000 <br /> Switched virtual interfaces (SVIs): 4094 <br /> PVST instances: 4094 <br /> STP Virtual Ports for PVST: 32000 <br /> STP Virtual Ports for MST: 32000 <br /> Switched virtual interfaces (SVIs): 4096 |
| MAC Address Table Size | 256K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, RIP, BGP-4, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, OSPFv2, PIM-SM, static IP routing, EIGRP for IPv6, GRE, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, policy-based routing (PBR), RIPng, MPLS, BGP for IPv6, MSTP, STP, LISP, IS-ISv4, mVPN |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, HTTP, CLI, NETCONF, RESTCONF, gRPC, YANG |
| Encryption Algorithm | 256-bit AES-GCM |
| Features | IP-routing, VPN support, full duplex mode, NSF, QoS, LACP support, RSPAN, NetFlow, VRF, SPQ, IPFIX, FNF, 802.1x authentication, PTP, MACsec support, VOQ, CoPP, VXLAN, LISP, TrustSec support, EoMPLS, HQoS, Blue Beacon LED, ZTP, CoAP support, secure boot, SPAN, SGT caching, FHS, MQC, AVB, PVLAN support, TrustAnchor module, GIR mode, image signing, CDP, BSR Mechanism, Cisco UADP, VXLAN Distributed Anycast Gateway, trustworthy systems |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ba |
| RAM | 32 GB |
| Flash Memory | 16 GB |
| Built-in Devices | RFID tag |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | 28 x 40/100GBase-X QSFP28 <br /> 8 x 40/100/200/400GBase-X QSFP-DD <br /> 1 x USB-C management |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 0 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 |
| Miscellaneous | |
| MTBF | 123,950 hours |
| Compliant Standards | AS/NZS 60950-1, UL 60950-1, IEC 60950-1, EN 300 386 V1.6.1, EN 61000-3-3:2013, EN 61000-3-2:2014, EN 55024:2010+A1:2015, EN 55032:2012, EN 62368-1, IEC 62368-1, CISPR 32, ICES-003:2016 issue 6 Class A, EN 55032:2015 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, CISPR 24:2010+A1:2015, CNS13438:2006 Class A, AS/NZS 62368-1, 47 CFR Part 15:2016, CISPR32:2015:Ed:2, KS C 9835, KS C 9832, EN55035:2017+A11:2020 |
| Software / System Requirements | |
| Software Included | Cisco IOS XE 17.7 Universal |
| Dimensions & Weight | |
| Width | 44.45 cm |
| Depth | 55.37 cm |
| Height | 4.39 cm |
| Weight | 10.04 kg |
| Manufacturer Warranty | |
| Service & Support | Limited hardware warranty - replacement - lifetime - response time: next business day / same day shipment |
Features - Cisco - C9500X-60L4D-A
More Details
Product Code
CG40360
EAN Code
0889728522793
Manufacturer
Cisco
