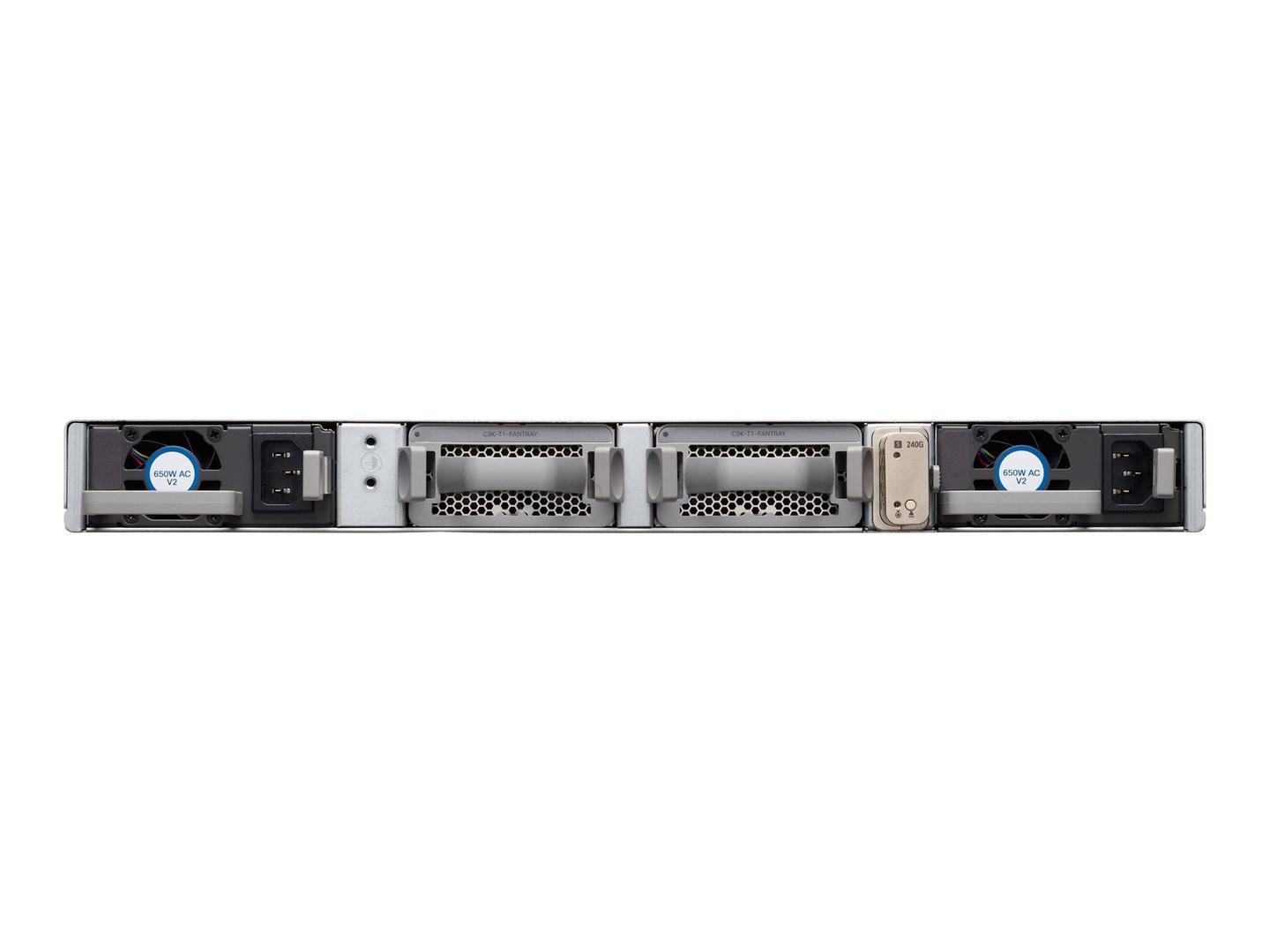

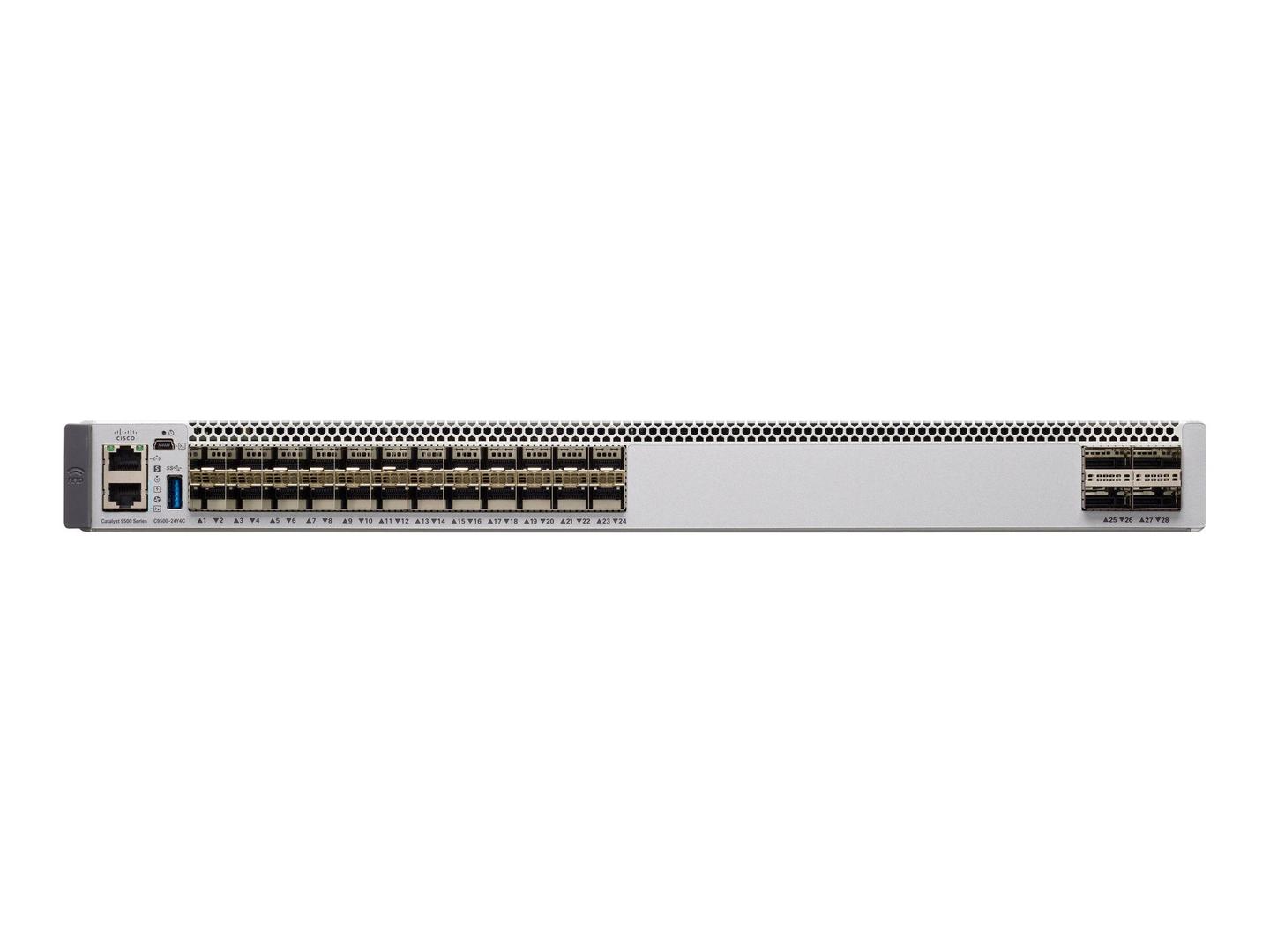

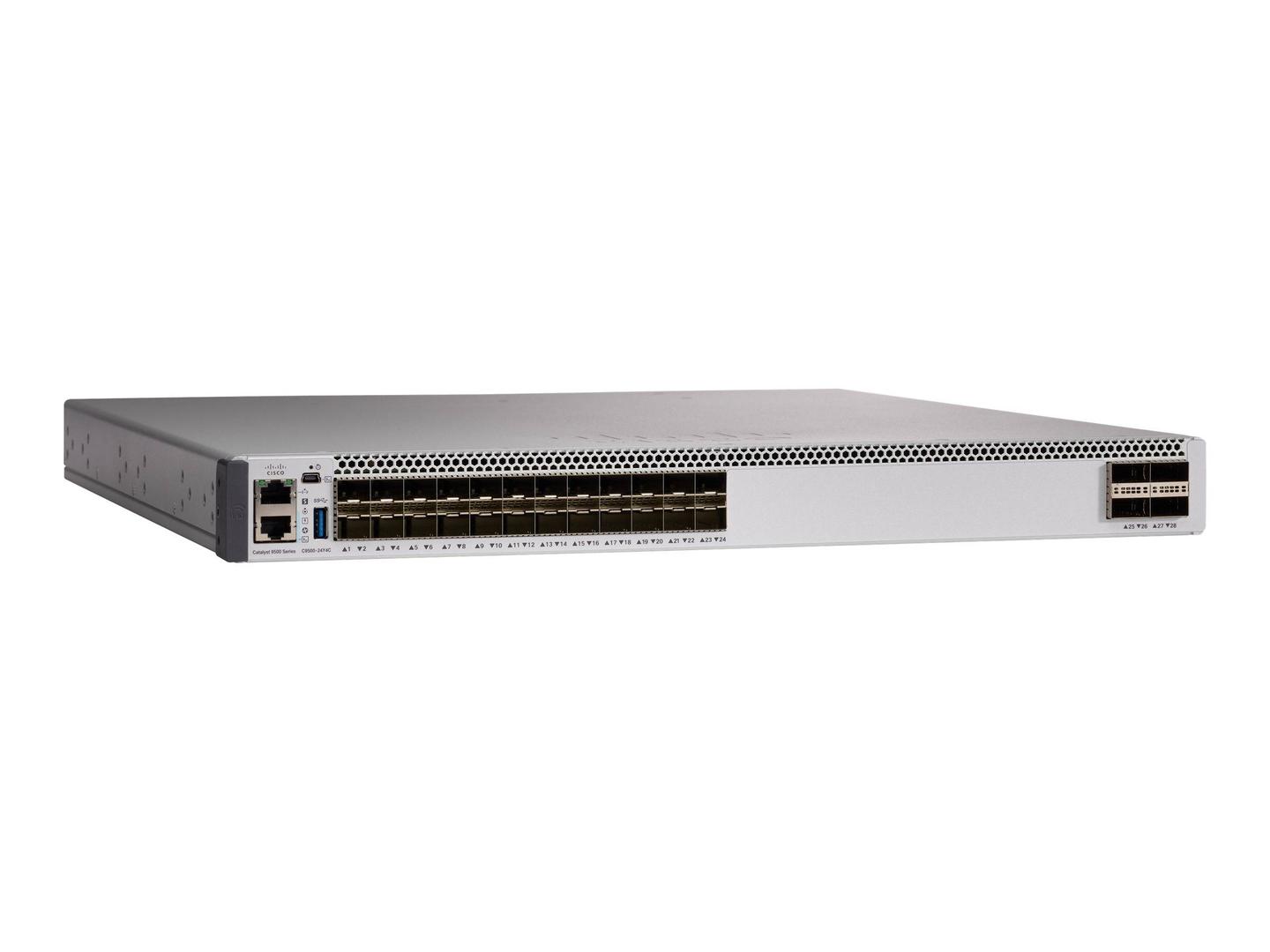

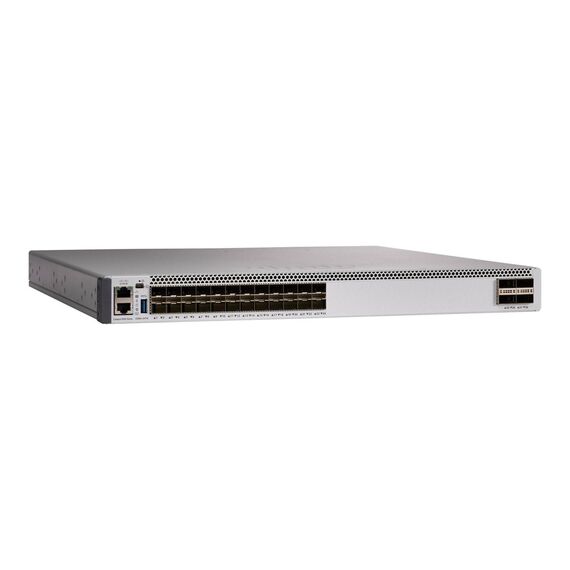

Cisco Catalyst 9500 / Network Essentials / switch / L3 / Managed / 24 x 25 Gigabit SFP28 / rack-mountable | C9500-24Y4C-E
Please sign in so that we can notify you about a reply
Special Features
- Up to 960-Gbps switching capacity (IPv4) with up to 1440 Mpps of throughput
- Up to 24 nonblocking 40 Gigabit Ethernet QSFP ports
- Platinum-rated AC power supplies
- Up to 512,000 Flexible NetFlow (FNF) entries in hardware
- Up to 32 MB of shared buffer per ASIC
- Up to 64,000 routing entries for high-end campus access and aggregation deployments
- IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
- Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration
- Support for both static and dynamic NAT and Port Address Translation (PAT)
- Scalable routing (IPv4, IPv6, and multicast) tables and Layer 2 tables
Product Specification
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 24 x 25 Gigabit SFP28 |
| Performance | Switching capacity (full duplex): 1.6 Tbps ¦ Forwarding rate: 1 Bpps |
| Capacity | Routing table entries: 80000 ¦ Indirect IPv4 routes: 212000 ¦ Host IPv4 routes: 90000 ¦ Indirect IPv6 routes: 212000 ¦ Host IPv6 routes: 90000 ¦ Multicast scale: 32000 ¦ QoS ACL scale: 16000 ¦ Security ACL scale: 270000 ¦ FNF entries: 96000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, IGMP, VRRP, MSDP, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF |
| Encryption Algorithm | 256-bit AES |
| Features | DHCP support, NAT support, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), 802.1x authentication, integrated Wireshark, Ethernet over MPLS (EoMPLS), Private VLAN, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), First Hop Security (FHS) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba |
| Processor | 1: 2.4 GHz |
| RAM | 16 GB |
| Flash Memory | 16 GB |
| Built-in Devices | RFID tag |
| Status Indicators | Status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 25Gbit LAN SFP28 ¦ 4 x 100Gbit LAN ¦ 2 x USB 3.0 |
| Power | Power |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 650 Watt |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | Miscellaneous |
| MTBF | 336,780 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements | Software / System Requirements |
| Software Included | Cisco IOS XE 16.8.1 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.5 cm |
| Depth | 45.7 cm |
| Height | 4.39 cm |
| Weight | 9.52 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 65 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Cisco - C9500-24Y4C-E
General
24-Port
More Details
Product Code
677PW41
EAN Code
0889728142656
Manufacturer
Cisco
