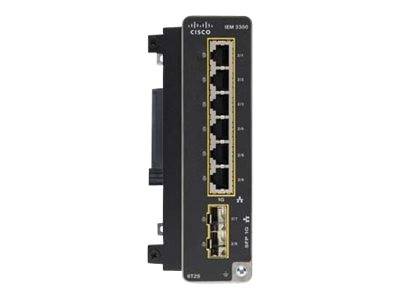

Cisco Catalyst / Expansion module / Gigabit Ethernet x 6 + SFP (mini-GBIC) x 2 / for Catalyst IE3300 Rugged Series | IEM-3300-6T2S=
Please sign in so that we can notify you about a reply
Special Features
- Built for harsh environments and temperature ranges (-40°C to +75°C)
- Fanless, convection-cooled with no moving parts for extended durability
- Hardened for vibration, shock and surge, and electrical noise immunity
- Complies with multi-industry specifications for automation, ITS, and substation environments
- Improves uptime, performance, and safety of industrial systems and equipment
- Covers a wide range of Power over Ethernet (PoE) application requirements
- Alarm I/O for monitoring and signaling to external equipment
- Provides secure access for new high-speed applications in the industrial space
- Expandable to 26 ports of GE by attaching one of 10 compatible modules
- Connects high-speed wireless access points (802.11n, 802.11ac)
- Enables High-Definition (HD) IP cameras and Programmable Logic Controllers (PLC)
- Supports delay-sensitive applications and time-sensitive networks
- Delivers multiple rings and redundant ring topology for new network configurations
- Extends geographical scalability where longer-distance connectivity is required
- Controls costs by limiting wiring, distribution panels, and circuit breakers
- Reduces equipment needs, thus requiring less space and reducing heat dissipation
- Enables ready-to-use PoE devices, such as IP phones, cameras, and wireless access points
- Allows for easy configuration and monitoring
- Eliminates the need for more complex terminal emulation programs
- Reduces the cost of deployment
- True zero-configuration and simple switch replacement in case of a failure
- No networking expertise required
- Helps ensure fast recovery
- Provides enhanced flow and threat visibility
- Enables optimization of the network infrastructure, reduces operation costs, and improves capacity planning and security incident detection
Product Specification
| Device Type | Expansion module |
| Form Factor | DIN rail mountable |
| Networking | Networking |
| Ports | Gigabit Ethernet x 6 + SFP (mini-GBIC) x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 1000Base-T |
| Data Link Protocol | Gigabit Ethernet |
| Features | Cisco Gigabit EtherChannel, Syslog support, MAC address filtering, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), RADIUS support, SSH support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), LLDP support, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), SNMP support, IGMP filtering, SmartPort technology, Bridge protocol data unit (BPDU), Secure Copy (SCP), Network Timing Protocol (NTP), IGMP querier, VLAN Trunking Protocol (VTP) v.3, Rapid Reconfiguration of Spanning Tree (RSTP), VLAN Trunking Protocol (VTP) v.2 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 6 x 1000Base-T - RJ-45 ¦ 2 - SFP (mini-GBIC) |
| Miscellaneous | Miscellaneous |
| MTBF | 3,729,130 hours |
| Compliant Standards | EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, FCC CFR47 Part 15, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-78, MIL-STD-810, EN 50121-4, IP30, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032, EN 60068-2-52, EN 60068-2-60, CISPR 32 Class A, UL 62368-1, IEC 60079-0, EN 60079-0, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0 |
| Power | Power |
| Power Consumption Operational | 8 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.1 cm |
| Depth | 13.5 cm |
| Height | 15.2 cm |
| Weight | 880 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Compatibility Information | Compatibility Information |
| Designed For | Cisco Catalyst IE3300 Rugged Series |
Features - Cisco - IEM-3300-6T2S=
More Details
Product Code
677RF98
EAN Code
0889728205016
Manufacturer
Cisco
