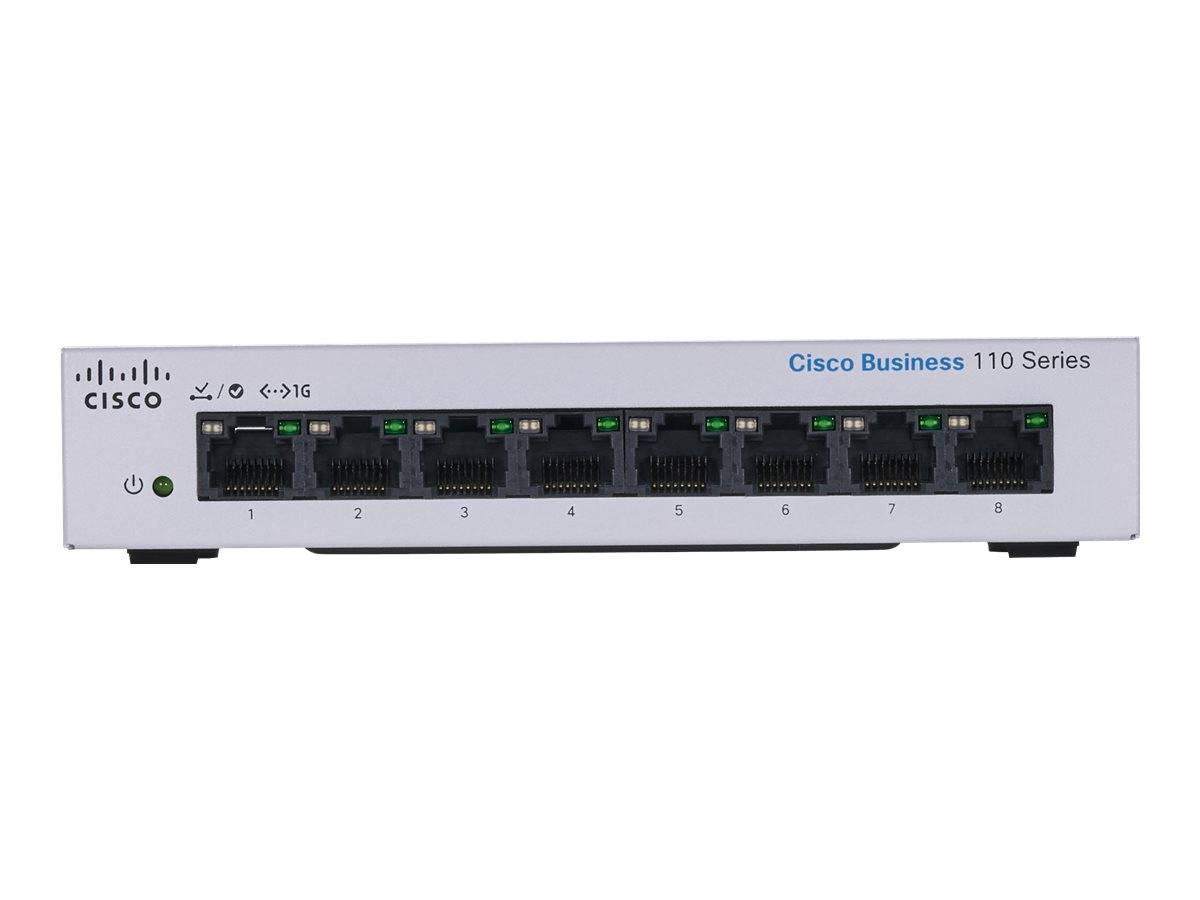

Cisco Business 110 Series 110-8T-D / Switch / unmanaged / 8 x 10/100/1000 / desktop, rack-mountable, wall-mountable / DC power | CBS110-8T-D-UK
Product Features
- Simple
Cisco Business 110 Series switches work right out of the box, with plug-and-play capability without software installation and configuration. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standards-based Cisco solution, Cisco Business 110 Series switches are also designed to immediately accommodate all of the devices in your network. - High performance
Cisco Business 110 Series switches deliver the performance you need to run your business applications, including bandwidth-intensive cloud applications and video services, and to avoid slow and sluggish networks. They support Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds. - Reduced energy costs
Cisco Business 110 Series switches are designed to help conserve energy by optimizing power use without compromising performance, which protects environment and reduces your energy costs. In addition, they support the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods. - Advanced technologies
All switches include advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on all models automatically prioritizes delay-sensitive services such as voice or video to improve your network's performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required. - Peace of mind
Cisco Business 110 Series switches deliver the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance.
Special Features
- Simple
- Flexible deployment
- High performance
- Reduced energy costs
- Advanced technologies
- Peace of mind
Product Specification
Device Type | Switch - 8 ports - unmanaged |
Enclosure Type | Desktop, rack-mountable, wall-mountable |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 |
Performance | Forwarding performance (64-byte packet size): 11.9 Mpps ¦ Switching capacity: 16 Gbps |
Capacity | Buffer capacity (MB): 2 |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 9216 bytes |
Features | Flow control, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Cable Diagnostics Function, fanless, Energy Efficient Ethernet, Head-of-line (HOL) blocking, Weighted Round Robin (WRR), loopback detection, security slot (Kensington security lock compatible) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
Status Indicators | Power, link/activity |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 8 x 10/100/1000 Base-T RJ-45 |
Power | Power |
Power Provided | 1 A |
Voltage Required | DC 12 V |
Power Consumption Operational | 4.13 Watt |
Miscellaneous | Miscellaneous |
Included Accessories | Mounting kit |
MTBF | 2,066,844 hours |
Compliant Standards | FCC Class B certified, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
Localisation | United Kingdom |
Dimensions & Weight | Dimensions & Weight |
Width | 16 cm |
Depth | 10.4 cm |
Height | 3 cm |
Weight | 430 g |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - lifetime ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 - 90% (non-condensing) |
