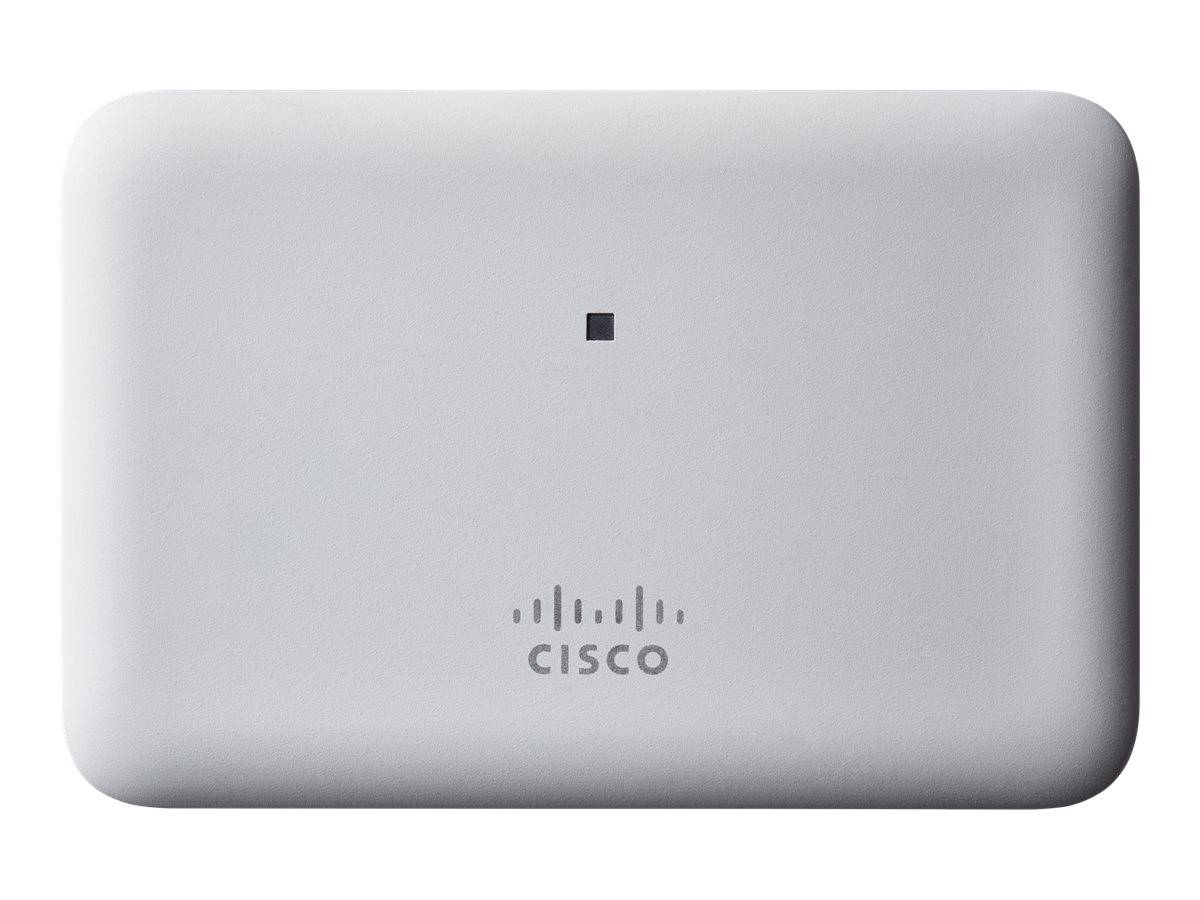

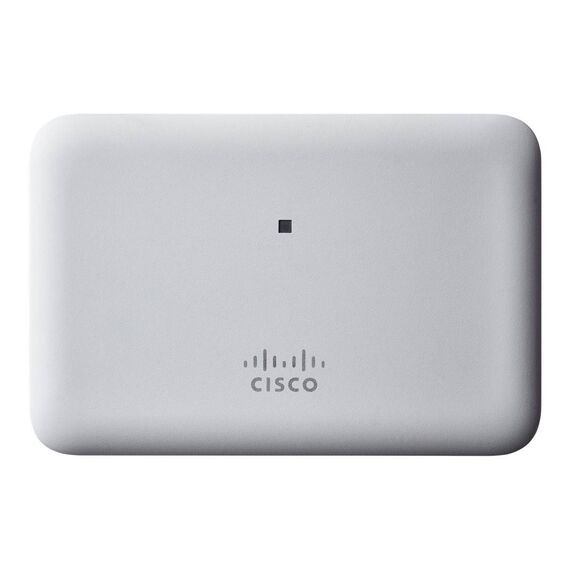

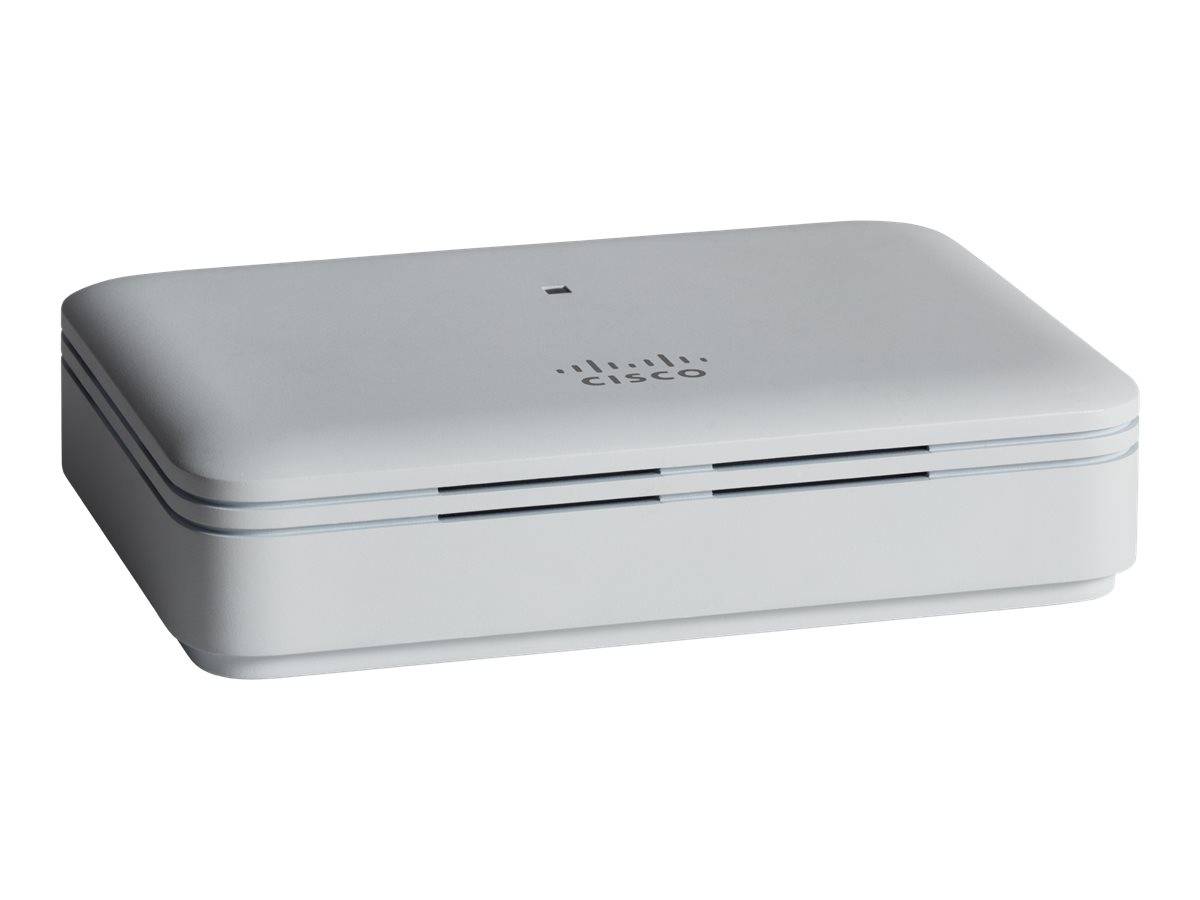

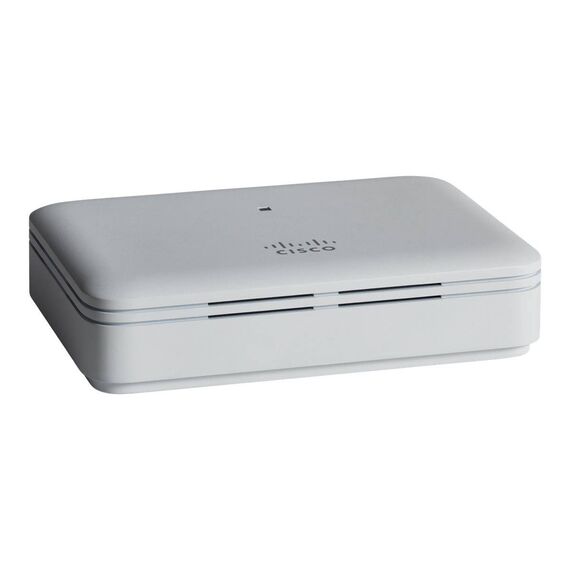

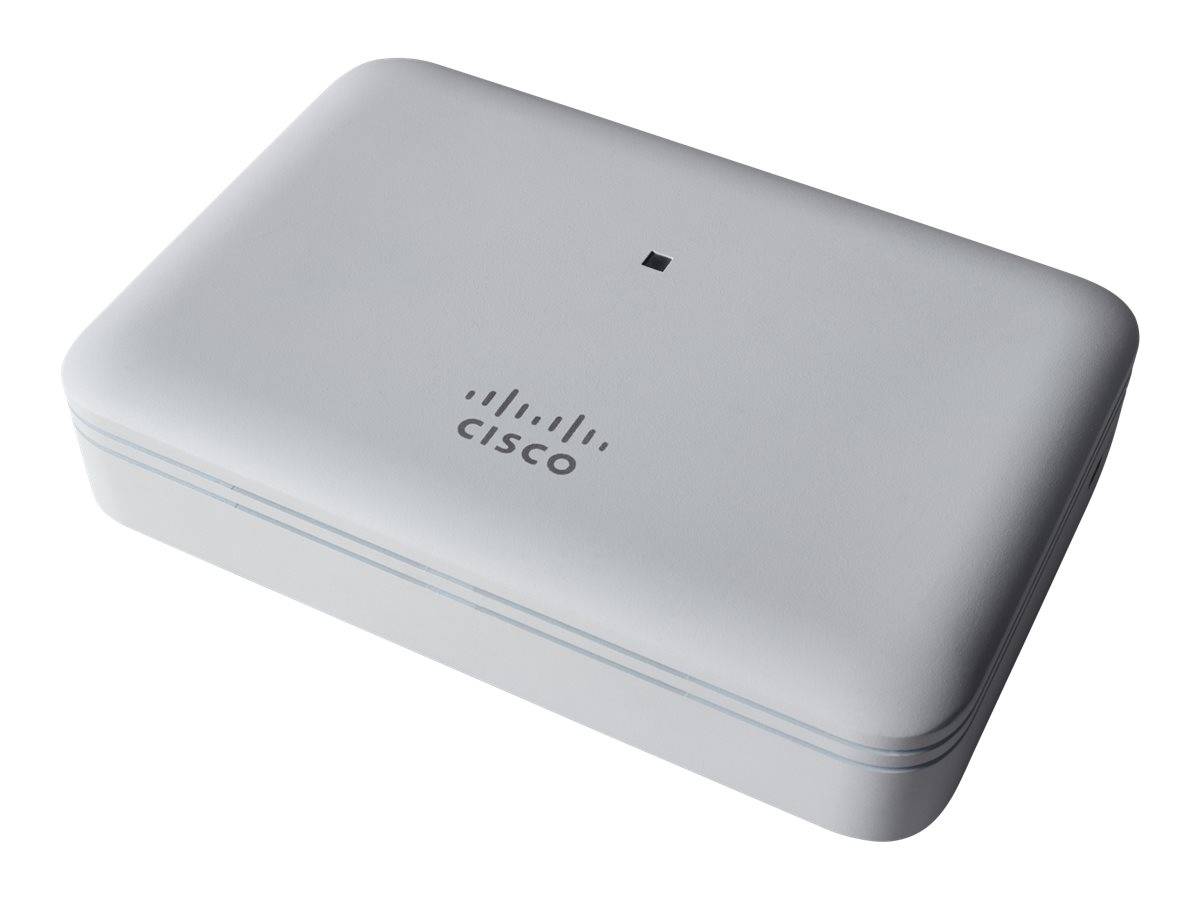

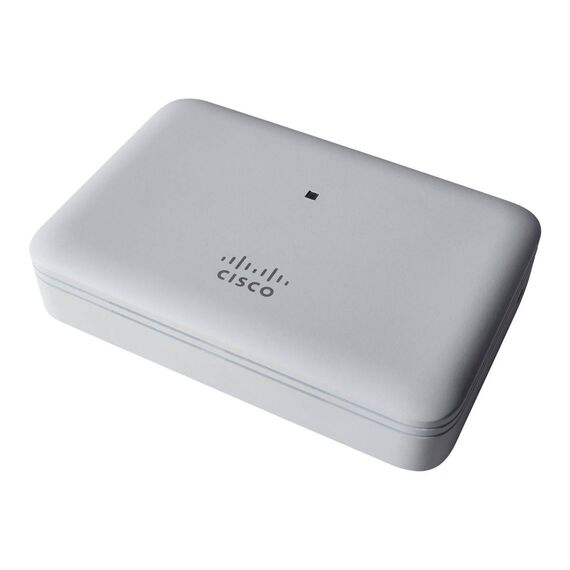

Cisco Business 141ACM Mesh Extender / Wi-Fi range extender / Wi-Fi 5 / 2.4 GHz, 5 GHz / DC power / desktop | CBW141ACM-E-EU
Please sign in so that we can notify you about a reply
Product Features
- IMPORTANT
The Cisco Business mesh extenders only work with Cisco Business Wireless 100 series and 200 series access points (CBW140AC-B, CBW240AC-B, and CBW145AC-B) - FLEXIBILITY
Mix and match Cisco Business Wireless access points and these MU-MIMO (2x2) mesh extenders to increase your Wi-Fi coverage - SET UP IN MINUTES
Scan a QR code with Cisco Business Mobile app, and power on the device. No additional steps required - DEPLOYMENT
Flexible deployment with integrated 4-port GE switch helps power IP phone or other IP power devices (DC Power adapter included) - PEACE OF MIND
One-year technical support and limited lifetime warranty
Special Features
- Easy to install on a desktop
- MU-MIMO
- Mesh technology support
- Increased wireless performance
Product Specification
| Device Type | Wi-Fi range extender |
| Width | 15.24 cm |
| Depth | 10.16 cm |
| Height | 3.77 cm |
| Weight | 365 g |
| Localisation | Europe |
| Processor / Memory / Storage | Processor / Memory / Storage |
| Processors Installed | 710 MHz |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Networking | Networking |
| Form Factor | Desktop |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 144 Mbps ¦ Maximum data rate (5 GHz): 867 Mbps |
| Capacity | Wireless clients per Wi-Fi radio: 200 ¦ Wireless clients: 400 |
| Status Indicators | Status |
| Features | Manageable, DFS support, Mesh networking, Wi-Fi Multimedia (WMM) support, RADIUS support, 802.1x authentication, Authentication, Authorization and Accounting (AAA), seamless roaming, 2x2 MU-MIMO technology, security slot (Kensington security lock compatible) |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, WPA2, WPA3 |
| Authentication Method | RADIUS, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.11r, IEEE 802.11ac Wave 2 |
| Aerial | Aerial |
| Antenna | Internal |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1000Base-T (PoE output) - RJ-45 - 15.4 W ¦ 3 x 1000Base-T - RJ-45 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | VCCI, ICES-003, FCC Part 15.247, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, EN 300 328, EN 50385, FCC OET Bulletin 65c, EN 301 489-1, RSS-247, EN 301 893, CAN/CSA-C22.2 No. 60950-1, EMI Class B, EN 301 489-17 |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE |
| Voltage Required | DC 44 - 52 V |
| Power Consumption Operational | 8.5 Watt |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Cisco - CBW141ACM-E-EU
More Details
Product Code
677TV34
EAN Code
0889728274814
Manufacturer
Cisco
