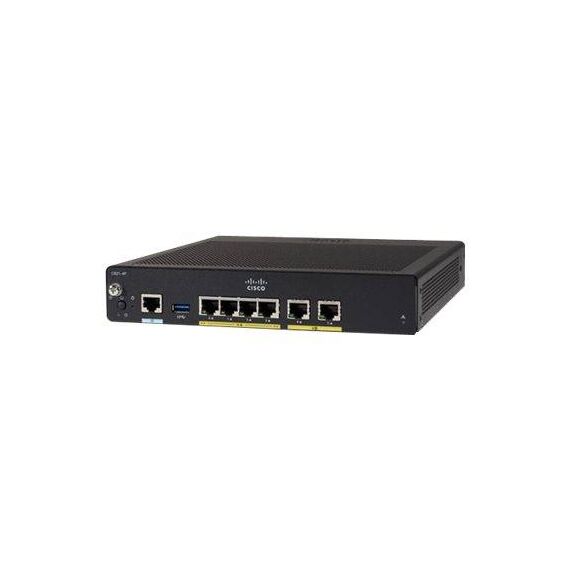

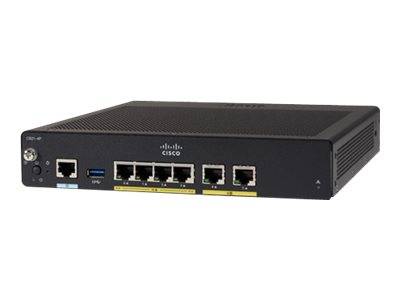

Cisco Integrated Services Router 931 / Router / 4-port switch / GigE / WAN ports: 2 | C931-4P
Please sign in so that we can notify you about a reply
Product Features
- Advanced connectivity
Multiple connectivity options such as Gigabit Ethernet, ADSL, and VDSL keep users connected, even during an outage. - Enterprise-class performance
Upgradable licensing accommodates more devices and things connecting to the network and cloud applications. - Easy provisioning
A compact, fanless design makes the series easy to use from any location in your home or office.
Special Features
- Advanced connectivity
- Enterprise-class performance
- Easy provisioning
Product Specification
| Device Type | Router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | L2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS, RTP, HTTP, HTTPs, cRTP |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD), RSVP, STP, MGRE |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
| Encryption Algorithm | DES, Triple DES, AES, SSL, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | NAT support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, MAC address filtering, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, DHCP relay, DHCP client, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), VPN Server, Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support, Storm Control, SmartPort technology, VPN client, Hierarchical Quality of Service (HQoS), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Multigroup HSRP (MHSRP), Network-Based Application Recognition (NBAR), Network-Based Application Recognition (NBAR) 2, Performance Routing (PfR), Class-Based Traffic Shaping (CBTS), Class-Based Traffic Policing (CBTP), Class-Based Weighted Random Early Detection (CBWRED), Cisco IP Service-Level Agreement (IP SLA), Cisco Next Generation Plug-and-Play (NG PnP) Protocol |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, EN 61000-6-1, AS/NZS 60950-1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI V-3, EN 61000-3-2:2006, EN 61000-3-3:2008, KN24, CNS13438:2006, EN 300 386 V1.6.1, CISPR 24:2010, EN 55024:2010, CISPR 22:2008, EN 300 386, TCVN 7189, EN 55032, CAN/CSA-C22.2 No. 60950-1, TCVN 7317, KN22:2009, ICES-003:2012 Issue 5 |
| Processor | 2.2 GHz |
| RAM | 1 GB |
| Flash Memory | 2 GB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | Software / System Requirements |
| OS Provided | Cisco IOS IP Base |
| Dimensions & Weight | Dimensions & Weight |
| Width | 22.86 cm |
| Depth | 24.13 cm |
| Height | 4.32 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Cisco - C931-4P
More Details
Product Code
677QZ17
EAN Code
0889728172097
Manufacturer
Cisco
