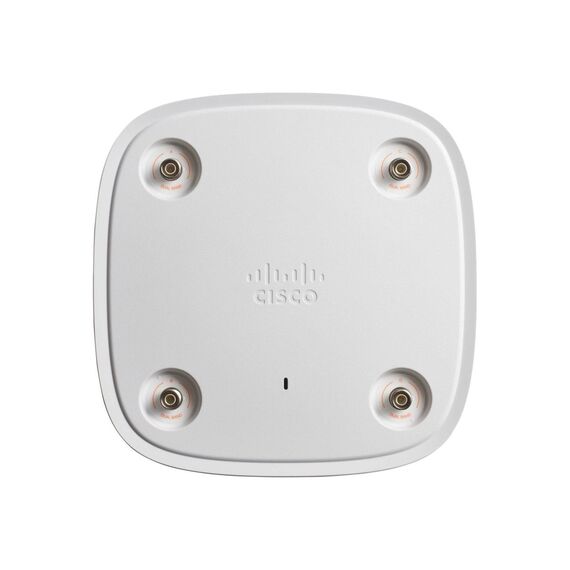

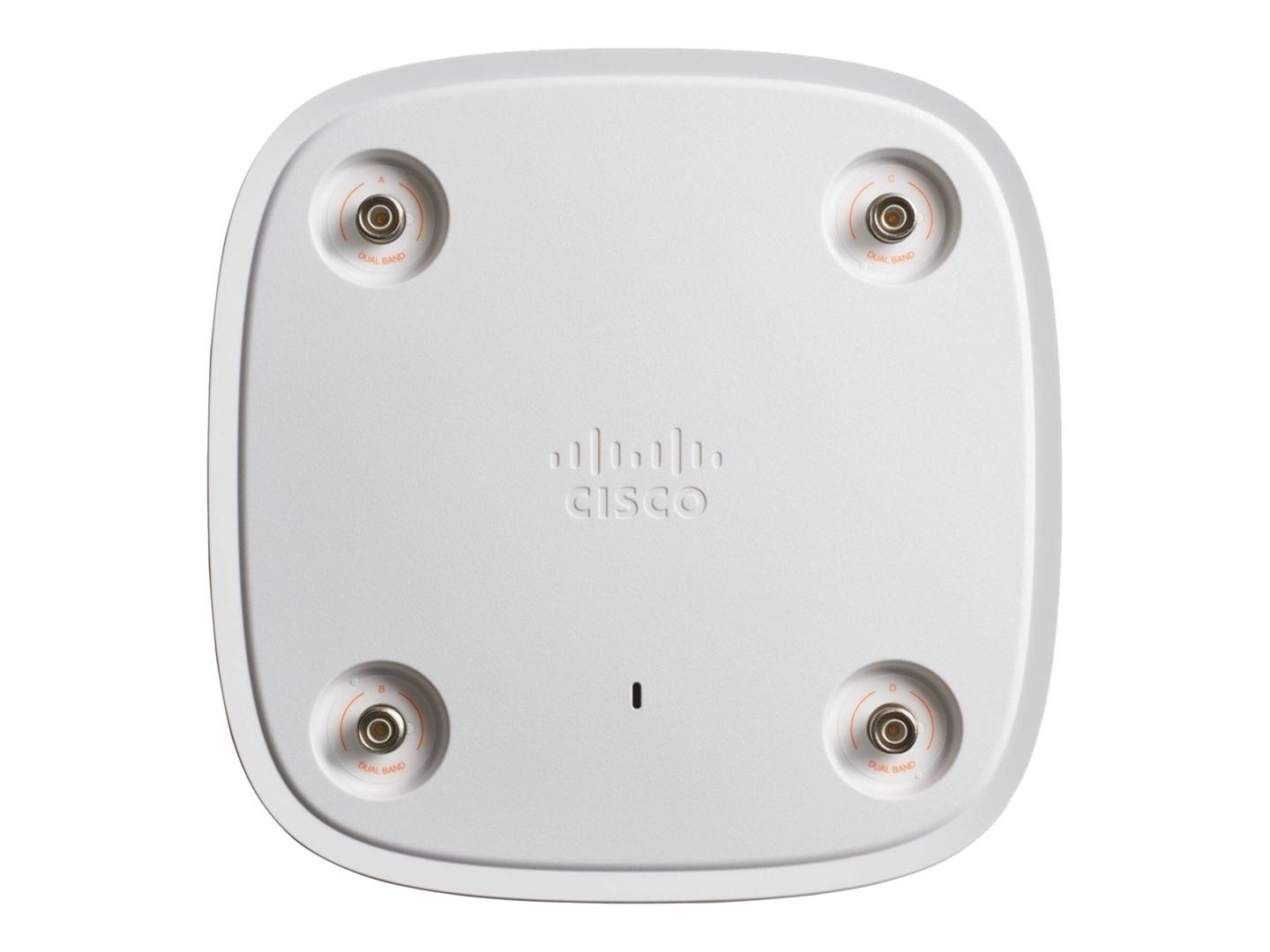

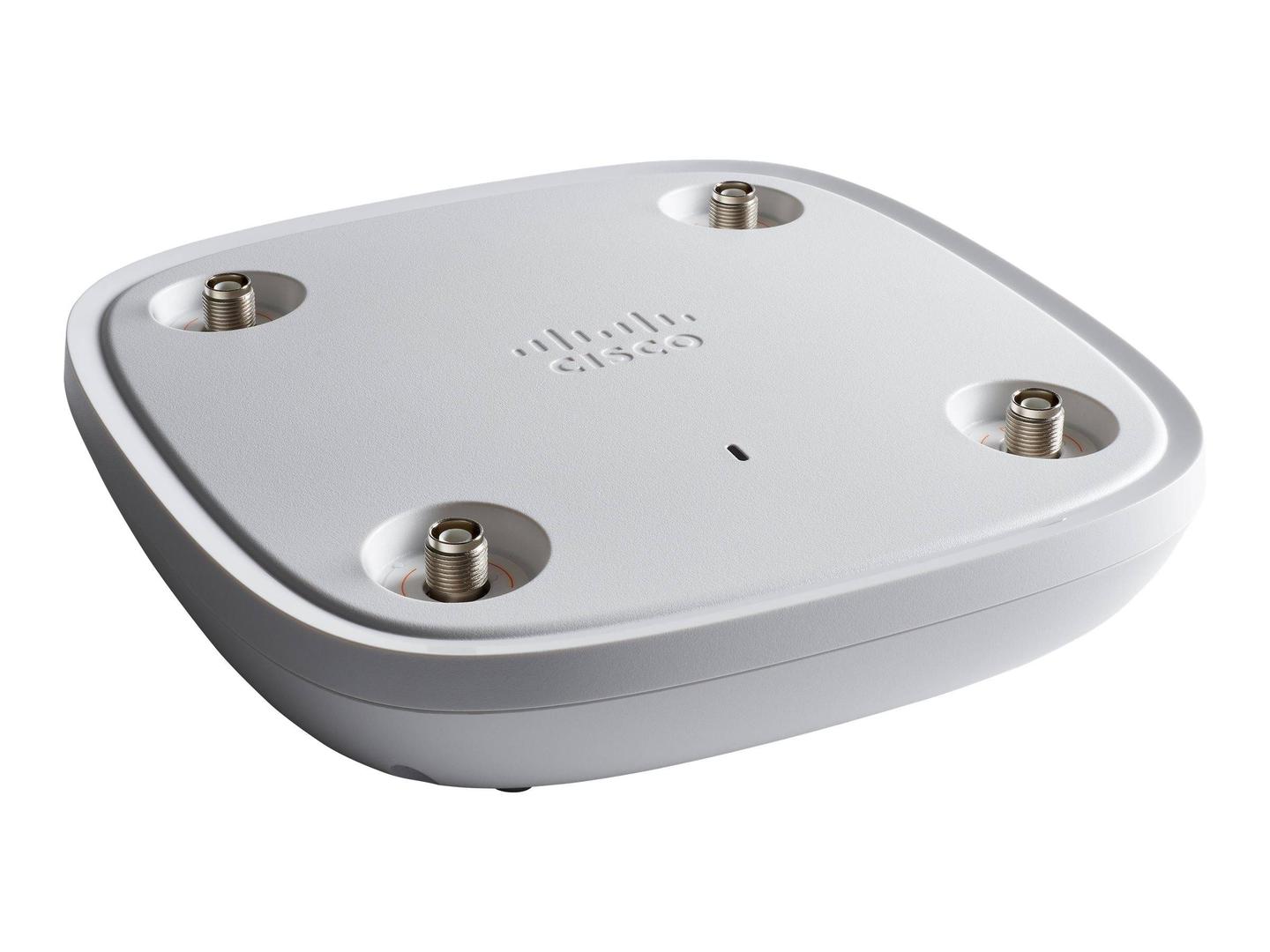

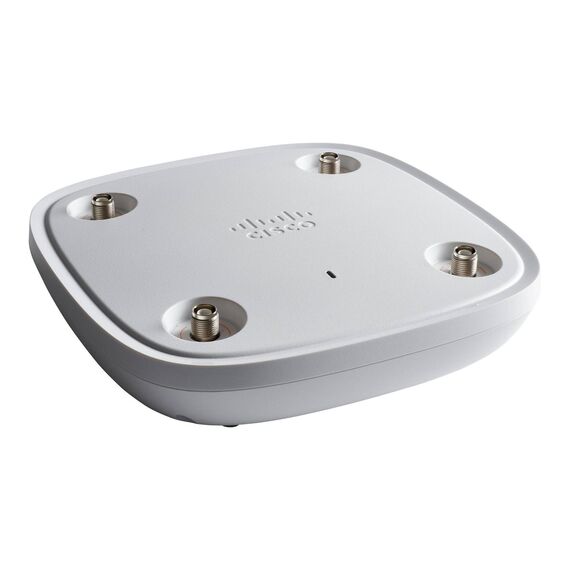

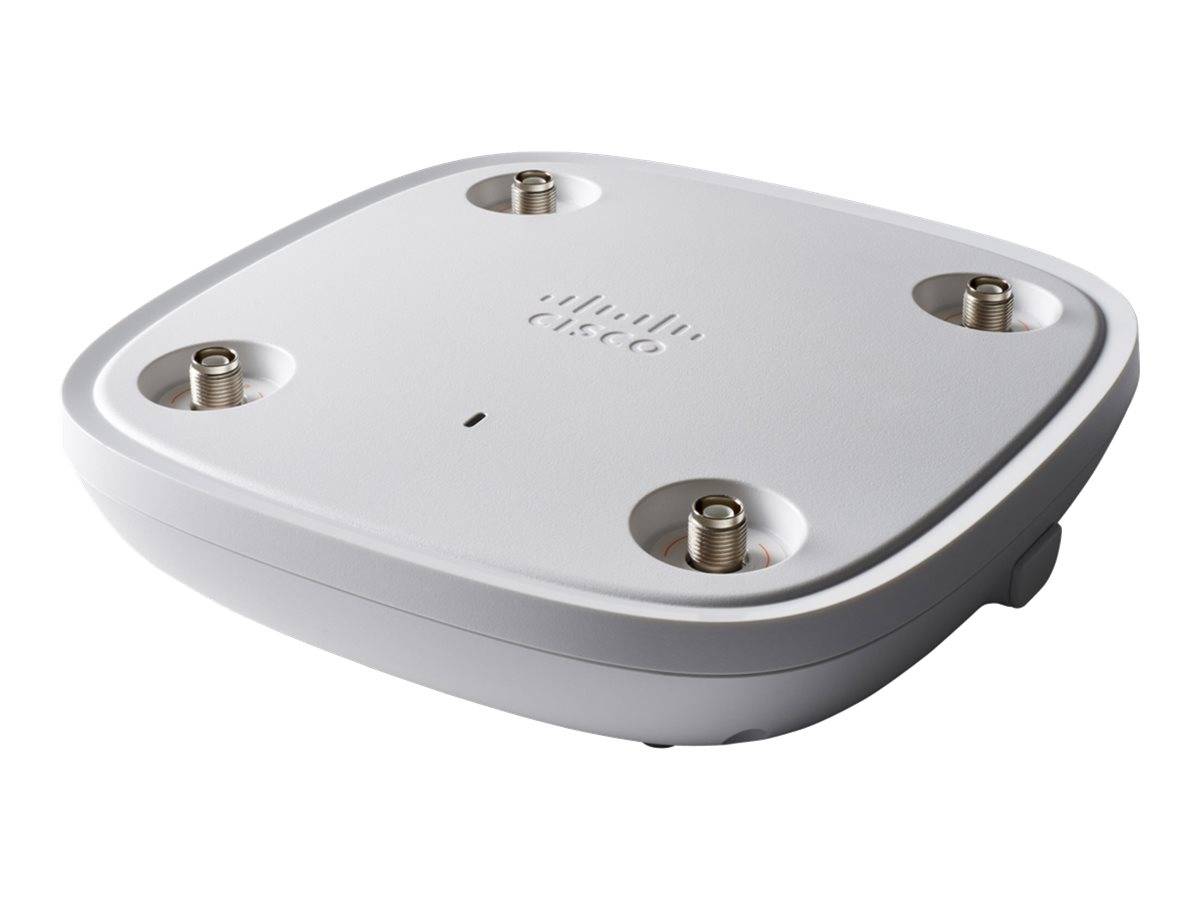

Cisco Catalyst 9115AXE / Radio access point / Bluetooth 5.0 / Bluetooth, Wi-Fi 6 / 2.4 GHz, 5 GHz | C9115AXE-E
Please sign in so that we can notify you about a reply
Product Features
- 802.11ax (Wi-Fi 6)
The IEEE 802.11ax emerging standard, also known as High-Efficiency-Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It will deliver a better experience in typical environments and more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. 802.11ax is designed to use both the 2.4-Ghz and 5-GHz bands, unlike the 802.11ac standard. - Uplink/downlink OFDMA
OFDMA-based scheduling splits the bandwidth into smaller chunks called Resource Units (RUs), which can be allocated to individual clients in both the downlink and uplink directions to reduce overhead and latency. - MU-MIMO technology
Supporting four spatial streams, MU-MIMO enables access points to split spatial streams between client devices, to maximize throughput. - BSS coloring
Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the Access Points (APs) and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions. - Target wake time
A power savings mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the AP. This offers significant energy savings for battery-operated devices, up to 3x to 4x compared to 802.11n and 802.11ac. - Cisco Mobility Express
Mobility Express is designed for networks of all sizes, including small and medium-sized businesses and distributed enterprises. It provides industry-leading wireless LAN technology without the need for a physical controller or additional licenses. - Multigigabit Ethernet support
Provides uplink speeds of 2.5 Gbps, in addition to 100 Mbps and 1 Gbps. All speeds are supported on Category 5e cabling for an industry first, as well as 10GBASE-T (IEEE 802.3bz) cabling. - Bluetooth 5.0
Integrated Bluetooth Low Energy (BLE) 5.0 radio to enable IoT use cases such as location tracking and wayfinding.
Special Features
- Wi-Fi 6 certifiable
- Three radios: 2.4 GHz (4x4), 5 GHz (4x4), and BLE
- OFDMA and MU-MIMO
- Multigigabit support
- External antenna
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 20.3 cm |
| Depth | 20.3 cm |
| Height | 4.3 cm |
| Weight | 1.1 kg |
| Localisation | Belgium, Jordan, Lebanon, Qatar, Albania, Bulgaria, Czech Republic, Estonia, Lithuania, Mongolia, Iceland, Romania, Sri Lanka, Luxembourg, Hungary, Cyprus, Iraq, Trinidad, Jamaica, Algeria, Liechtenstein, Gibraltar, Malta, Morocco, Monaco, Croatia, Macedonia, Slovakia, Slovenia, Latvia, Libya, Mauritius, Austria, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Poland, Portugal, Spain, Sweden, Switzerland, United Kingdom, Greece, Turkey, Ireland, Bahamas, Serbia, Montenegro, Bosnia and Herzegovina |
| Processor / Memory / Storage | Processor / Memory / Storage |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Network / Transport Protocol | IPSec, IPv6 |
| Remote Management Protocol | NETCONF, RESTCONF |
| Frequency Band | 2.4 GHz, 5 GHz |
| Status Indicators | Status |
| Features | DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Pre-Shared Key (PSK), Dynamic QoS, guest access, 4x4 MU-MIMO technology, secure boot, 8x8 MU-MIMO technology, Target Wait Time (TWT), image signing, Cisco Trust Anchor module |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, WPA, WPA2, FIPS, EAP-SIM, EAP-FAST |
| Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Internet of Things (IoT) | Internet of Things (IoT) |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1/2.5GBase-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0 ¦ 4 x aerial |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low profile bracket, ceiling grid clip |
| Compliant Standards | CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, EN 62209-1, SRRC, EN 300 328, CNS 13438, EN 50385, EN 62209-2, EN 60601-1-1, EN 301 489-1, LP0002, RSS-247, KN32, AS/NZS CISPR 32 Class B, USGv6, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, EMI Class B, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN |
| Power | Power |
| Power Over Ethernet (PoE) Supported | UPOE |
| Software / System Requirements | Software / System Requirements |
| Software Included | CAPWAP Software Image |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Cisco - C9115AXE-E
More Details
Product Code
677RM90
EAN Code
0889728212014
Manufacturer
Cisco
