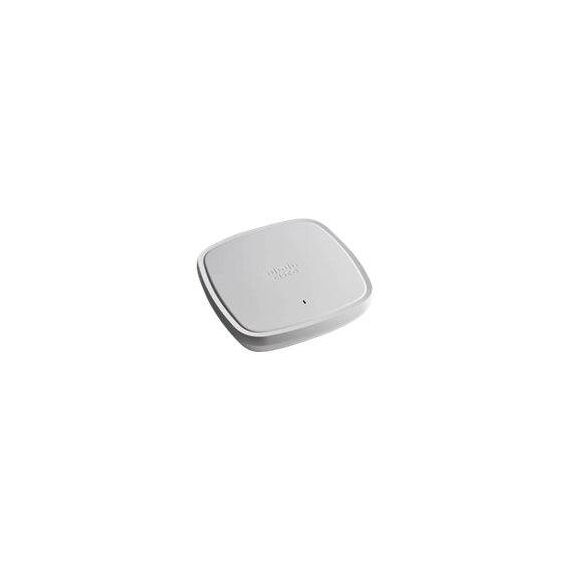

Cisco Catalyst 9120AXI / Radio access point / Bluetooth 5.0 / Bluetooth, Wi-Fi 6 / 2.4 GHz, 5 GHz | C9120AXI-A
Please sign in so that we can notify you about a reply
Product Features
- MU-MIMO technology
Supporting four spatial streams, MU-MIMO enables access points to split spatial streams between client devices, to maximize throughput. - Target wake time
The power savings mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point. This offers significant energy savings for battery-operated devices. - Intelligent Capture
Intelligent Capture probes the network and provides Cisco DNA Center with deep analysis. The software can track over 240 anomalies and instantaneously review all packets on demand, emulating the onsite network administrator. Intelligent Capture allows for more informed decisions on your wireless networks.
Special Features
- Wi-Fi 6 certifiable
- OFDMA and MU-MIMO
- Multigigabit support
- Internal, external antenna and also external antenna for professional installations
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 21.6 cm |
| Depth | 21.6 cm |
| Height | 4.3 cm |
| Weight | 1.3 kg |
| Processor / Memory / Storage | Processor / Memory / Storage |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, 802.11ax |
| Spread Spectrum Method | OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Status Indicators | Status |
| Features | Quality of Service (QoS), LLDP support, Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), secure boot, 4x4:4 MU-MIMO technology, Target Wait Time (TWT), image signing, Cisco Trust Anchor module |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, WPA, WPA2, EAP-SIM, EAP-FAST |
| Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | Aerial |
| Antenna | Internal |
| Directivity | Omni-directional |
| Internet of Things (IoT) | Internet of Things (IoT) |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1/2.5GBase-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low profile bracket, ceiling grid clip |
| Compliant Standards | CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, EN 60601, VCCI V-3, EN 62209-1, SRRC, EN 300 328, EN 50385, EN 62209-2, EN 301 489-1, LP0002, RSS-247, KN32, KN35, AS/NZS CISPR 32 Class B, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, VCCI-CISPR 32:2016, CNS, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, KN 301 489-17 |
| Power | Power |
| Power Over Ethernet (PoE) Supported | UPOE |
| Software / System Requirements | Software / System Requirements |
| Software Included | CAPWAP Software Image |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance hardware replacement - lifetime - response time: 10 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Cisco - C9120AXI-A
More Details
Product Code
677RY31
EAN Code
0889728227636
Manufacturer
Cisco
