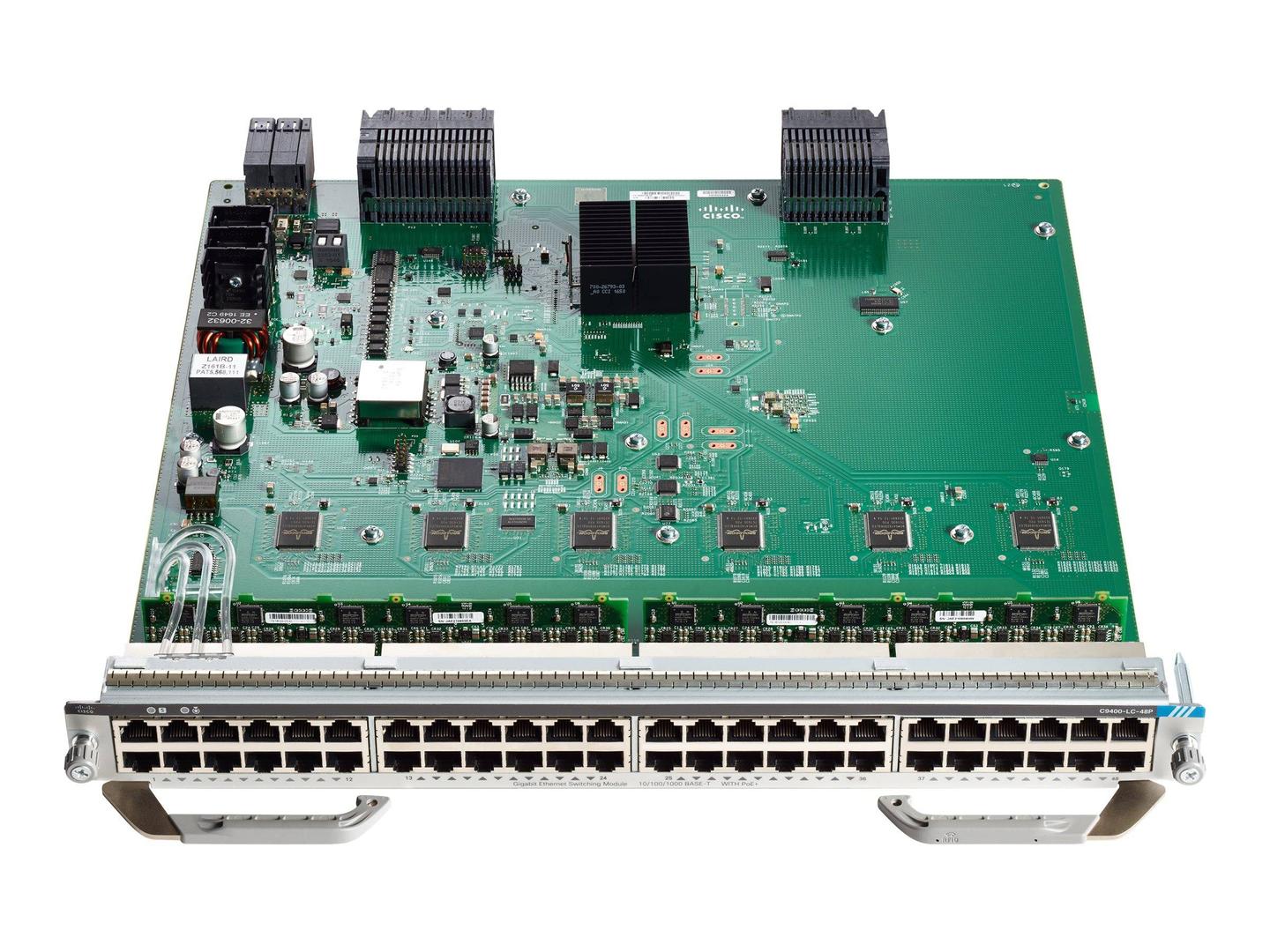

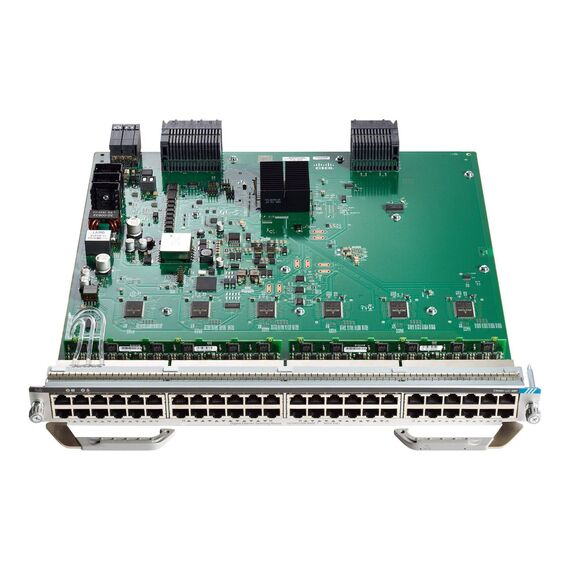

Cisco Catalyst 9400 Series Line Card / Switch / 48 x 10/100/1000 / plug-in module / PoE+ | C9400-LC-48P=
Please sign in so that we can notify you about a reply
Special Features
- UPoE is enabled, capable of up to 60W on all the ports in the line card
- Energy Efficient Ethernet 802.3az
- IEEE 802.3af/at and Cisco pre-standard PoE
- IEEE 802.1AE and Cisco TrustSec capability in hardware
Product Specification
| Device Type | Switch - 48 ports |
| Enclosure Type | Plug-in module |
| Ports | 48 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| Jumbo Frame Support | 9198 bytes |
| Features | MACsec support |
| Compliant Standards | IEEE 802.3af, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3az |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ |
| Power | Power |
| Power Consumption Operational | 65 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 771,720 hours |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, AS/NZS 60950-1, ICES-003 Class A, Laser Class 1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 300 386 V1.6.1, EN 55022 Class A, IEEE 1588, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements | Software / System Requirements |
| OS Required | Cisco IOS XE 16.8.1 or later |
| Dimensions & Weight | Dimensions & Weight |
| Width | 4.06 cm |
| Depth | 37.9 cm |
| Height | 37 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 95% (non-condensing) |
Features - Cisco - C9400-LC-48P=
More Details
Product Code
677RE56
EAN Code
0889728057264
Manufacturer
Cisco
