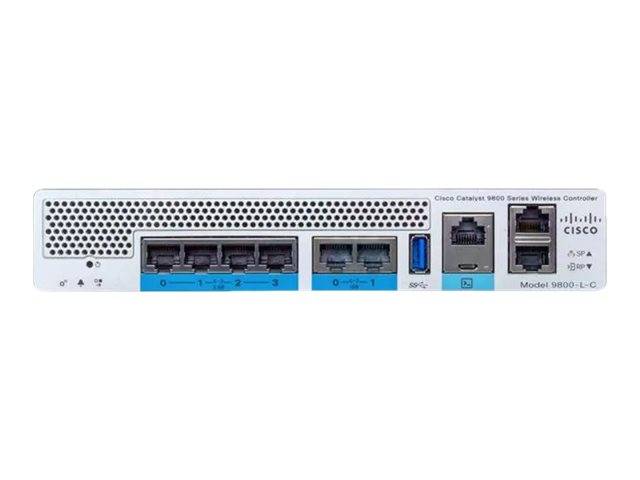

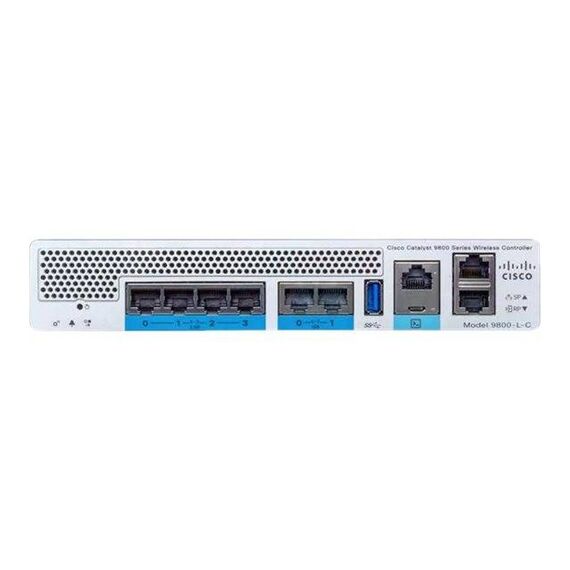

Cisco Catalyst 9800-L Wireless Controller / Network management device / 10 GigE / Wi-Fi 6 / 1U / rack-mountable | C9800-L-C-K9
Please sign in so that we can notify you about a reply
Special Features
- High availability and seamless software updates, enabled by hot patching, keep your clients and services always on in planned and unplanned events
- The controller comes with built-in security: secure boot, runtime defenses, image signing, integrity verification, and hardware authenticity
- Built on a modular operating system, the 9800-80 features open and programmable APIs that enable automation of day-0 to day-N network operations
- Model-driven streaming telemetry provides deep insights into the health of your network and clients
Product Specification
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Width | 21.59 cm |
| Depth | 23.01 cm |
| Height | 4.02 cm |
| Weight | 1.79 kg |
| Networking | Networking |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1 |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP, Bonjour |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Performance | Throughput: 5 Gbps |
| Capacity | Maximum number of access points: 250 ¦ Maximum number of clients: 5000 ¦ Wireless LANs: 4096 ¦ VLANs supported: 4096 |
| Status Indicators | Power, system, link/activity |
| Features | VLAN support, Syslog support, IPv6 support, SNTP support, Wi-Fi Multimedia (WMM) support, RADIUS support, CAPWAP support, Internet Control Message Protocol (ICMP), User Datagram Protocol (UDP), Datagram Transport Layer Security (DTLS) |
| Encryption Algorithm | Triple DES, AES, IKE, SSL, TLS, WPA, WPA2, PKI, ESP, CRL, CCM, CCMP |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.1AX, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1, IEEE 802.11ax |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x console - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB - Type A ¦ 1 x mini-USB - Type B ¦ 1 x redundancy ¦ 4 x 10Gb Ethernet - RJ-45 ¦ 4 x 1/2.5GBase-T - RJ-45 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | VCCI, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, FCC CFR47 Part 15, AS/NZS CISPR 22, CNS 13438, EN 300 386, KN32, UL/CSA60950-1, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032, IEC/EN 60950-1, CAN/CSA-C22.2 No. 60950-1, IEEE 802.3, IEEE 802.1x |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 86.9 Watt |
| Power Provided | 110 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Provided | Cisco IOS XE |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
Features - Cisco - C9800-L-C-K9
More Details
Product Code
677SG28
EAN Code
0889728225472
Manufacturer
Cisco
