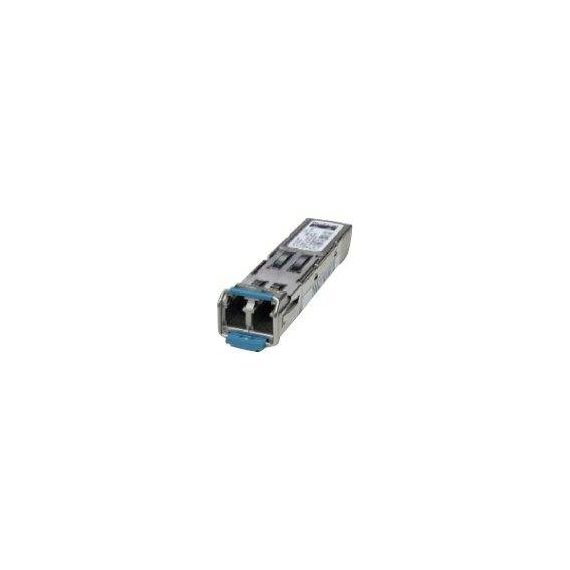

Cisco / SFP+ transceiver module / 10 GigE / 10GBase-BX-U / LC/PC single-mode / up to 10 km / 1270 (TX) / 1330 (RX) nm / for Catalyst ESS9300 Embedded Series | SFP-10G-BXU-I=
Please sign in so that we can notify you about a reply
Special Features
- Industry's smallest 10G form factor for greatest density per chassis
- Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch (no need to power down if installing or replacing)
- Supports "pay-as-you-populate" model for investment protection and ease of technology migration
- Digital optical monitoring capability for strong diagnostic capabilities
- Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
- Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco
Product Specification
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-BX-U |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1270 (TX) / 1330 (RX) nm |
| Max Transfer Distance | 10 km |
| Compliant Standards | IEEE 802.3ae |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10GBase-BX-U - LC/PC single-mode x 2 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1.3 cm |
| Depth | 5.7 cm |
| Height | 0.9 cm |
| Weight | 75 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Compatibility Information | Compatibility Information |
| Designed For | Cisco Catalyst ESS9300 Embedded Series |
Features - Cisco - SFP-10G-BXU-I=
More Details
Product Code
6779S48
EAN Code
0882658643880
Manufacturer
Cisco
