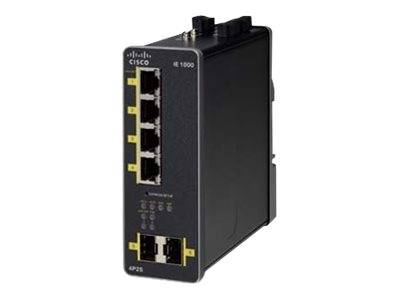

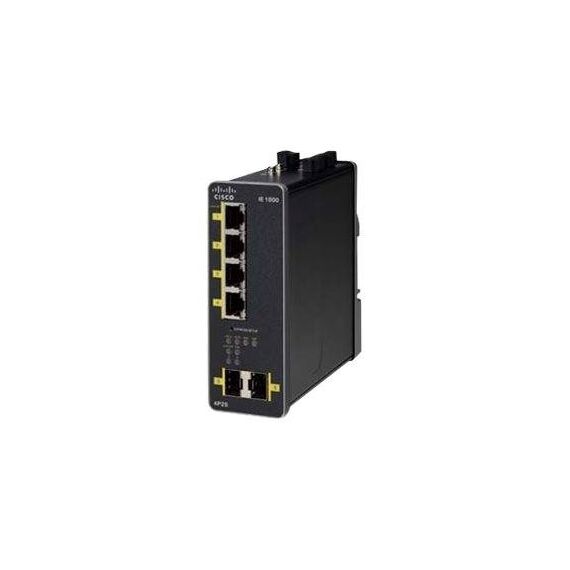

Cisco Industrial Ethernet 1000 Series / Switch / Managed / 4 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink) / DIN rail mountable / PoE+ / DC power | IE-1000-4P2S-LM
Please sign in so that we can notify you about a reply
Special Features
- Easy integration: Zero-touch IP discovery or Dynamic Host Configuration Protocol (DHCP)IP addressing and simple web GUI-based management
- Fast startup time: Starts 30 seconds from cold boot
- Manageability: Web GUI interface, and diagnostics and analysis options through Simple Network Management Protocol (SNMP) and syslog
- Security: secure access; port-security
- Minimize data load: VLAN aware, Internet Group Management Protocol (IGMP) and DHCP snooping to filter unwanted data
- Lightly-managed: Spanning-tree protocol (STP), Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol aware
- Gigabit uplink: Two fiber-optic SFP based. uplink for up to 50 miles (80 kilometers) links
- Redundant voltage feeds, alarm relays support and DIN rail mount
- Industrial environmental compliance and certifications
Product Specification
| Device Type | Switch - 6 ports - Managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| Routing Protocol | IGMPv2, IGMP |
| Remote Management Protocol | SNMP 2, SNMP, RMON, SNMP 3, HTTP, SSH |
| Authentication Method | Secure Shell (SSH), RADIUS |
| Features | DHCP support, BOOTP support, IGMP snooping, Syslog support, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, DHCP server, static IP mode, LLDP support, Port Security, Management Information Base (MIB), Class of Service (CoS), DiffServ Code Point (DSCP) support, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Management Information Base (MIB) II |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| RAM | 128 MB |
| Flash Memory | 160 MB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP |
| Power | Power |
| Voltage Required | DC 48 - 54 V |
| Power Consumption Operational | 140.4 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 374,052 hours |
| Compliant Standards | CISPR 22 Class A, EN55022, NOM, CB, EMC, ICES-003 Class A, RoHS, IEC 60068-2-30, KCC, WEEE, IEC 60068-2-27, IEC 60068-2-6, ANATEL, EN 61131-2, EN 61326-1, IEC 60068-2-64, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, CEM, EMI, IP30, IEC 60068-2-56, VCCI Class A, EN 50581, EAC, China RoHS, RCM, AS/NZS CISPR22:2004 Class A, NOM-001-SCFI-1993, CISPR 11 class A, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, IEC60950-1, IEC 60068-2-3, FCC CFR47 Part 15 A, UL/CSA60950-1, UL/CSA/IEC/EN 61010-2-201, EN 55016-1-1 Class A, EN 55016-1-4 Class A, EN 55016-2-3 Class A, AS/NZS CISPR 24, NAL, IEC/EN/EN61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-9, IEC/EN 61000-4-29, IEC 60068-2-47, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 13.4 cm |
| Depth | 4.57 cm |
| Height | 12.7 cm |
| Weight | 770 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Cisco - IE-1000-4P2S-LM
More Details
Product Code
677GY17
EAN Code
0882658930317
Manufacturer
Cisco
