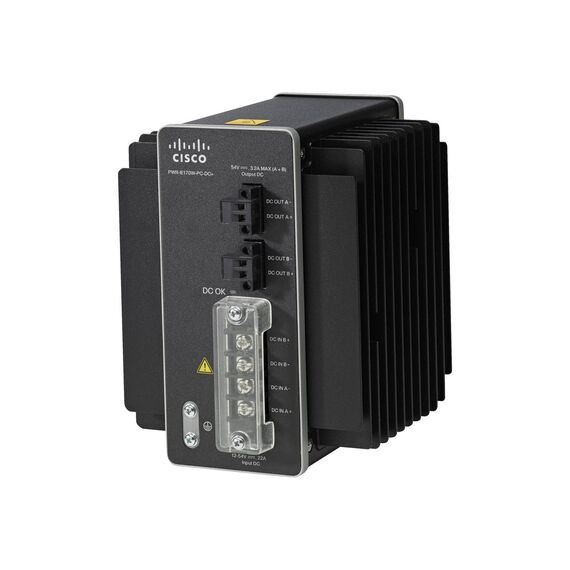

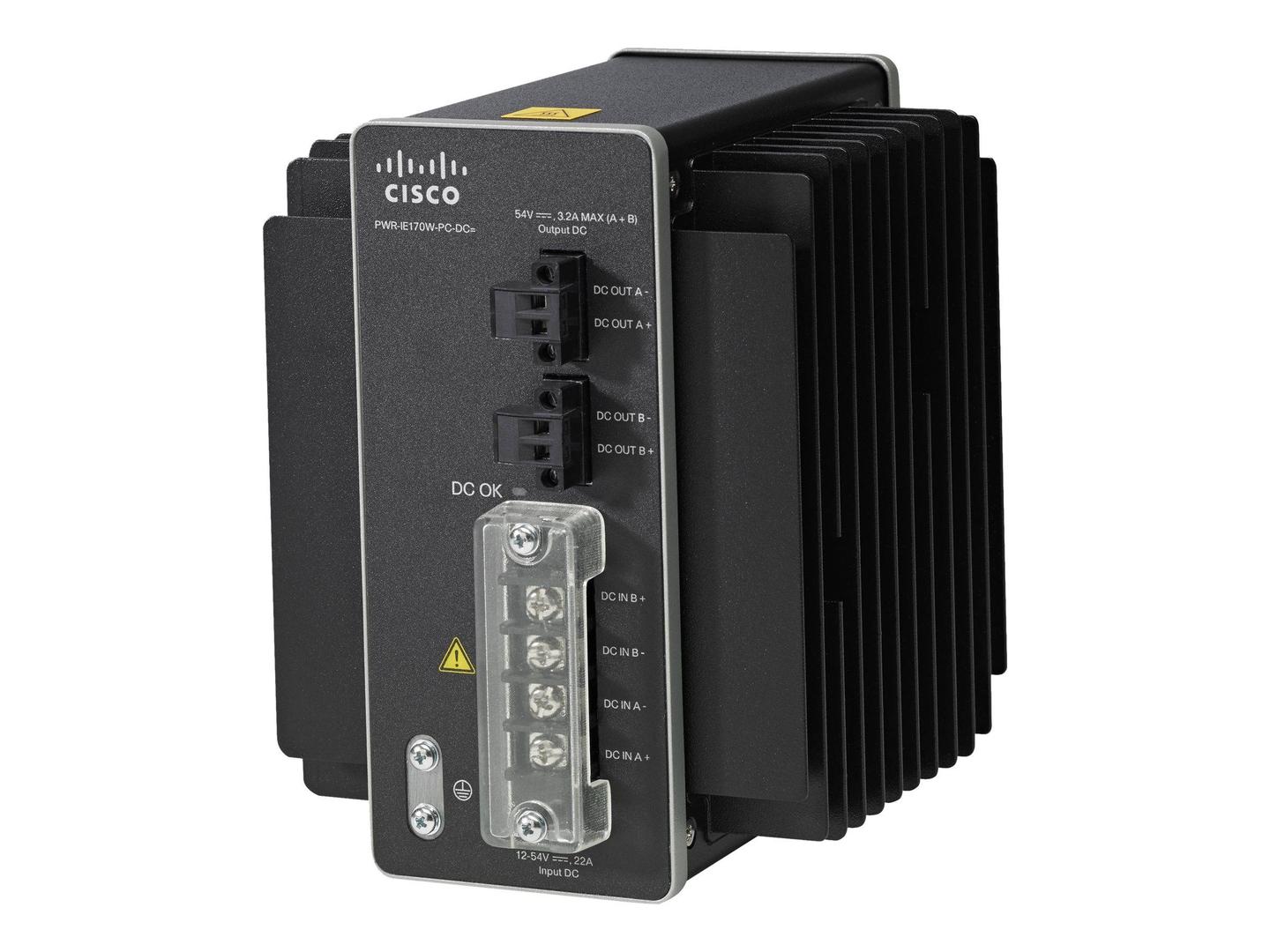

Cisco DC-DC Power Module for POE solution / Power converter (DIN rail mountable) / 10.8 / 60 V / 170 Watt / for Industrial Ethernet 4000 Series | PWR-IE170W-PC-DC=
Please sign in so that we can notify you about a reply
Special Features
- DC-DC Power Module for PoE solution
- 18-60 VDC/4.3 amp input
- 54 VDC/1.2 amp output
- DIN-rail mount
Product Specification
| Device Type | Power converter - DIN rail mountable |
| Power Device | Power Device |
| Input Voltage | 10.8 - 60 V |
| Output Voltage | 54 V |
| Max Electric Current | 3.15 A |
| Power Capacity | 170 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15.06 cm |
| Depth | 11.35 cm |
| Height | 14.58 cm |
| Weight | 1.67 kg |
| Compatibility Information | Compatibility Information |
| Designed For | Cisco Industrial Ethernet 4000 Series |
Features - Cisco - PWR-IE170W-PC-DC=
More Details
Product Code
677CD08
EAN Code
0882658731372
Manufacturer
Cisco
