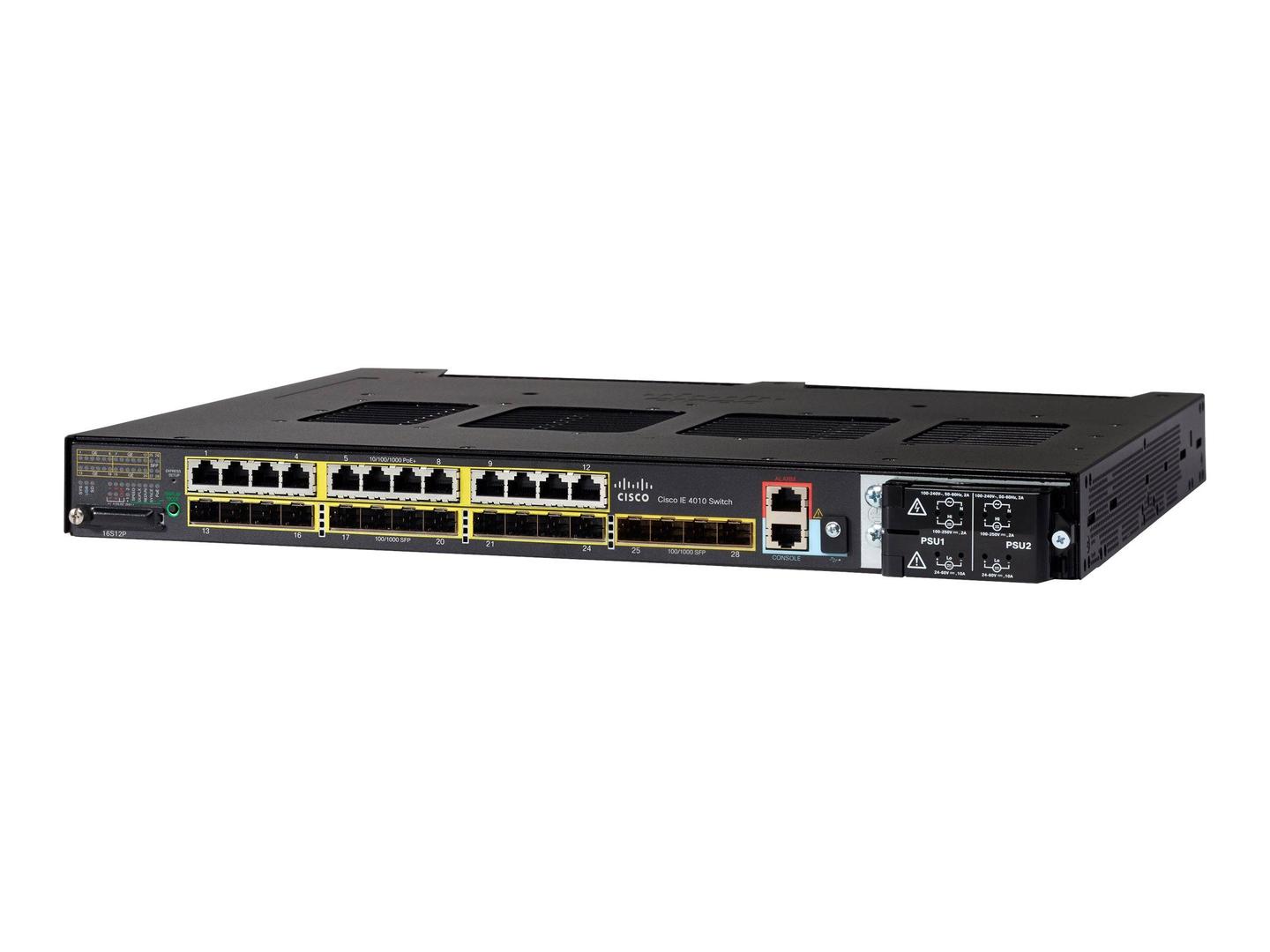

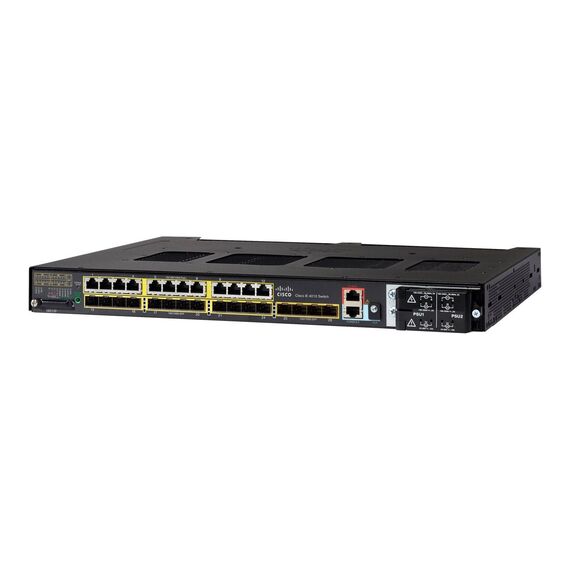

Cisco Industrial Ethernet 4010 Series / Switch / Managed / 12 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink) + 12 x 10/100/1000/SFP / DIN rail mountable / TAA Compliant | IE-4010-16S12P=
Please sign in so that we can notify you about a reply
Special Features
- Robust industrial design
- User-friendly GUI device manager
- Swap drive - zero- config replacement
- High-density industrial Power over Ethernet (PoE/PoE+)
- Complete Gigabit Ethernet switch
Product Specification
| Device Type | Switch - 28 ports - Managed |
| Enclosure Type | DIN rail mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 12 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink) + 12 x 10/100/1000/SFP |
| Performance | Forwarding bandwidth: 28 Gbps ¦ Switching bandwidth: 56 Gbps |
| Capacity | Virtual interfaces (VLANs): 1000 ¦ IGMP groups: 1000 ¦ NAT translations: 128 |
| MAC Address Table Size | 16K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, SNMP, RMON, Telnet, SNMP 3, HTTP, SSH, CLI, SCP |
| Encryption Algorithm | FIPS 140-2 |
| Authentication Method | RADIUS, TACACS |
| Features | NAT support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), LLDP support, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dynamic ARP protection, Class of Service (CoS), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, Storm Control, PROFINET v2, EtherNet/IP CIP Messaging, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP), Bridge protocol data unit (BPDU), CIP Sync (IEEE 1588) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 1588v2, IEEE 1613 |
| RAM | 1 GB |
| Flash Memory | 128 MB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 12 x 1000Base-T RJ-45 ¦ 4 x SFP uplink ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B ¦ 12 x 1000Base-TX SFP |
| Expansion Slots | 1 (total) / 0 (free) x SD Memory Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | 1 GB SD card |
| MTBF | 415,160 hours |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FIPS 140-2, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, NOM-019-SCFI-1998, VCCI Class A, KN22, China RoHS, EN 50121-3-2, EN 61326, IEC 61163, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEC 60068-2-3, EN 61373, ISO 9223 |
| TAA Compliant | Yes |
| Software / System Requirements | Software / System Requirements |
| Software Included | Cisco IOS LAN Base |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.5 cm |
| Depth | 35.6 cm |
| Height | 4.45 cm |
| Weight | 5.78 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - 5 years - response time: 10 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
Features - Cisco - IE-4010-16S12P=
More Details
Product Code
677QL98
EAN Code
0882658945540
Manufacturer
Cisco
