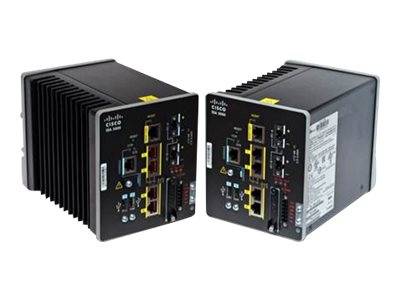

Cisco Industrial Security Appliance 3000 / Switch / L3 / Managed / 2 x 10/100/1000 + 2 x Gigabit SFP / DIN rail mountable / DC power / TAA Compliant | ISA-3000-2C2F-K9
Please sign in so that we can notify you about a reply
Special Features
- Robust industrial design
- Traffic continuity/protection
- Extensible access control
- Uncompromising threat detection
- Remote access enablement/controls
Product Specification
| Device Type | Switch - 4 ports - L3 - Managed |
| Enclosure Type | DIN rail mountable |
| Ports | 2 x 10/100/1000 + 2 x Gigabit SFP |
| Capacity | IPSec tunnels: 5.25 ¦ NAT translations: 128 |
| Routing Protocol | IGMPv2, IGMPv3 |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), TACACS+ |
| Features | Flow control, firewall protection, IP-routing, DHCP support, NAT support, BOOTP support, ARP support, DiffServ support, IPv6 support, full duplex mode, surge protection, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), fanless, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), static routing, 802.1x authentication, Precision Time Protocol (PTP), MACsec support, shock-resistant, vibration-proof, VLAN Trunking Protocol (VTP), Internet Control Message Protocol (ICMP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2 |
| Processor | X Intel |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Built-in Devices | 64 GB mSATA |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45 ¦ 1 x console (mini-USB) ¦ 1 x management RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Voltage Required | DC 12/24/48 V |
| Power Consumption Operational | 24 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | 1 GB SD card |
| MTBF | 376,580 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, CSA C22.2, EN 61000-6-2, RoHS, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, EN 61131-2, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-14, MIL-STD-810, IEC 60068-2-52, IEC 60068-2-60, VCCI Class A, KN22, KN24, CNS 13438(95) Class A, China RoHS, EN 61326, AS/NZS CISPR22:2004 Class A, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, EN 60945, IEC/UL/CSA/EN 60950-1, ISO 9223, NOM-019, EN 55022 Class A, EN 60079-0:2009, EN 60079-15:2010, FCC CFR47 Part 15 A |
| TAA Compliant | Yes |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.2 cm |
| Depth | 16 cm |
| Height | 13 cm |
| Weight | 1.9 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
Features - Cisco - ISA-3000-2C2F-K9
More Details
Product Code
677GJ66
EAN Code
0882658858130
Manufacturer
Cisco
