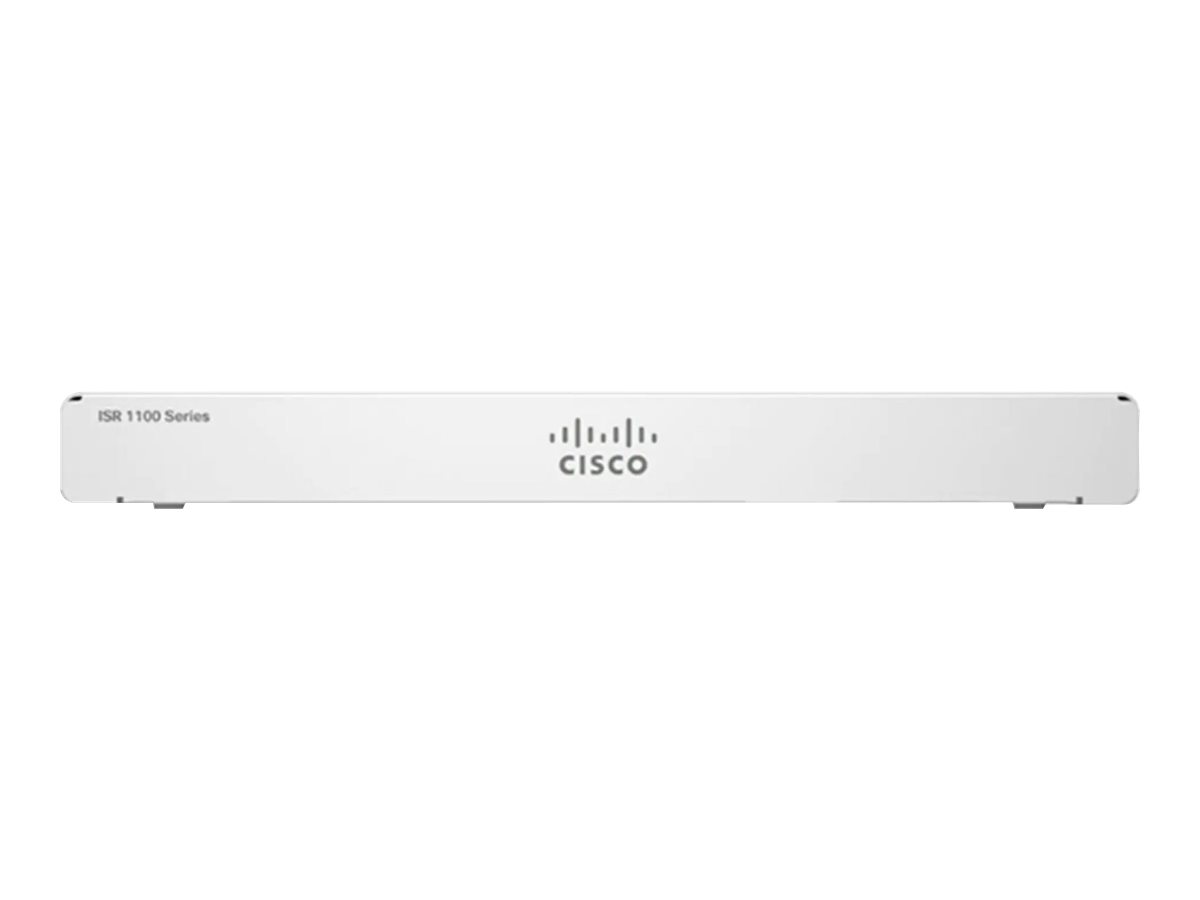

Cisco Integrated Services Router 1100X-6G - Router 6-port switch - 1GbE - WAN ports: 6 | ISR1100X-6G
Please sign in so that we can notify you about a reply
Product Features
- Internet-based networking
Manage and operate your WAN from a single dashboard. Provide highly secure, direct Internet access at the branch and optimize the user experience with Cisco SD-WAN. - Integrated enterprise-class security
Gain enterprise-class security and a highly secure WAN. Cisco Umbrella, Encrypted Traffic Analytics, and advanced threat defense provide high-performance encryption, VPN, firewall, and URL filtering. - Easy management and deployment
Use one operating system for consistency and visibility across all branch offices and remote sites.
Special Fetures
- Next-generation connectivity
- Integrated enterprise-class security
- Easy management and deployment
Product Specification
| Device Type | Router - 6-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, NTP, IPSec, PPPoE, DHCP, DNS, PAP, IPv4, IPv6 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP, RMON, SSH, CLI, SCP, NTP, DHCP, TACACS+, RADIUS, OMP |
| Encryption Algorithm | RSA, MD5, AES, IKE, TLS, SHA-1, PKI, 256-bit AES, SHA-2, DTLS, 512-bit SHA, 384-bit SHA, ECDSA 256-bit, ECDSA 384-bit, SHA-256, HMAC |
| Authentication Method | Secure Shell (SSH), RADIUS, PAP, CHAP, TACACS+ |
| Features | NAT support, PAT support, Syslog support, Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, DHCP relay, UEFI support, DHCP client, Virtual Routing and Forwarding (VRF), Class of Service (CoS), IPFIX, Cisco Discovery Protocol, Authentication, Authorization and Accounting (AAA), DNS client, Layer 3 VPN (L3VPN) support, Integrated Routing and Bridging (IRB), Protocol Independent Multicast (PIM), Network-Based Application Recognition (NBAR), Point-to-Point Protocol (PPP), DDoS Protection, Performance Routing (PfR), SD-WAN support |
| Compliant Standards | IEEE 802.1Q, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, GB 4943, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, NOM-019-SCFI-1998, KN22, KN24, AS/NZS CISPR 22, CNS 13438, AS/NZS 60950-1:2011, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, TCVN 7189, TCVN 7317, IEC 62368 |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 16 MB |
| Built-in Devices | 8GB eMMC |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45/SFP ¦ USB 3.0: 1 x ¦ Console: 1 x RJ-45 |
| Power | |
| Power Device | External power adapter - 30 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions & Weight | |
| Width | 25.9 cm |
| Depth | 17.8 cm |
| Height | 2.79 cm |
| Weight | 1.08 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 1 year - response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - Cisco - ISR1100X-6G
More Details
Product Code
CI82074
EAN Code
0889728322966
Manufacturer
Cisco
