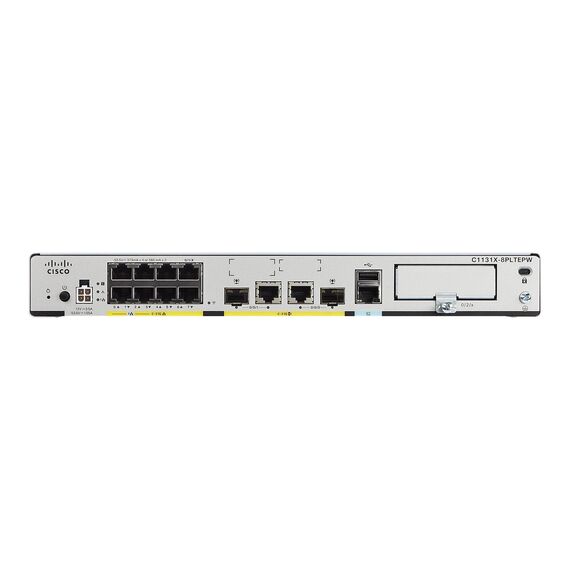

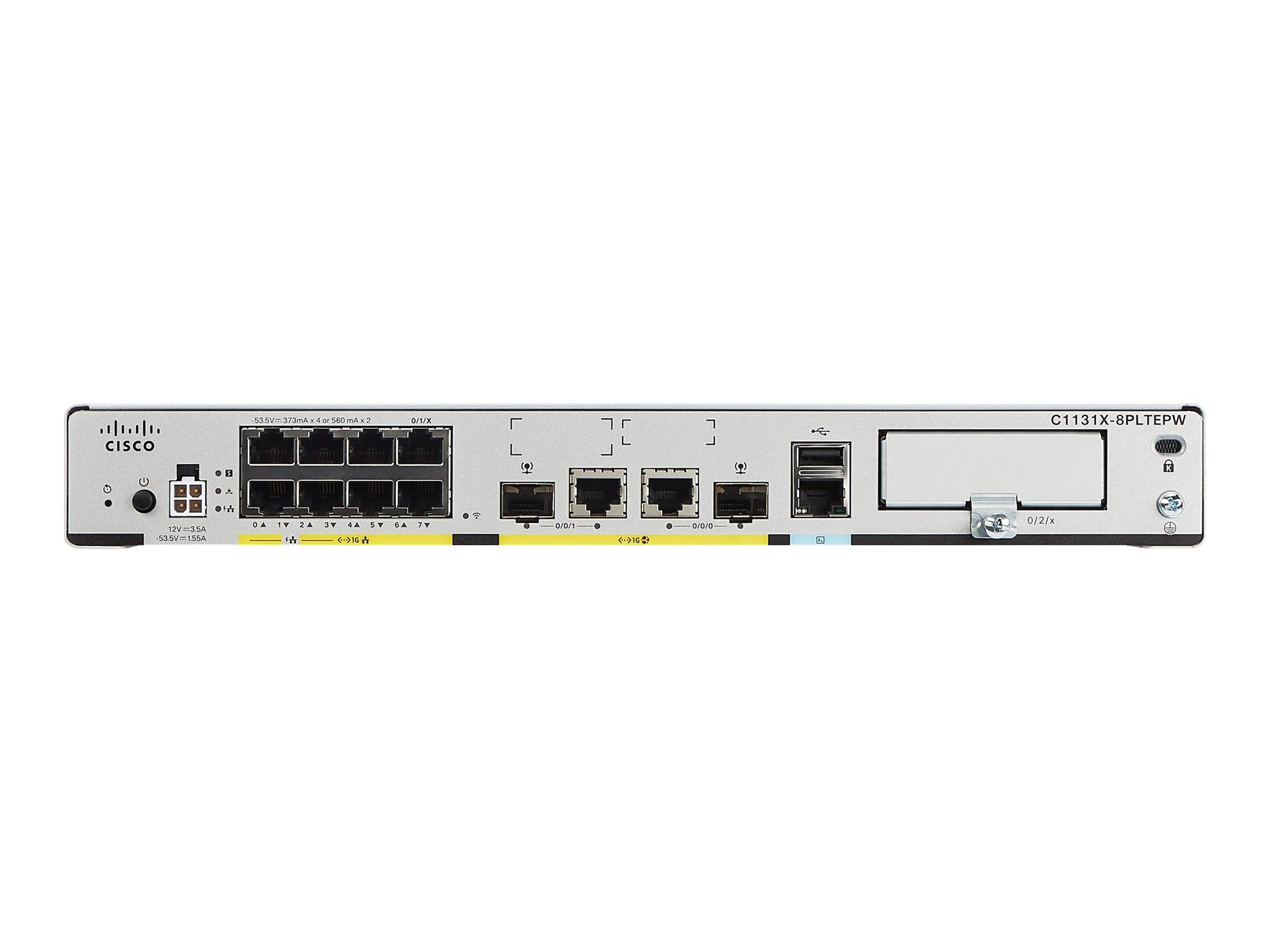

Cisco Integrated Services Router 1131X / Router 8-port switch / 1GbE / WAN ports: 2 / Wi-Fi 6 | C1131X-8PLTEPWE
Please sign in so that we can notify you about a reply
Product Features
- Next-generation connectivity
Get increased mobility and next-generation WAN and LAN options. Access Ethernet, DSL, 5G, and 802.11ax Wi-Fi. The 1000 series is ideal for use as customer premises equipment (CPE). - Automation deployment
Automate deployment, configuration, and management of the 1000 series with Cisco vManage. A centralized, highly visual dashboard simplifies and extends controls across the SD-WAN fabric and to the cloud edge. - Integrated enterprise-class security
Gain enterprise-class security. Cisco Umbrella, Encrypted Traffic Analytics, and advanced threat defense provide high-performance encryption, VPN, firewall, and URL filtering. Cisco Trust Anchor technology protects your network firmware from threats. - Multicloud capabilities
The 1000 series are the first fixed-configuration routers with the trusted Cisco IOS XE Software. Cisco IOS XE Software is optimized for cloud connectivity, enhanced visibility, and full-stack security, with robust multicloud capabilities.
Special Features
- Next-generation connectivity
- Automation deployment
- Integrated enterprise-class security
- Multicloud capabilities
Product Specification
| Device Type | Router - 8-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Performance | SD-WAN IPsec throughput (1400 bytes, controller mode): 1889 Mbps SD-WAN IPsec throughput (IMIX, controller mode): 465 Mbps IPv4 forwarding throughput (IMIX): 1648 Mbps IPsec throughput (multi tunnel, IMIX): 470 Mbps Maximum encryption throughput (single tunnel, IMIX): 650 Mbps |
| Capacity | SD-WAN overlay tunnels scale: 200 IPsec IPv4 tunnels: 100 ACLs per system: 4000 Access Control Entries (ACEs) per system (IPv4): 10000 IPv4 routes: 280000 IPv6 routes: 260000 NAT sessions: 100000 Firewall sessions: 20000 Virtual Routing and Forwarding (VRF) instances: 1000 |
| Network / Transport Protocol | IPSec, IPv4, IPv6 |
| Remote Management Protocol | HTTP, HTTPS, CLI |
| Encryption Algorithm | AES, WPA2 |
| Authentication Method | RADIUS |
| Features | 2x2:2 MU-MIMO technology, AAA, TWT, BSS Coloring, MRC, packet aggregation A-MPDU, packet aggregation A-MSDU, DFS, CSD, beamforming technology, fanless, QoS, reset button, security slot (Kensington security lock compatible), SMS, MIP, remote firmware upgrade, TDD, FirstNet ready |
| Compliant Standards | Wi-Fi CERTIFIED 6, IEEE 802.1x, AS/NZS CISPR 22, CISPR 22, CISPR 24, CNS 13438, CSA 60950-1, CSA 62368-1, EN 300 386, EN 301 489-1, EN 301 489-24, EN 301 489-7, EN 301 511, EN 301 908-1, EN 301 908-13, EN 301 908-2, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN 62368-1, EN55022, EN55024, FCC CFR47 Part 15, FCC CFR47 Part 22, FCC CFR47 Part 24, ICES 003, IEC 60950-1, IEC 62368-1, UL 60950, UL 62368-1, VCCI V-3, WEEE |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Built-in Devices | GPS |
| Status Indicators | Status |
| Line Properties | Line Properties |
| Line Coding Format | OFDMA |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN: 2 x 1000Base-X - SFP (mini-GBIC) WAN: 2 x 1000Base-T - RJ-45 LAN: 8 x 1000Base-T - RJ-45 USB 2.0: 1 x 4 pin USB Type A Console: 1 x RJ-45 USB: 1 x 5 pin Micro-USB Type A |
| Expansion Slots | 1 (total) / 1 (free) x Pluggable Interface Module (PIM) |
| Power | Power |
| Power Device | External power adapter - 66 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 31 Watt |
| Miscellaneous | Miscellaneous |
| Localisation | Europe, Bahrain, Botswana, Ghana, Israel, Kazakhstan, Kenya, Myanmar, Oman, Saudi Arabia, South Africa, Thailand, Uganda, United Arab Emirates |
| Software / System Requirements | Software / System Requirements |
| Software Included | Cisco Embedded Wireless Controller software image |
| Dimensions & Weight | Dimensions & Weight |
| Width | 32.3 cm |
| Depth | 22.6 cm |
| Height | 4.19 cm |
| Weight | 2.58 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance hardware replacement - 1 year - response time: 10 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
Features - Cisco - C1131X-8PLTEPWE
More Details
Product Code
CF60731
EAN Code
0889728417600
Manufacturer
Cisco
